Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

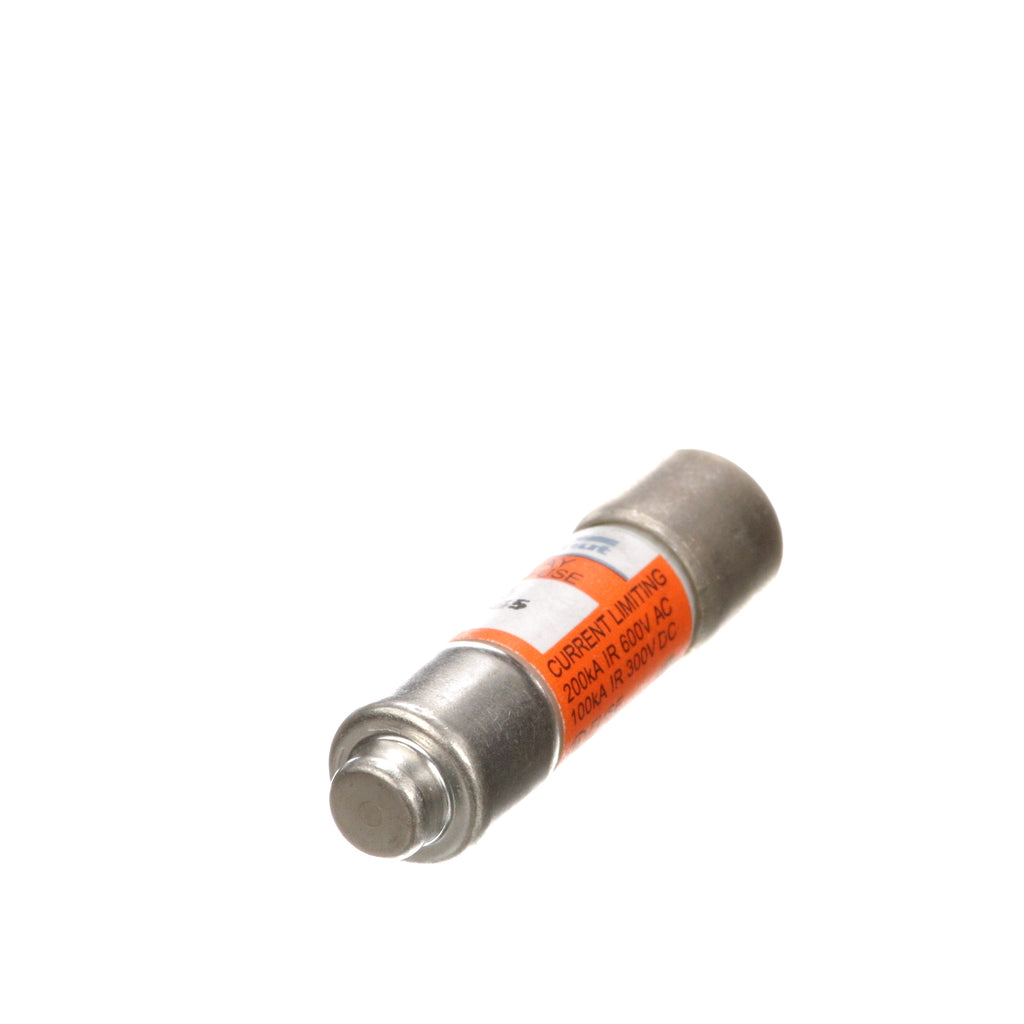

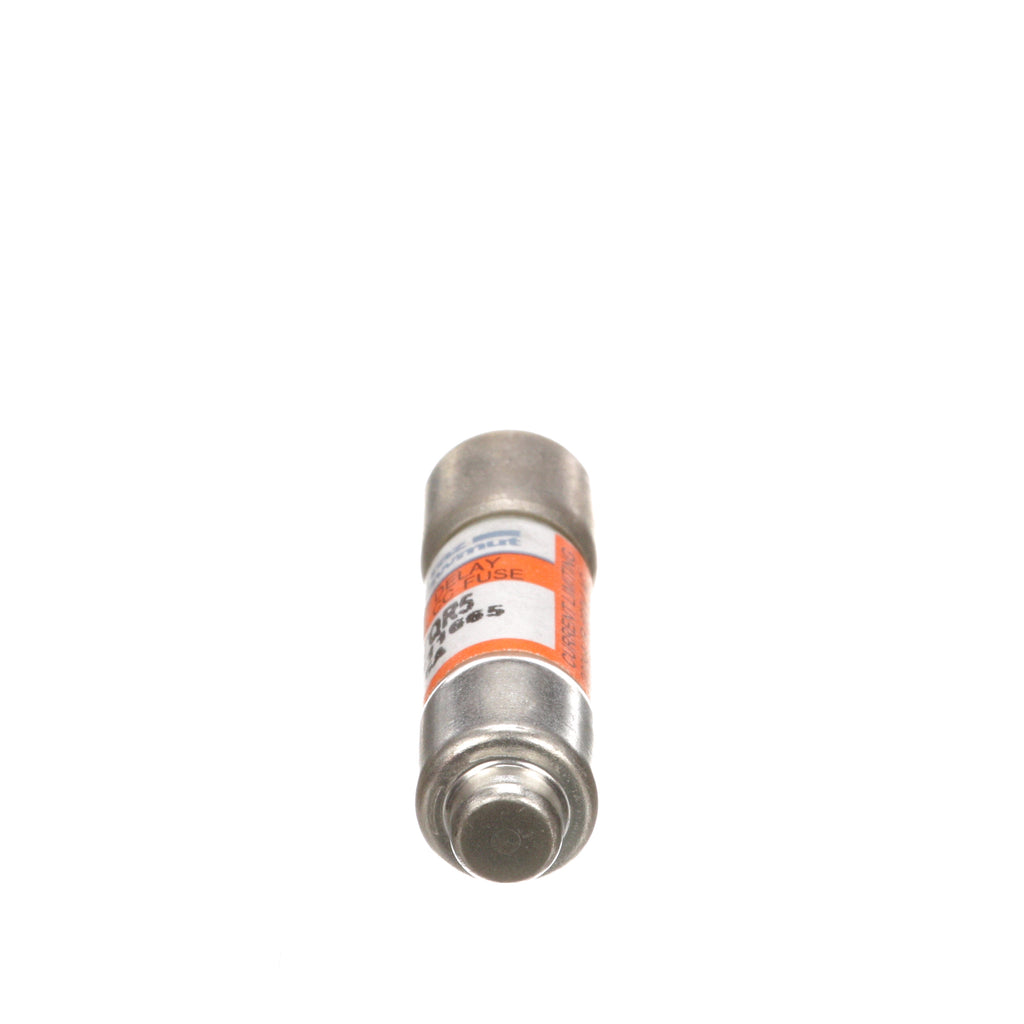

ATQR5

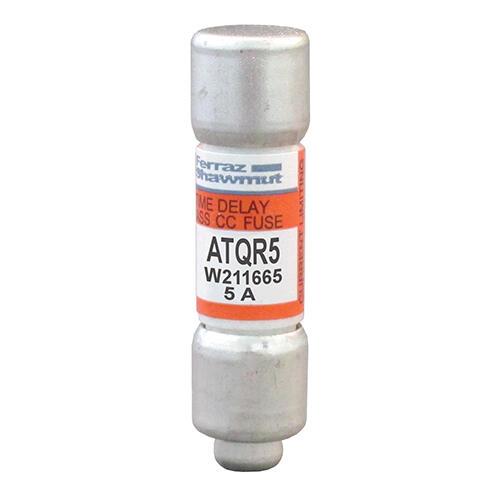

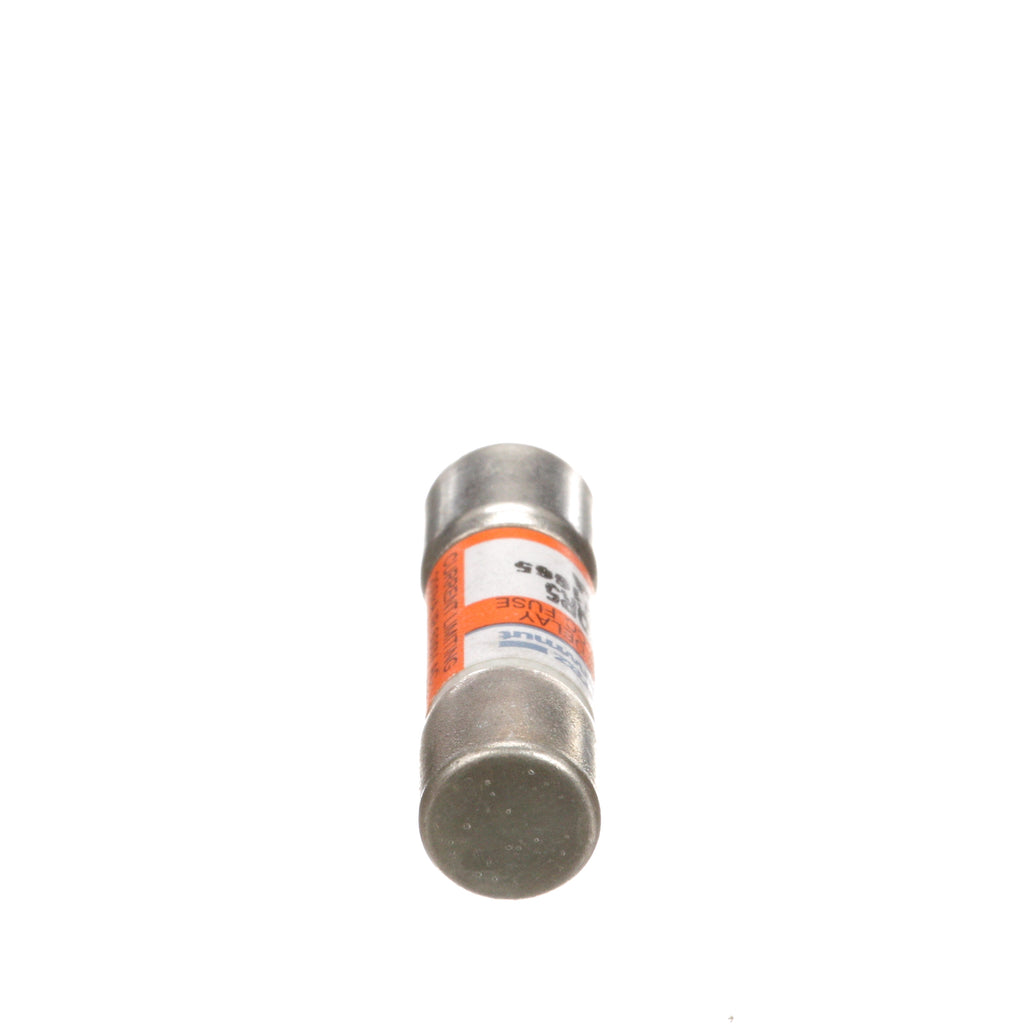

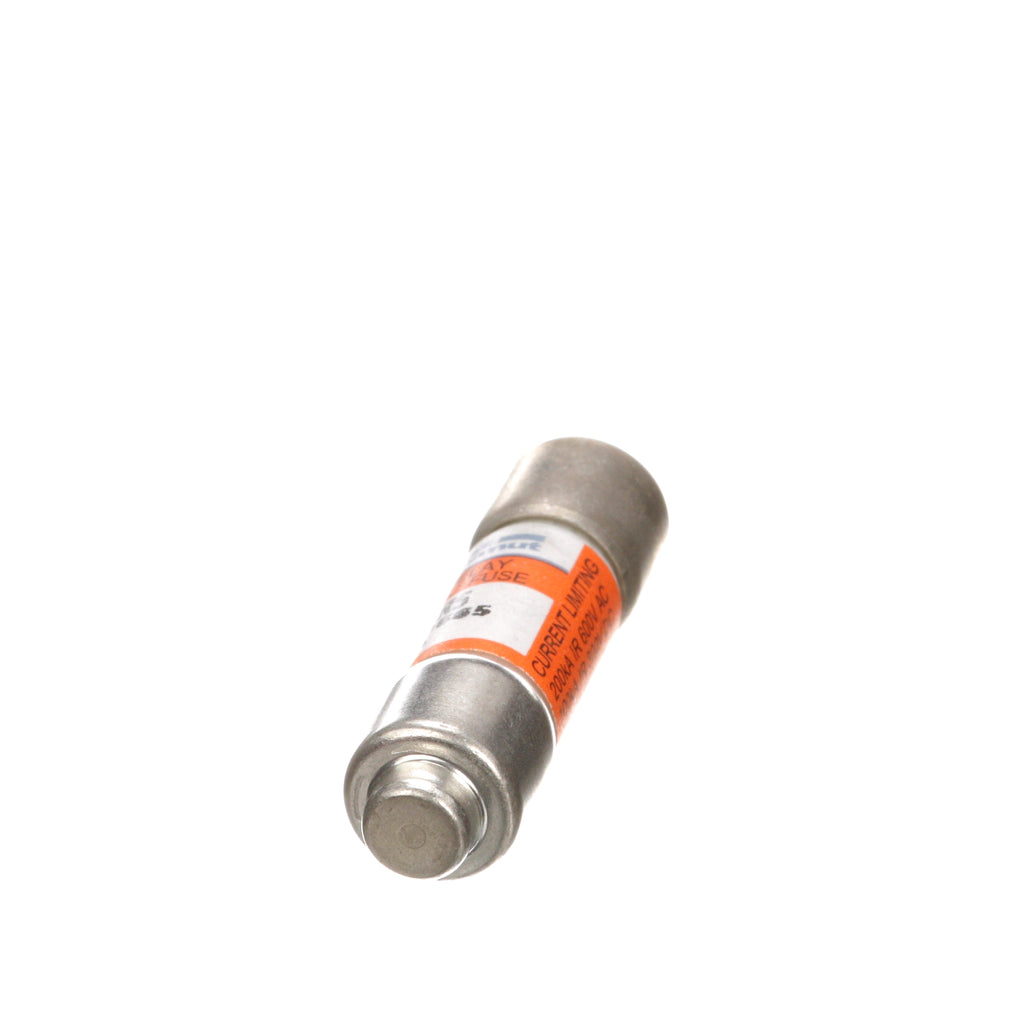

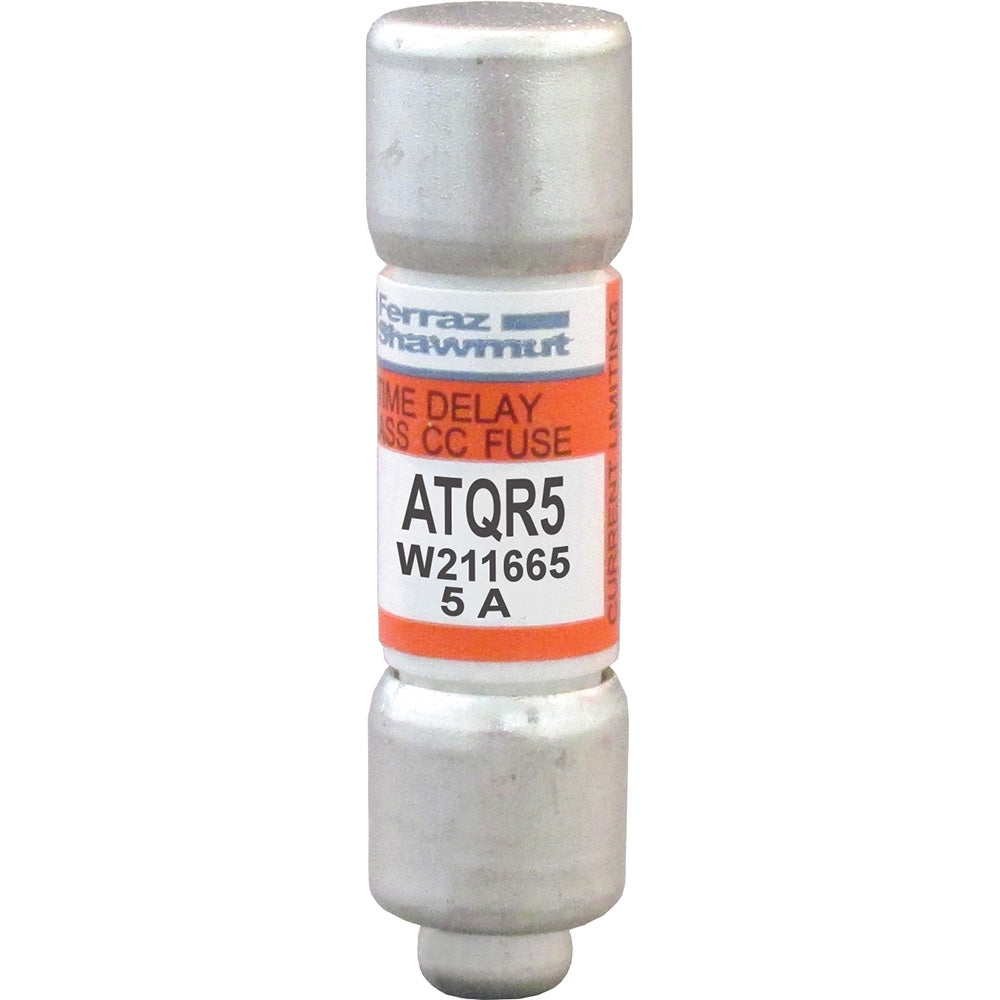

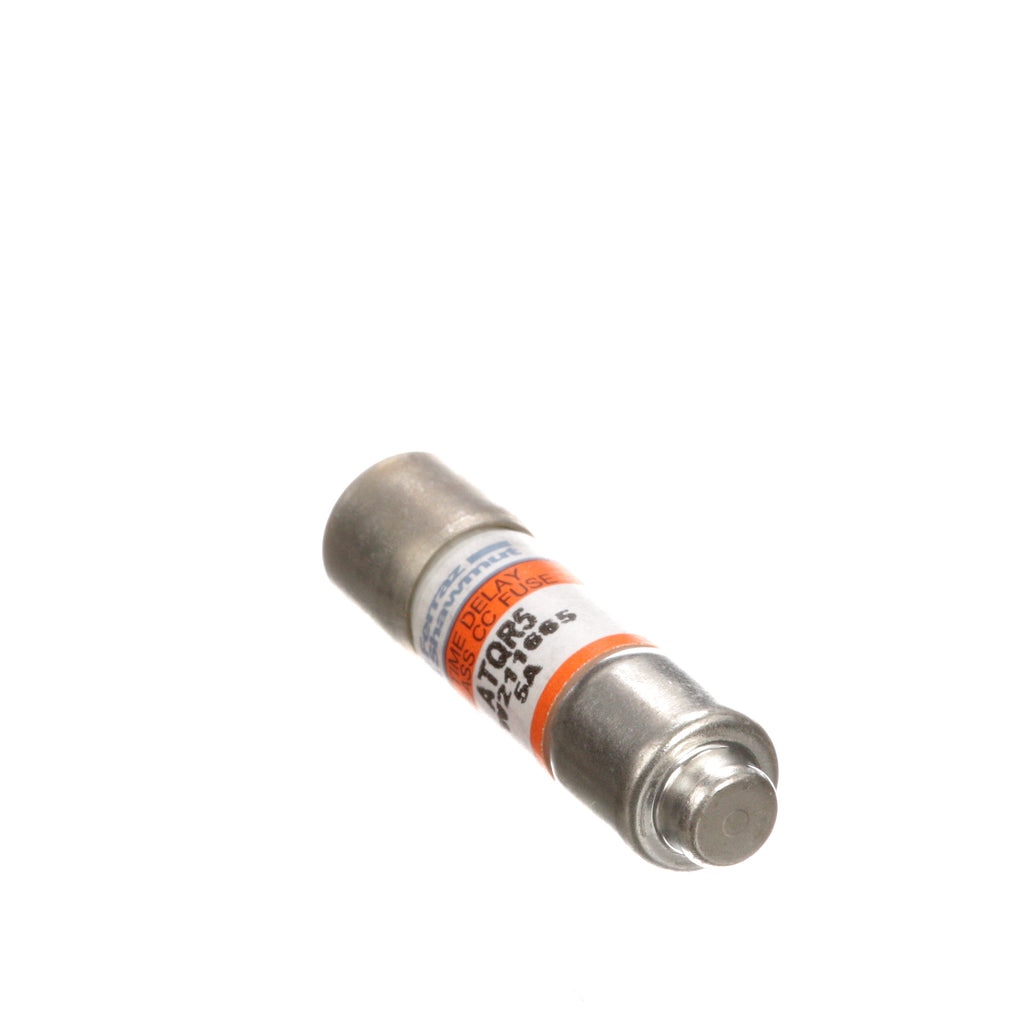

ATQR5 is a Mersen Class CC time-delay fuse designed for transformer and motor protection applications. This fuse provides reliable circuit protection with a 5A current rating and 600V AC / 300V DC voltage rating. The ferrule terminal design ensures secure connections and compatibility with standard fuse holders. The ATQR5 is highly current-limiting and features a rejection style design to prevent incorrect fuse replacement. Its compact size (13/32" x 1 1/2") makes it suitable for tight spaces. The fuse is constructed with a tin-plated copper terminal for durability and optimal conductivity. The ATQR series is ideal for applications requiring time-delay characteristics and high interrupting capacity. This Mersen ATQR5 fuse is engineered for use in industrial, commercial, and residential power distribution systems. The time-delay feature allows temporary overloads without nuisance tripping, making it suitable for motor circuits and transformer protection. The rejection style design prevents the installation of non-compatible fuses, enhancing safety. The fuse is highly current-limiting, providing fast fault clearing and minimizing damage during short circuits. The compact size and ferrule terminal make it easy to install in standard fuse blocks. The tin-plated copper terminal ensures a reliable connection and long service life. The ATQR5 is suitable for use in a wide range of applications, including control circuits, lighting, and power distribution.
- Part Number: ATQR5
- Manufacturer: Mersen
- Series: ATQR
- Amperage: 5A
- Voltage Rating: 600V AC / 300V DC
- Mounting Type: Ferrule
- Interrupt Rating: 200,000A
- Class: Class CC
- Time-Delay: Yes
- Physical Size: 13/32" x 1 1/2"
- Terminal Material: Tin-Plated Copper
- Application: Transformer Duty, Motor Protection
Specifications
- Part Number: ATQR5
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATQR
- Voltage : 600
- Amperage : 5
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001906580
- GTIN : 00782001906580
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL/CSA
