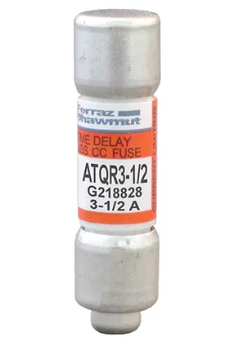

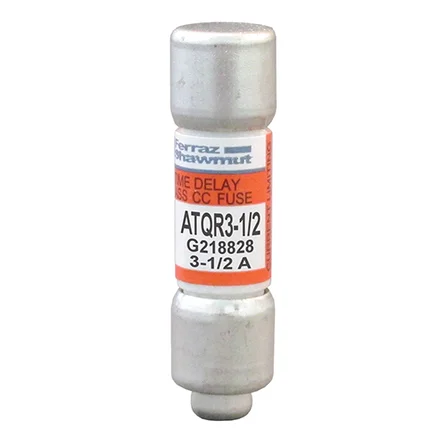

ATQR3-1/2 - Mersen Class CC Time-Delay Fuse 3.5 Amp 600V AC 300V DC 200kA Interrupt Rating

ATQR3-1/2

ATQR3-1/2 is a Mersen Class CC time-delay fuse designed for high inrush current applications.This 3.5 amp fuse is rated for 600 volts AC and 300 volts DC, featuring a 200kA interrupt rating at 600VAC and 100kA at 300VDC. It has a cartridge body style with a 13/32 diameter by 1-1/2 inch length and is UL listed and CSA certified. The time-delay characteristic allows it to handle control transformers, solenoids, lighting, heating, and general purpose loads effectively.

Key Specifications
• Amperage: 3.5 Amp
• Voltage Rating: 600V AC / 300V DC
• Interrupt Rating: 200kA at 600VAC, 100kA at 300VDC
• Fuse Class: Class CC
• Fuse Type: Time-Delay, Current Limiting
• Dimensions: 13/32 diameter x 1-1/2 inch length (10 x 38 mm)
• Mounting Style: Cartridge Fuse Holder
• UL Listed (Standard 248-4, File E2137)
• CSA Certified (Standard C22.2 No. 248.4)
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ATQR3-1/2
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : ATQR
• Voltage : 600
• Amperage : 3
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 782001906559
• GTIN : 00782001906559
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 0.02
• Certification : UL/CSA
