Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

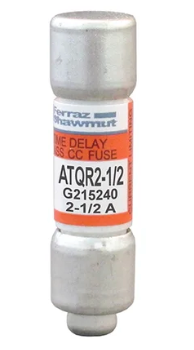

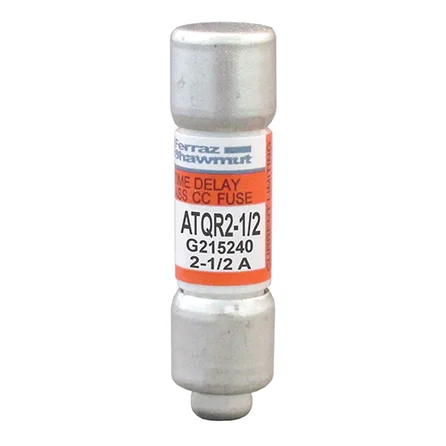

ATQR2-1/2
ATQR2-1/2 is a 2.5 amp, 600 volt Class CC time delay fuse from Ferraz Shawmut Mersen designed for reliable circuit protection.This ATQR series fuse features a time delay characteristic suitable for control transformer inrush currents, a compact 1.5 inch length, and a 0.41 inch diameter. It has a high interrupting rating of 200,000 amps AC at 600 volts and 100,000 amps DC at 300 volts, ensuring robust protection in demanding electrical environments. The fuse is rejection style to prevent incorrect fuse replacement and meets UL 248/248-4 and CSA C22.2 certifications.
- Key Specifications
- Amperage: 2.5 Amps
- Voltage Rating: 600 VAC, 300 VDC
- Fuse Type: Class CC, Time Delay
- Interrupting Rating: 200kA AC, 100kA DC
- Dimensions: 13/32" diameter x 1.5" length
- Series: ATQR
- Mounting Type: Fuse holder/block compatible
- Certifications: UL 248/248-4, CSA C22.2
- Rejection style to prevent misapplication
Specifications
- Part Number: ATQR2-1/2
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATQR
- Voltage : 600
- Amperage : 2
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001906511
- GTIN : 00782001906511
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL/CSA
