Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
ATQR12

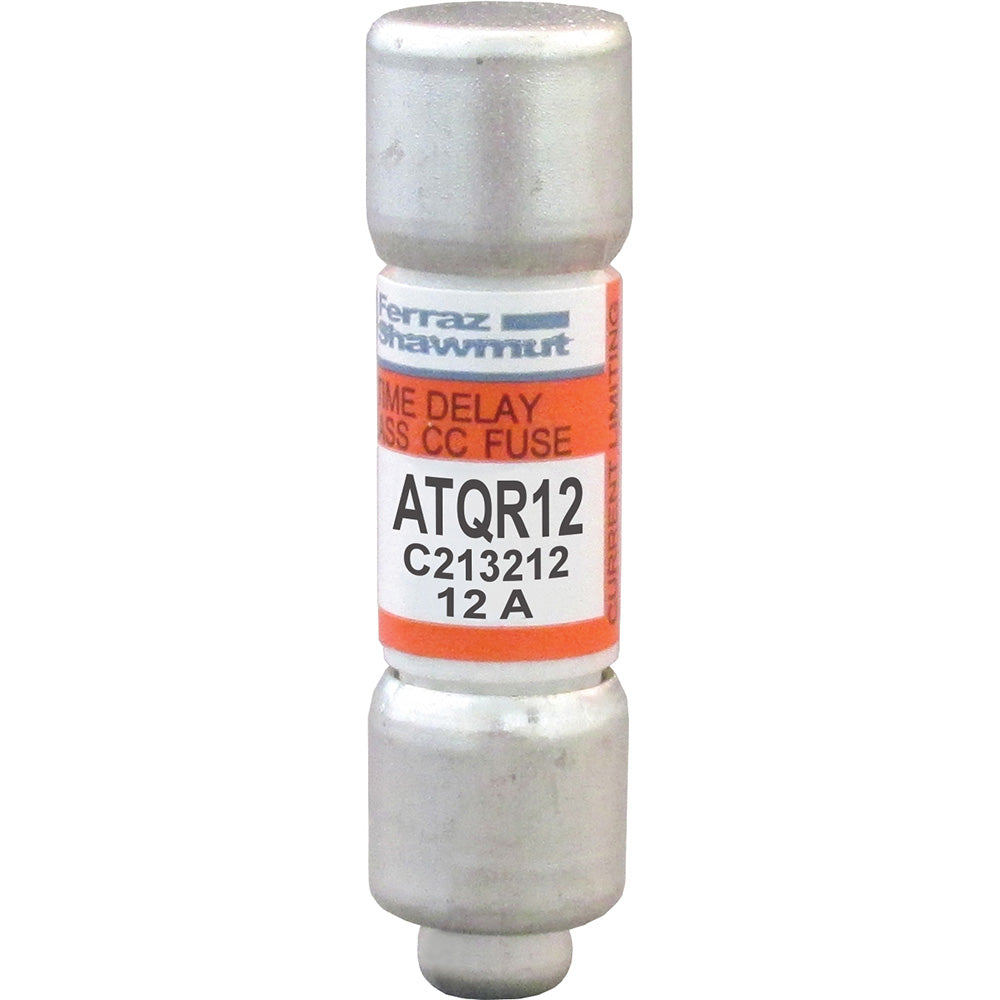

ATQR12 is a 12 amp, 600 volt AC Class CC time-delay fuse from Mersen Ferraz Shawmut designed for reliable circuit protection.This fuse features a time-delay (slow blow) characteristic suitable for control transformers and motor circuits, with a 600 VAC and 300 VDC voltage rating. It has a clip mounting type and an interrupt rating of 200 kAIC. The compact cylindrical body measures approximately 1.5 inches in length and 0.41 inches in diameter. It is UL 248/248-4 and CSA C22.2 certified, ensuring compliance with industry safety standards.
- Key Specifications
- Amperage: 12 A
- Voltage Rating AC: 600 V
- Voltage Rating DC: 300 V
- Fuse Class: Class CC
- Fuse Type: Time Delay / Slow Blow
- Interrupt Rating: 200 kAIC
- Mounting Type: Clip
- Length: 1.5 inches
- Diameter: 0.41 inches
- Certifications: UL 248/248-4, CSA C22.2
Specifications
- Part Number: ATQR12
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATQR
- Voltage : 600
- Amperage : 12
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 078200190473
- GTIN : 00782001904739
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL/CSA
