Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

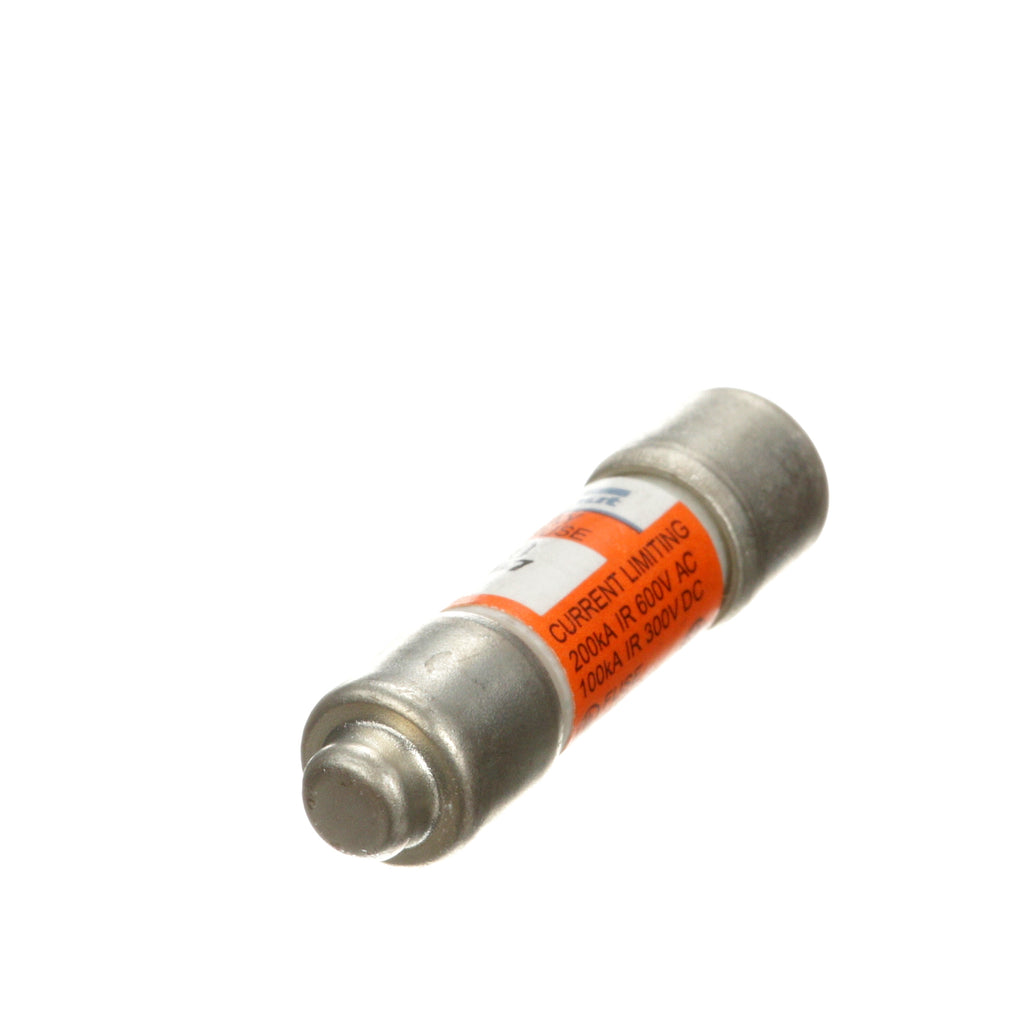

ATQR10

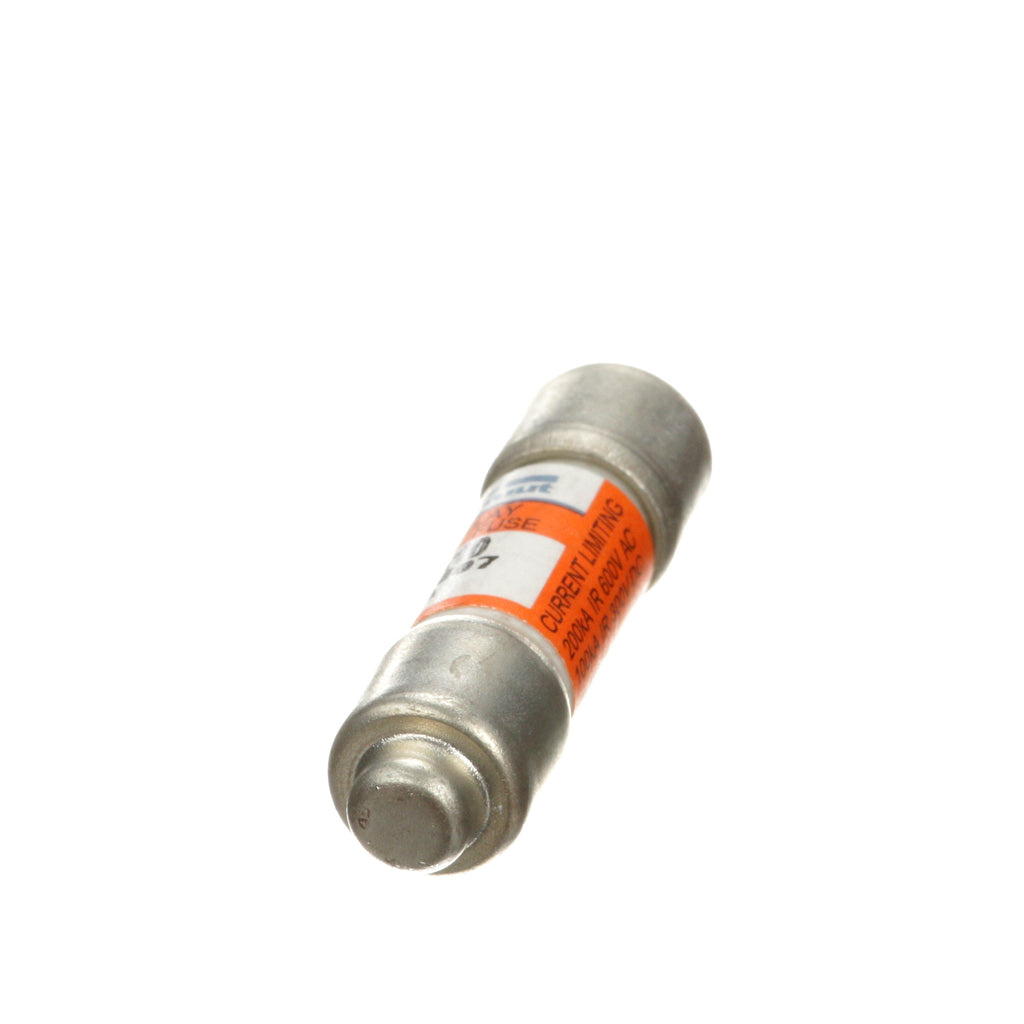

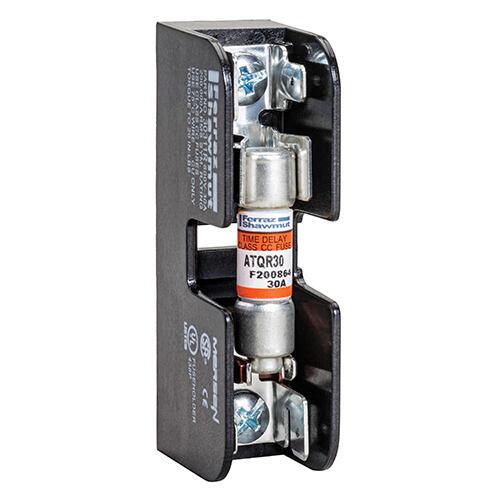

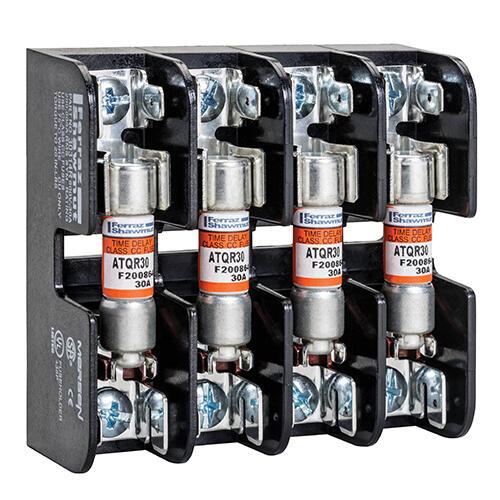

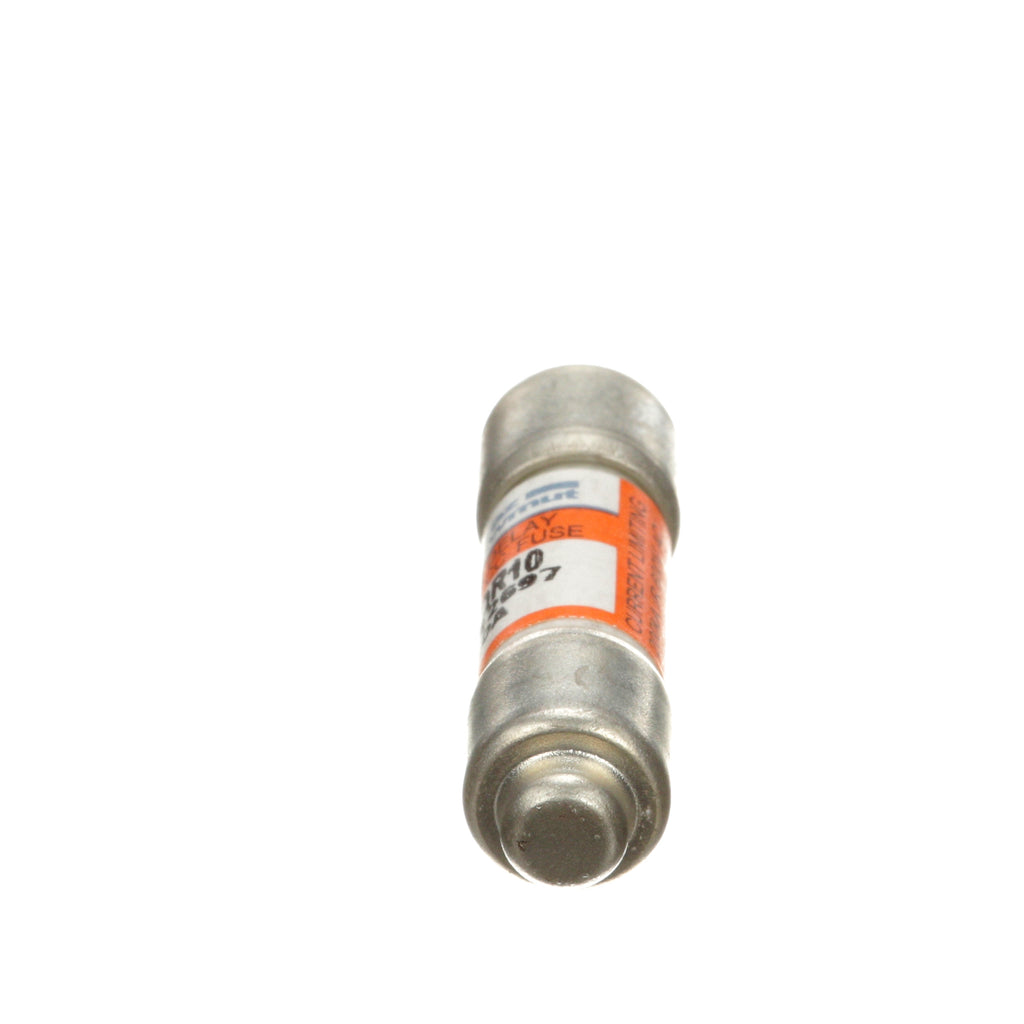

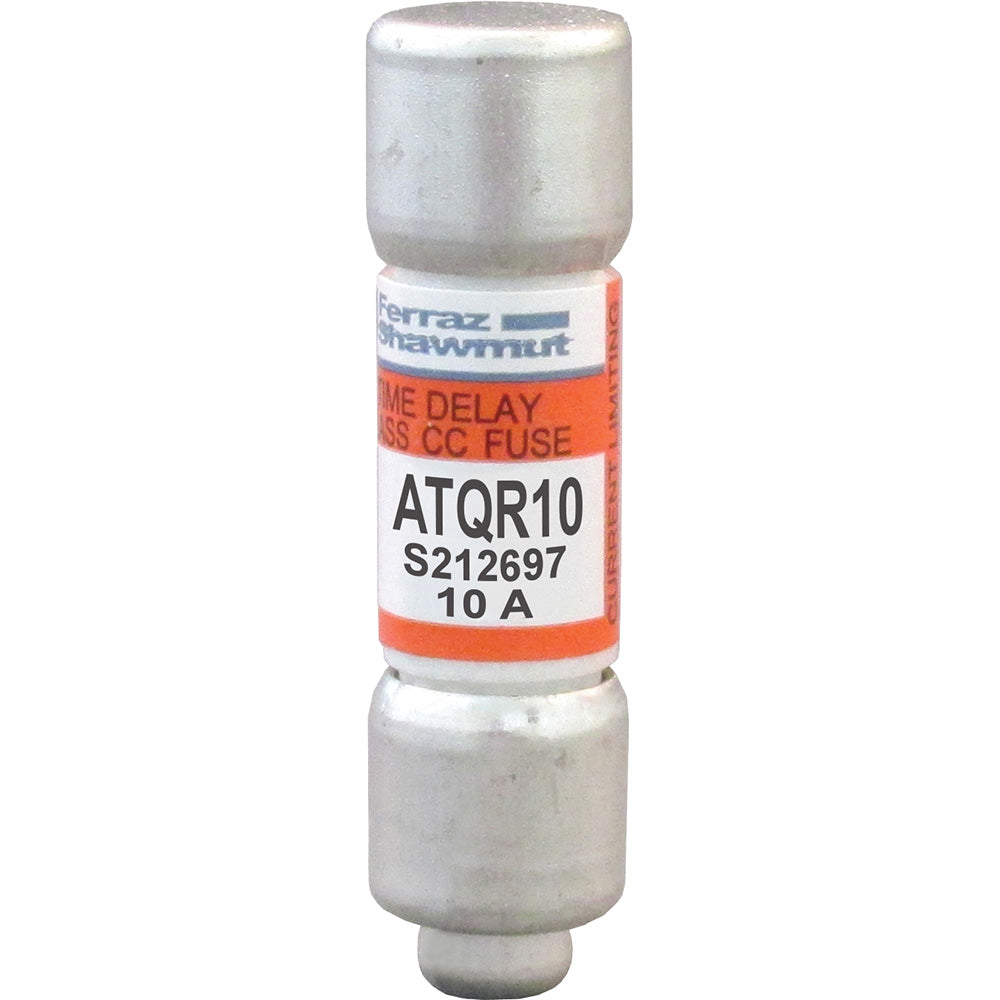

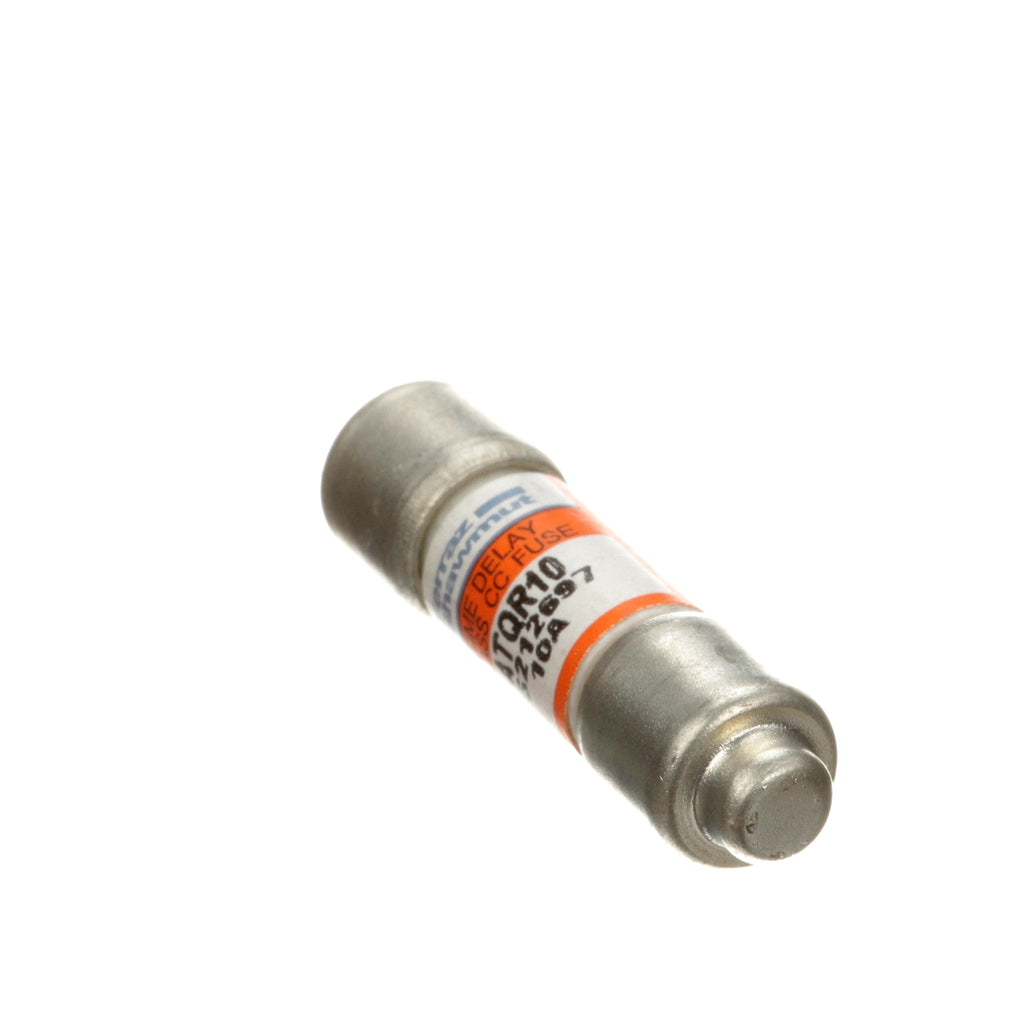

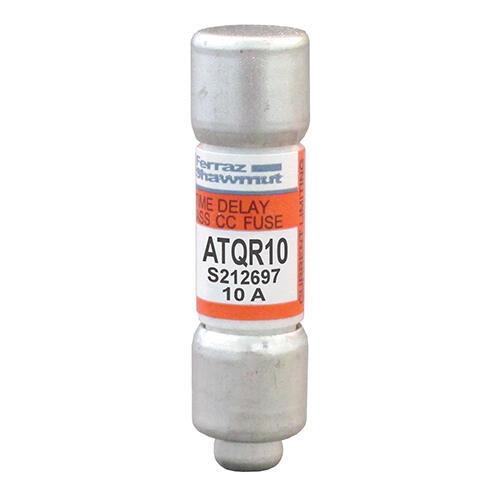

ATQR10 is a Class CC time-delay fuse designed for reliable circuit protection in industrial applications. It features a 10 amp rating and supports up to 600 volts AC and 300 volts DC.ATQR10 provides superior protection with a high interrupt rating of 200,000 amperes, suitable for branch circuit protection and control transformers. Its compact cylindrical ferrule design measures 13/32 inch diameter by 1-1/2 inch length, making it easy to install in standard Class CC fuse holders. The fuse meets UL 248-4 and CSA C22.2 certifications.
- Key Specifications
- Amperage: 10 A
- Voltage Rating: 600 V AC / 300 V DC
- Fuse Class: CC
- Time-Delay Type
- Interrupting Rating: 200,000 AIC
- Body Size: 13/32 inch diameter x 1-1/2 inch length
- Mounting Type: Ferrule terminal
- Certifications: UL 248-4, CSA C22.2
- Series: Amp-Trap 2000
Specifications
- Part Number: ATQR10
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATQR
- Voltage : 600
- Amperage : 10
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001906665
- GTIN : 00782001906665
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL/CSA
