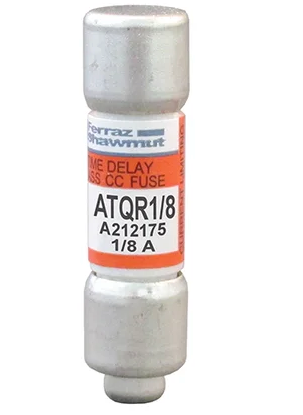

ATQR1/8 - Mersen Ferraz Shawmut 1/8A 600V Class CC Time Delay Fuse

ATQR1/8

ATQR1/8 is a Mersen Ferraz Shawmut Class CC time delay fuse rated for 1/8 ampere and 600 volts AC, designed for reliable circuit protection.This fuse features a time-delay characteristic suitable for transformer and motor control applications, with a compact 1.5 inch length and 0.41 inch diameter. It has a high interrupting rating of 200kA at 600VAC and 100kA at 300VDC, ensuring safe interruption of fault currents. The ATQR1/8 is UL 248-4 and CSA certified, with a rejection style design to prevent incorrect fuse replacement.

Key Specifications
• Amperage: 1/8 Amp (0.125A)
• Voltage Rating: 600VAC, 300VDC
• Fuse Class: Class CC
• Time Delay: Yes
• Interrupting Rating: 200kA at 600VAC, 100kA at 300VDC
• Length: 1.5 inches
• Diameter: 0.41 inches
• Mounting Type: Fuse holder compatible
• Certifications: UL 248-4, CSA C22.2 No. 248.4
• Rejection Style: Prevents incorrect fuse installation

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ATQR1/8
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : ATQR
• Voltage : 600
• Amperage : 1
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 78200190467
• GTIN : 00782001904678
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 0.02
• Certification : UL/CSA
