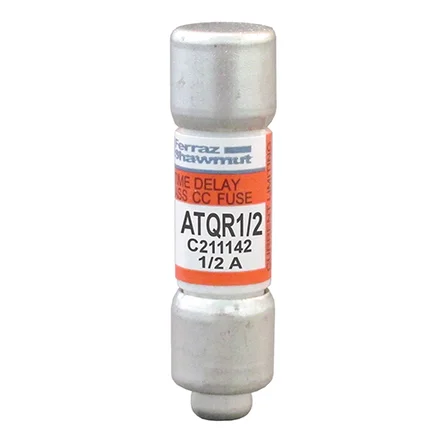

ATQR1/2 - Mersen Ferraz Shawmut 0.5 Amp 600V AC Class CC Time-Delay Transformer Duty Fuse

ATQR1/2

ATQR1/2 is a 0.5 amp, 600 volt AC Class CC time-delay fuse designed for transformer duty applications by Mersen Ferraz Shawmut.This fuse features time-delay characteristics ideal for control transformers, solenoids, and similar inductive loads with high inrush currents. It offers high current limiting for low peak let-thru current and a rejection-style design to prevent replacement errors when used with recommended fuse blocks. The fuse has a fiberglass body for dimensional stability and a high-grade silica filler for fast arc quenching and superior current limitation. It is UL 248/248-4 and CSA C22.2 approved with a 200 kiloamp interrupt rating.

Key Specifications
• Amperage: 0.5 Amp
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: Class CC
• Time-Delay Type
• Interrupt Rating: 200 kA
• Dimensions: 13/32" diameter x 1.5" length
• Mounting Type: Ferrule (small dimension)
• Series: ATQR (Amp-Trap 2000® family)
• Certifications: UL 248/248-4, CSA C22.2
• Rejection-style design to prevent replacement errors
• High current limiting for low peak let-thru
• Fiberglass body with high-grade silica filler

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ATQR1/2
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : ATQR
• Voltage : 600
• Amperage : 1
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 078200190633
• GTIN : 00782001906337
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 5
• Certification : UL/CSA
