Product Info
- Manufacturer:Mersen
Description
ATQR1.125

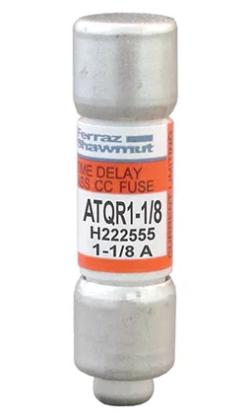

ATQR1.125 is a Mersen Class CC time-delay fuse rated for 1.125 amps, designed for reliable circuit protection in industrial applications.This fuse features a 600 VAC and 300 VDC voltage rating with a high interrupt rating of 200 kA, providing superior current limiting and protection against transient surges. It is time-delay type, ideal for control transformer inrush loads without nuisance openings. The fuse has tin-plated copper ferrule terminals and a compact 0.41 inch diameter by 1.5 inch length size.
- Amperage: 1.125 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupt Rating: 200 kA
- Fuse Type: Class CC Time-Delay
- Terminal Material: Tin-Plated Copper
- Terminal Type: Ferrule
- Dimensions: 0.41 in diameter x 1.5 in length
- Speed: Time Delay
- Series: ATQR
- Certifications: UL/CSA Listed
Specifications
- Part Number: ATQR1.125
- Manufacturer : Mersen
- Brand : Mersen
Product Data
- Weight : 5.19
