Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

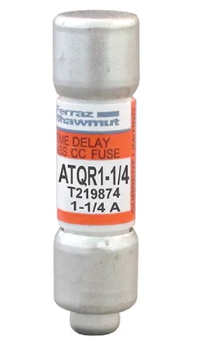

ATQR1-1/4
ATQR1-1/4 is a Mersen Ferraz Shawmut Class CC time-delay fuse rated for 1.25 amps and 600VAC/300VDC operation with clip mounting.
This fuse features a 200kA interrupting rating at 600VAC and 100kA at 300VDC, designed for control transformers, solenoids, inductive loads, lighting, heating, and general-purpose applications. It complies with UL and CSA certifications and is RoHS and EU standards compliant. The compact ATQR frame measures 1.5 inches in length and 0.41 inches in diameter, with a ferrule connection type and GMG body material.
- Key Specifications
- Amperage: 1.25A
- Voltage: 600VAC, 300VDC
- Interrupting Rating: 200kA at 600VAC, 100kA at 300VDC
- Mounting Type: Clip
- Fuse Series/Frame: ATQR Class CC
- Time-Delay Characteristic
- Connection Type: Ferrule
- Length: 1.5 inches
- Diameter: 0.41 inches
- Certifications: UL, CSA
- Standards: RoHS, EU
- Body Material: GMG
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: ATQR1-1/4
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATQR
- Voltage : 600
- Amperage : 1
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001906399
- GTIN : 00782001906399
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL/CSA
