Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
ATQR1-1/2

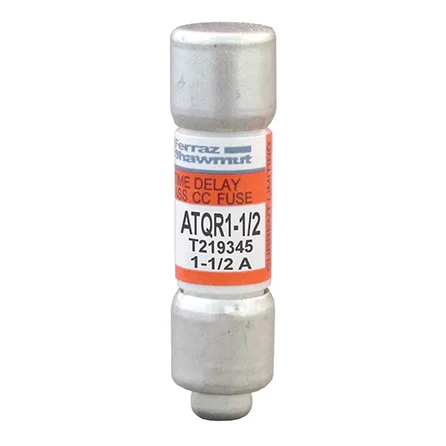

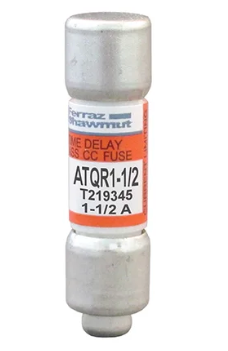

ATQR1-1/2 is a 1.5 Amp, 600 Volt AC Class CC time delay fuse designed for control transformer protection.This Mersen Ferraz Shawmut fuse features a compact 1.5 inch length and 0.41 inch diameter, with a rejection style design to prevent replacement errors. It offers high interrupting ratings of 200,000 AIC AC and 100,000 AIC DC, suitable for demanding industrial applications. The fuse is UL Listed to Standard 248-4, DC Listed to UL 248, and CSA Certified to Standard C22.2 No. 248.4. It is highly current limiting and rated for transformer duty with time delay characteristics to handle high inrush currents.
- Key Specifications
- Amperage: 1.5 Amps
- Voltage Rating: 600V AC, 300V DC
- Fuse Class: CC
- Time Delay: Yes
- Interrupting Rating: 200,000 AIC AC, 100,000 AIC DC
- Physical Size: 13/32" diameter x 1.5" length
- Mounting Type: Rejection style
- Certifications: UL Listed, DC Listed, CSA Certified
- Series: ATQR
- Application: Transformer Duty
- Part Number: ATQR1-1/2
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATQR
- Voltage : 600
- Amperage : 1
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
- UPC : 078200190641
- GTIN : 00782001906412
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL/CSA
