ATQ9 - Mersen Ferraz Shawmut 9A 500VAC Time Delay Midget Fuse 10kA Interrupt Rating

ATQ9

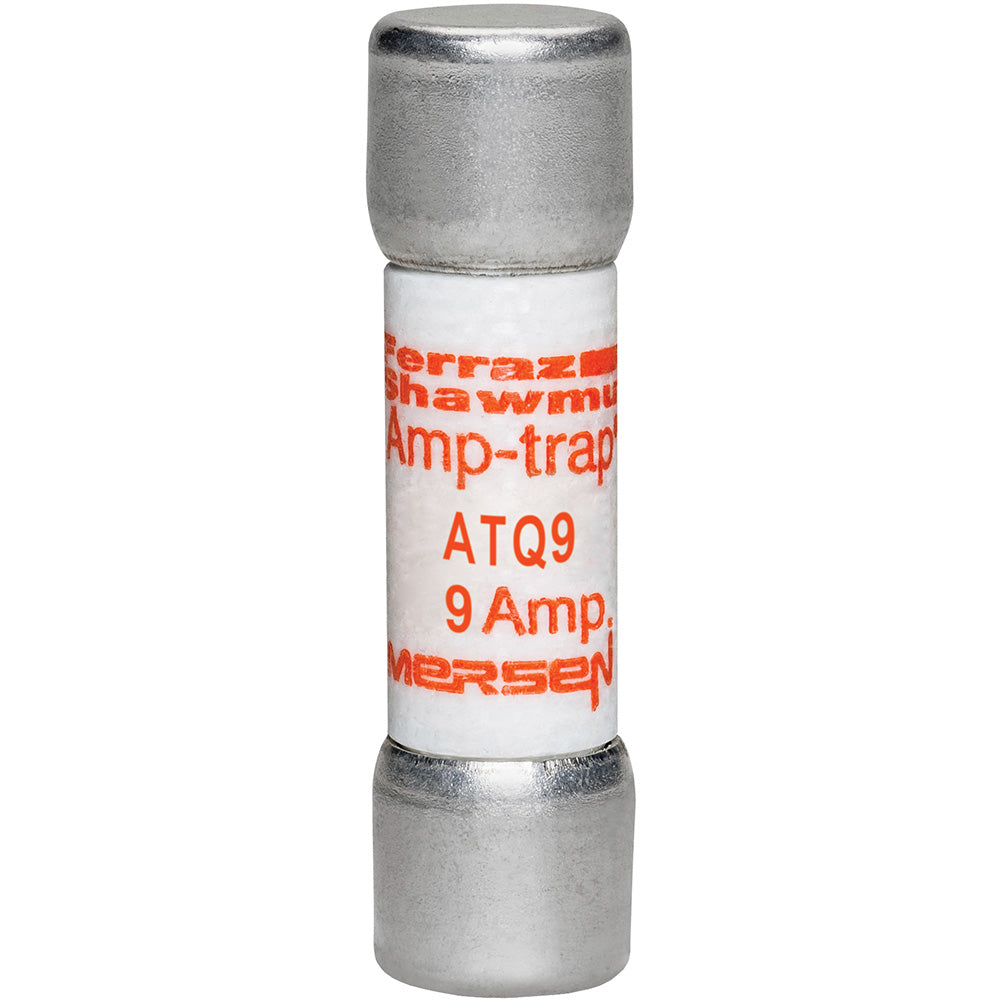

ATQ9 is a 9 ampere, 500 volt AC time delay midget fuse from Mersen Ferraz Shawmut designed for supplemental circuit protection.This ATQ9 fuse features a 10,000 amp interrupt rating and a time delay characteristic suitable for circuits with high inrush currents. It measures approximately 13/32 inch diameter by 1-1/2 inch length and is UL 248-14 and CSA C22.2 certified. The fuse is intended for use in applications where short circuit current does not exceed 10kA and is not for branch circuit protection.

Key Specifications
• Amperage: 9 A
• Voltage Rating: 500 VAC
• Interrupt Rating: 10 kA
• Fuse Class: Midget
• Speed: Time Delay (12 seconds at 200% rating)
• Dimensions: 13/32 inch diameter x 1-1/2 inch length
• Mounting Type: Clip
• Certifications: UL 248-14, CSA C22.2
• Series: Amp-Trap ATQ
• Application: Supplemental protection, not for branch circuit protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ATQ9
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : ATQ
• Voltage : 500
• Amperage : 9
• AIC rating : 10kA@500V
• Diameter : 0.41
• Class Rating : midget
• Barrels : 1

Product Data

• UPC : 782001904326
• GTIN : 00782001904326
• Country of Origin : Mexico
• Dimensions : x 1-1/2" x
• Weight : 0.01
• Certification : CSA, UL
