Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
ATQ25

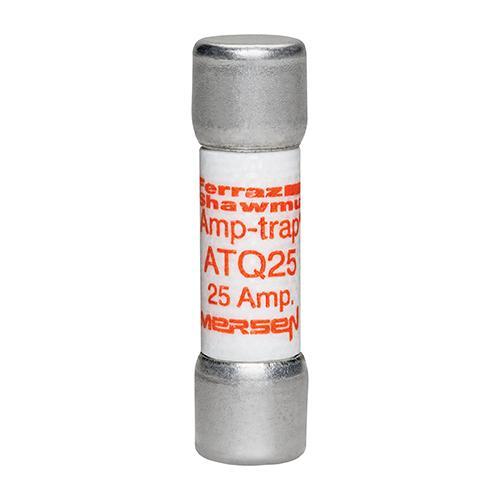

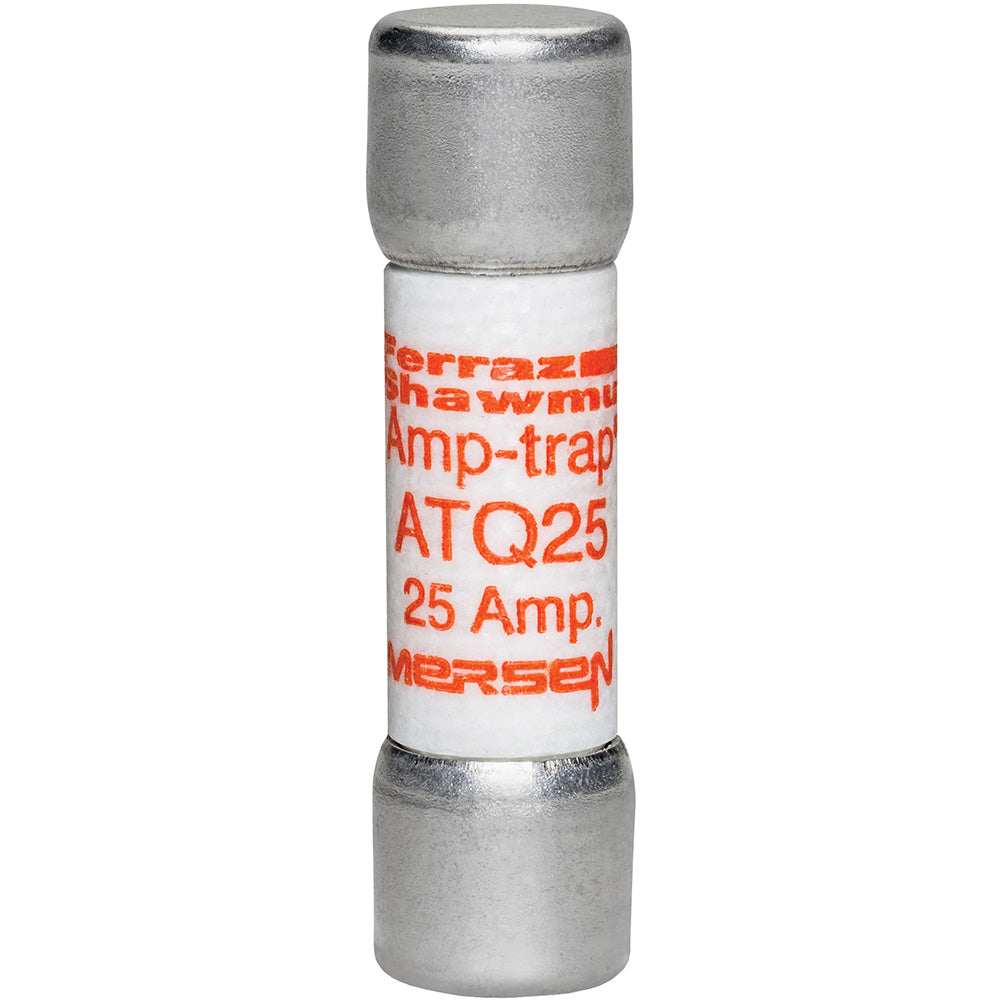

ATQ25 is a 25 Amp, 500 Volt AC time-delay midget fuse from Mersen's Amp-Trap ATQ series designed for reliable supplemental circuit protection.ATQ25 features a compact 13/32" x 1-1/2" size and a 10 kiloamp interrupting rating, meeting UL 248-14 and CSA C22.2 certifications for safety and performance. This fuse is ideal for applications requiring time-delay characteristics to withstand temporary overloads without nuisance blowing.
- Key Specifications
- Amperage: 25 Amp
- Voltage Rating: 500 VAC
- Fuse Size: 13/32" x 1-1/2"
- Fuse Type: Time-Delay Midget
- Interrupting Rating: 10 kA
- Series: Amp-Trap ATQ
- Certifications: UL 248-14, CSA C22.2
- Mounting Type: Ferrule
- Application: Supplemental Protection
Specifications
- Part Number: ATQ25
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : ATQ
- Voltage : 500
- Amperage : 25
- AIC rating : 10kA@500V
- Diameter : 0.41
- Class Rating : midget
- Barrels : 1
Product Data
- UPC : 782001904623
- GTIN : 00782001904623
- Country of Origin : Mexico
- Dimensions : x 1-1/2" x
- Weight : 0.01
- Certification : CSA, UL
