Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
ATQ20

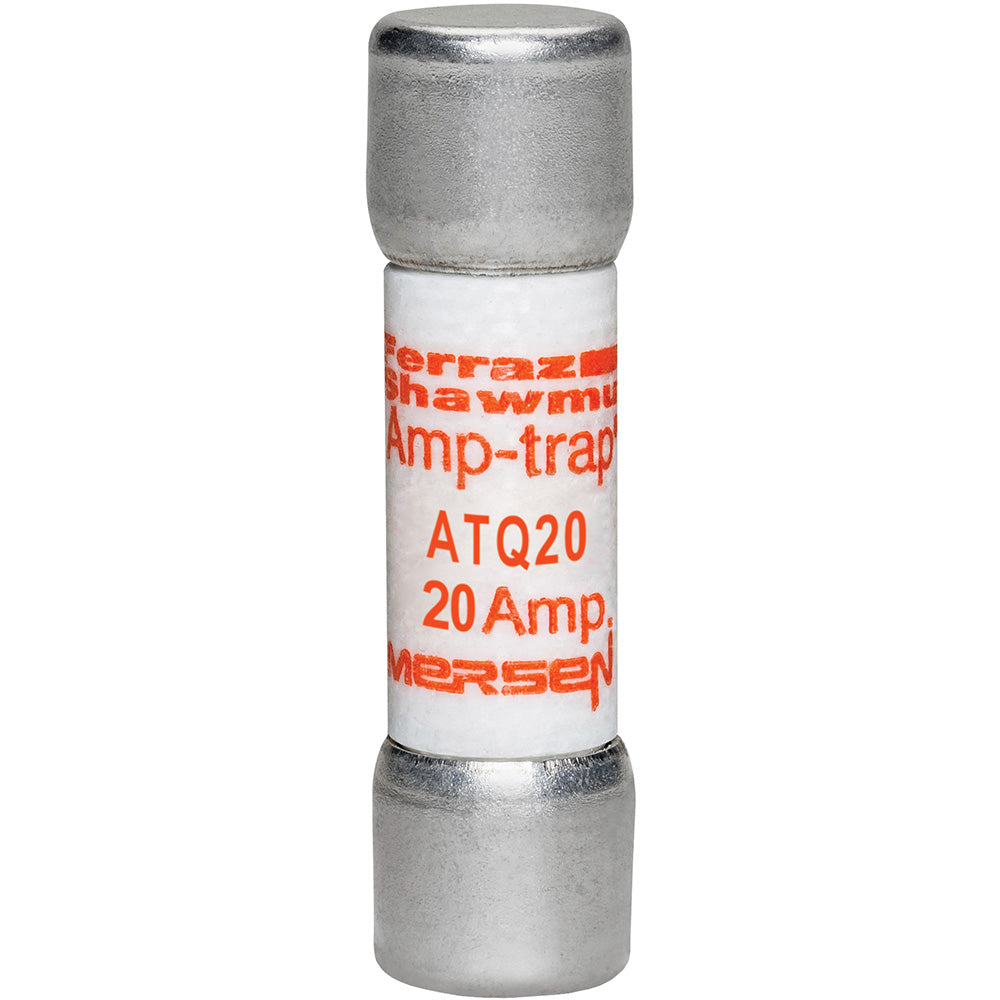

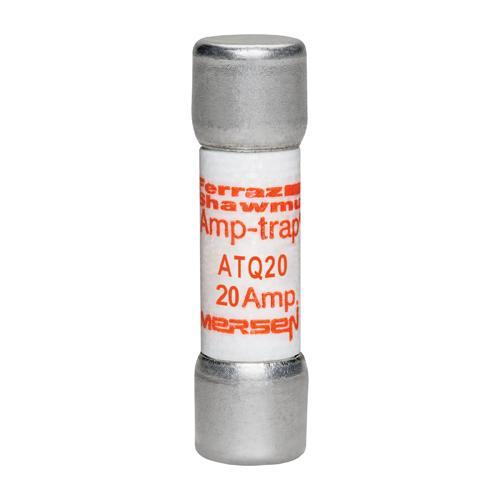

ATQ20 is a 20 amp, 500 volt time delay midget fuse from Ferraz Shawmut Mersen designed for low voltage circuit protection.This cylindrical body fuse features a 10,000 amp interrupt rating and is part of the Amp-Trap ATQ series. It provides time delay protection suitable for circuits with high inrush currents and is rated for supplemental protection where short circuit current does not exceed 10kA. The fuse measures approximately 13/32 inch diameter by 1-1/2 inch length and complies with UL 248-14 and CSA C22.2 certifications.
- Key Specifications
- Amperage: 20 A
- Voltage Rating: 500 VAC
- Fuse Type: Time Delay
- Body Type: Cylindrical (Midget)
- Interrupt Rating: 10 kA
- Length: 1.5 inches
- Diameter: 13/32 inch
- Series: Amp-Trap ATQ
- Certifications: UL 248-14, CSA C22.2
- Application: Supplemental Protection
- Part Number: ATQ20
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : ATQ
- Voltage : 500
- Amperage : 20
- AIC rating : 10kA@500V
- Diameter : 0.41
- Class Rating : midget
- Barrels : 1
- UPC : 782001904616
- GTIN : 00782001904616
- Country of Origin : Mexico
- Dimensions : x 1-1/2" x
- Weight : 5
- Certification : CSA, UL
