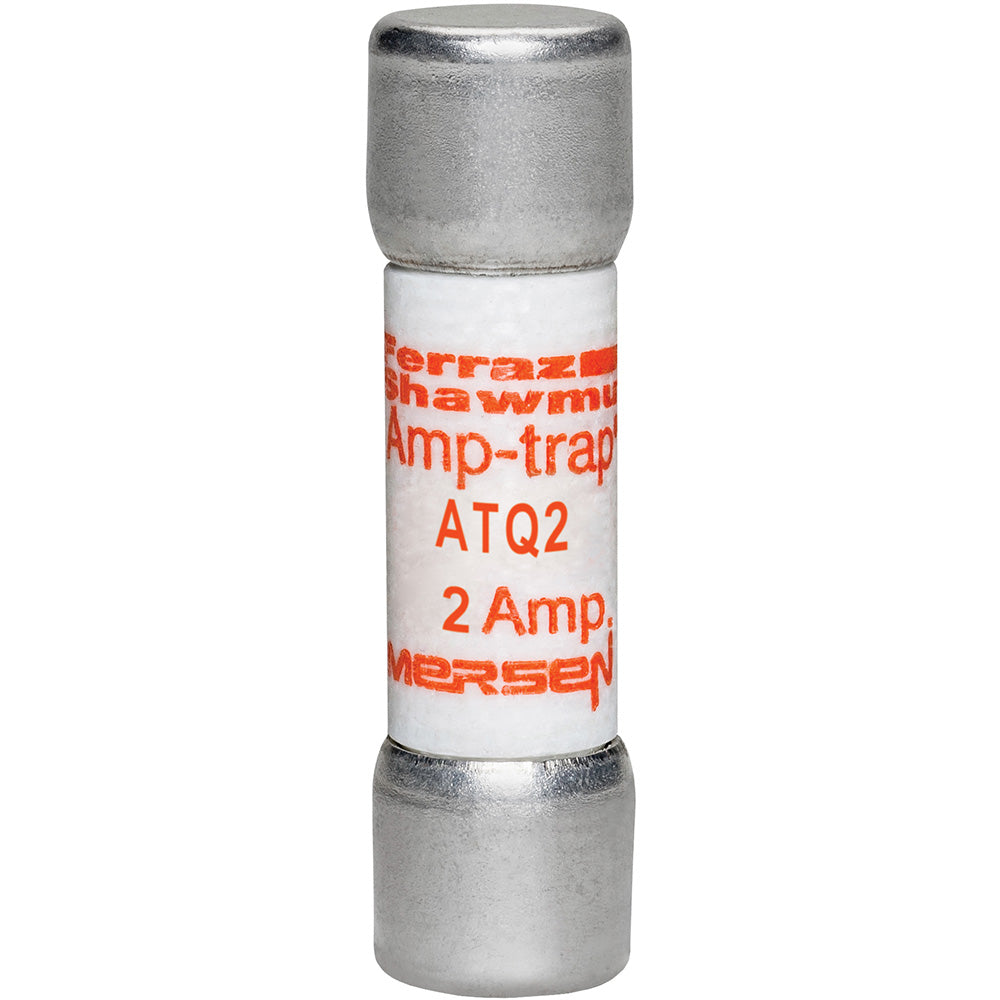

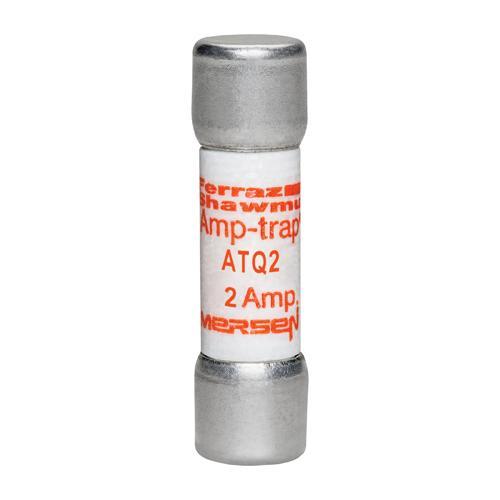

ATQ2 - Mersen Ferraz Shawmut 2 Amp 500 Volt Time Delay Midget Fuse

ATQ2

ATQ2 is a 2 Amp, 500 Volt time delay midget fuse from Mersen Ferraz Shawmut designed for supplemental circuit protection.This ATQ series fuse features a time delay characteristic allowing it to handle temporary inrush currents without nuisance blowing. It is rated for 500 VAC with a 10,000 Amp interrupt rating, suitable for circuits requiring reliable supplemental protection but not for branch circuit protection. The fuse measures approximately 13/32" diameter by 1 1/2" length and complies with UL 248-14 and CSA C22.2 standards.

Key Specifications
• Amperage: 2 Amps
• Voltage Rating: 500 Volts AC
• Fuse Type: Time Delay Midget Fuse
• Interrupt Rating: 10,000 Amps
• Physical Size: 13/32" diameter x 1 1/2" length
• Series: ATQ
• Approvals: UL 248-14, CSA C22.2
• Application: Supplemental protection, not for branch circuit protection
• Mounting: ULTRASAFE fuseholders compatible

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ATQ2
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : ATQ
• Voltage : 500
• Amperage : 2
• AIC rating : 10kA@500V
• Diameter : 0.41
• Class Rating : midget
• Barrels : 1

Product Data

• UPC : 782001903541
• GTIN : 00782001903541
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 5
• Certification : CSA, UL
