Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

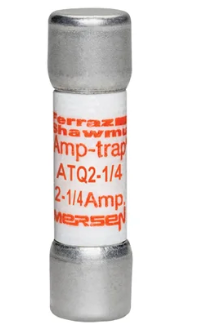

ATQ2-1/4
ATQ2-1/4 is a 2.25 amp, 500 VAC, 1-pole time delay midget fuse from Eaton's ATQ series designed for reliable circuit protection.This Eaton ATQ2-1/4 fuse features a melamine glass body with clip mounting, providing superior durability and performance in AC circuits up to 500 volts. It offers time delay operation to allow temporary overloads without blowing, suitable for motor and transformer protection. The fuse has a compact 1 1/2 inch length and 0.41 inch diameter, with a 10 kA interrupting rating. It is UL listed and CSA certified for safety and compliance.
- Key Specifications
- Amperage: 2.25 A
- Voltage Rating: 500 VAC
- Number of Poles: 1
- Mounting Type: Clip
- Speed Type: Time Delay
- Body Material: Glass Melamine
- Interrupting Rating: 10 kA
- Fuse Class: Midget
- Length: 1.5 inches (3.81 cm)
- Diameter: 0.41 inches (1.04 cm)
- Series/Frame: ATQ
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: ATQ2-1/4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : ATQ
- Voltage : 500
- Amperage : 2
- AIC rating : 10kA@500V
- Diameter : 0.41
- Class Rating : midget
- Barrels : 1
Product Data
- UPC : 782001906030
- GTIN : 00782001906030
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : CSA, UL
