2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
ATQ15

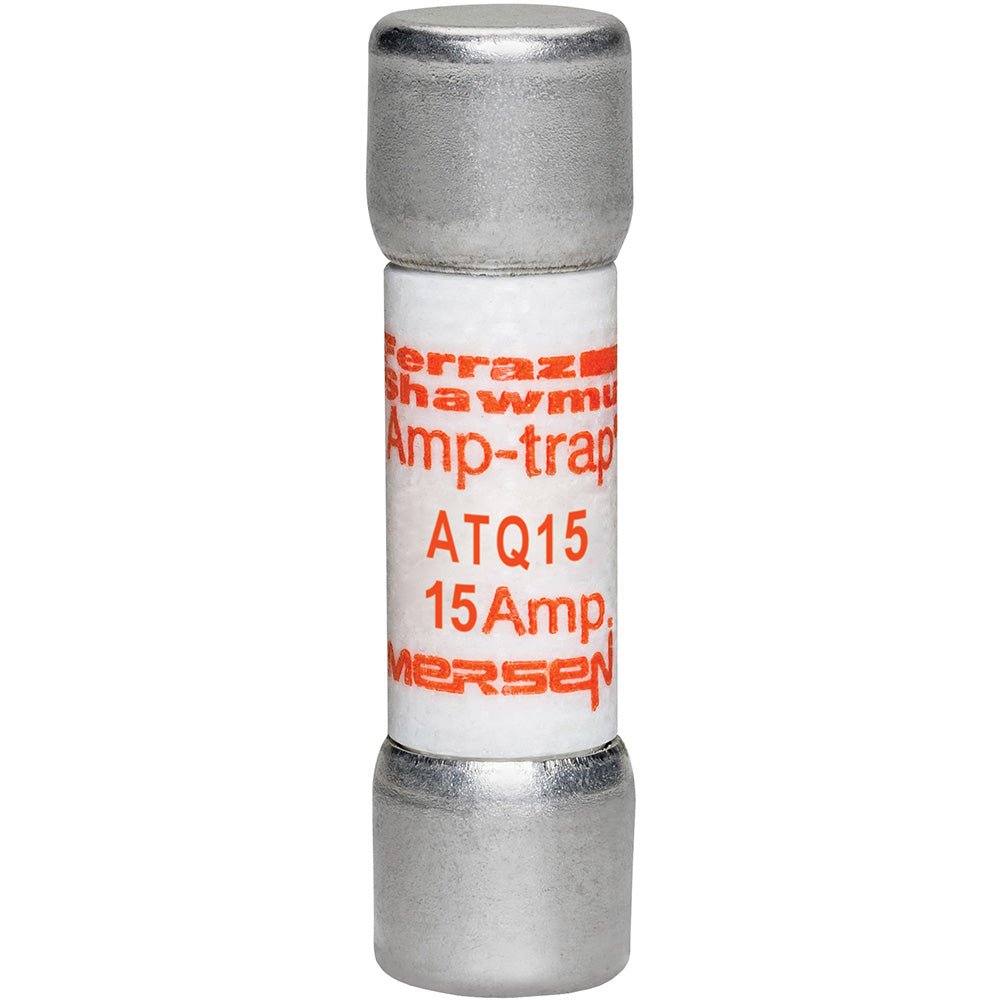

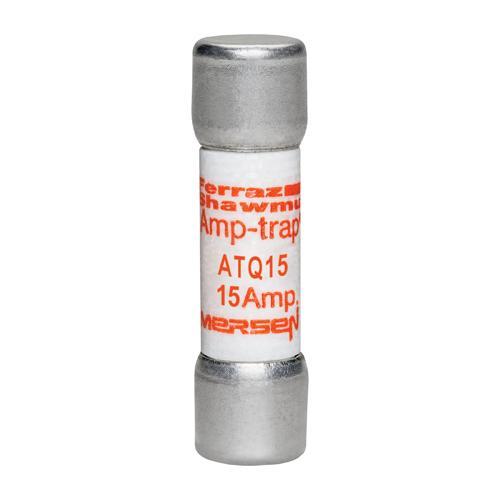

ATQ15 is a 15 amp, 500 volt time delay midget fuse designed for supplemental circuit protection.This Eaton ATQ15 fuse features a 1-pole design with a 10,000 amp interrupting rating (AIC) at 500 volts AC. It is a time delay fuse suitable for protecting lighting, solenoids, motors, and other circuits where short circuit current does not exceed 10kA. The fuse has a physical size of approximately 13/32 inch diameter by 1 1/2 inch length and meets UL standards for midget class fuses.
- Key Specifications
- Amperage: 15 Amps
- Voltage Rating: 500 Volts AC
- Poles: 1
- Mounting Type: Midget Fuse Holder
- Interrupt Rating: 10,000 Amps (10kA)
- Fuse Type: Time Delay
- Physical Size: 13/32" diameter x 1 1/2" length
- Series/Frame: Midget Class
- Certifications: UL Listed
- Part Number: ATQ15
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : ATQ
- Voltage : 500
- Amperage : 15
- AIC rating : 10kA@500V
- Diameter : 0.41
- Class Rating : midget
- Barrels : 1
- UPC : 782001904609
- GTIN : 00782001904609
- Country of Origin : Mexico
- Dimensions : x 1-1/2" x
- Weight : 5
- Certification : CSA, UL
