Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
ATQ12

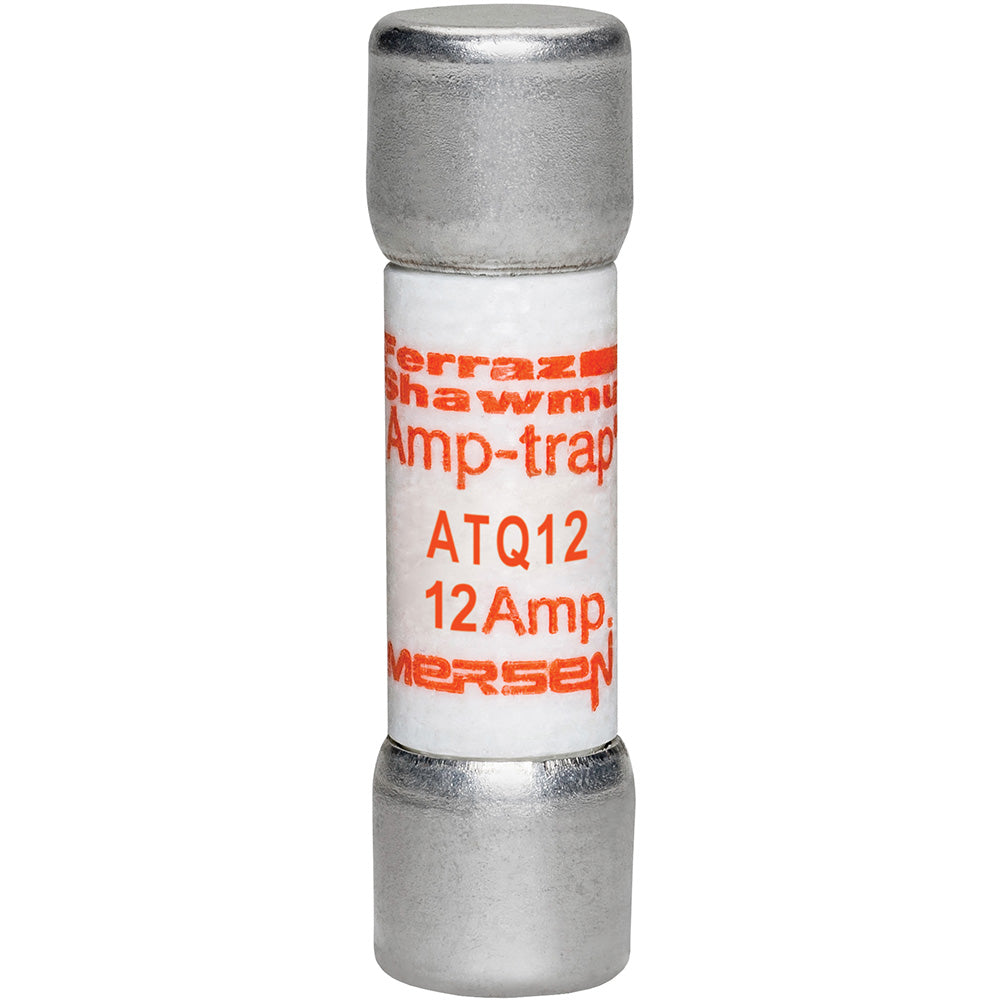

ATQ12 is a time delay midget fuse from Ferraz Shawmut and Mersen, designed for supplemental circuit protection in low voltage applications.
This compact, easy-to-install fuse features a 12-second time delay at 200% rated load, making it ideal for circuits with high inrush currents. It is not intended for branch circuit protection. The ATQ12 is UL and CSA certified, ensuring compliance with North American safety standards.
-
Key Specifications
- Amperage: 12A
- Voltage: 500V AC
- Poles: 1
- Mounting Type: Ferrule (cartridge)
- Interrupt Rating: 10,000A (10kA)
- Series/Frame: ATQ (Midget)
- Trip Unit: Time Delay (12 sec at 200% load)
- Certifications: UL 248-14, CSA C22.2
- Physical Size: 1.5" x 0.41" (13/32" x 1 1/2")
- RoHS Compliant
- Supplemental Protection Only
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: ATQ12
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : ATQ
- Voltage : 500
- Amperage : 12
- AIC rating : 10kA@500V
- Diameter : 0.41
- Class Rating : midget
- Barrels : 1
Product Data
- UPC : 078200190459
- GTIN : 00782001904593
- Country of Origin : Mexico
- Dimensions : x 1-1/2" x
- Weight : 0.01
- Certification : CSA, UL
