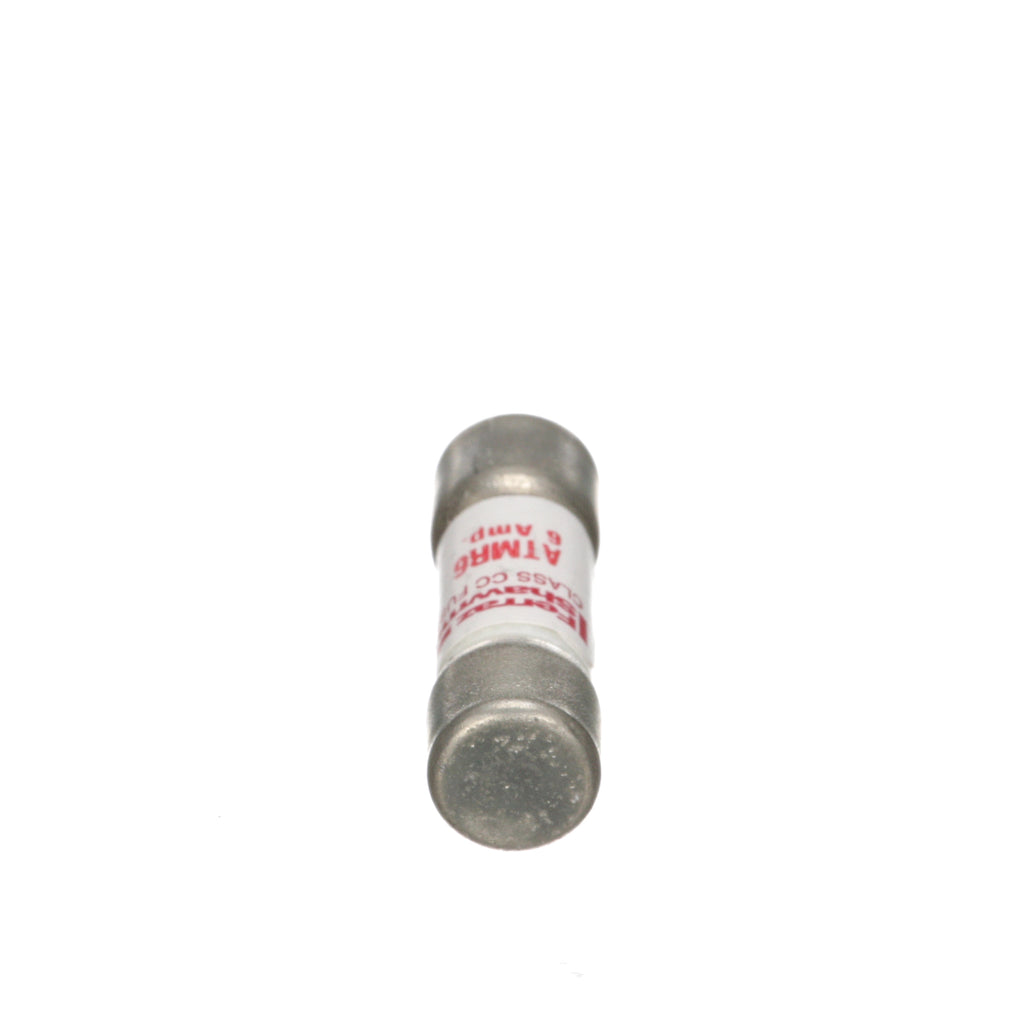

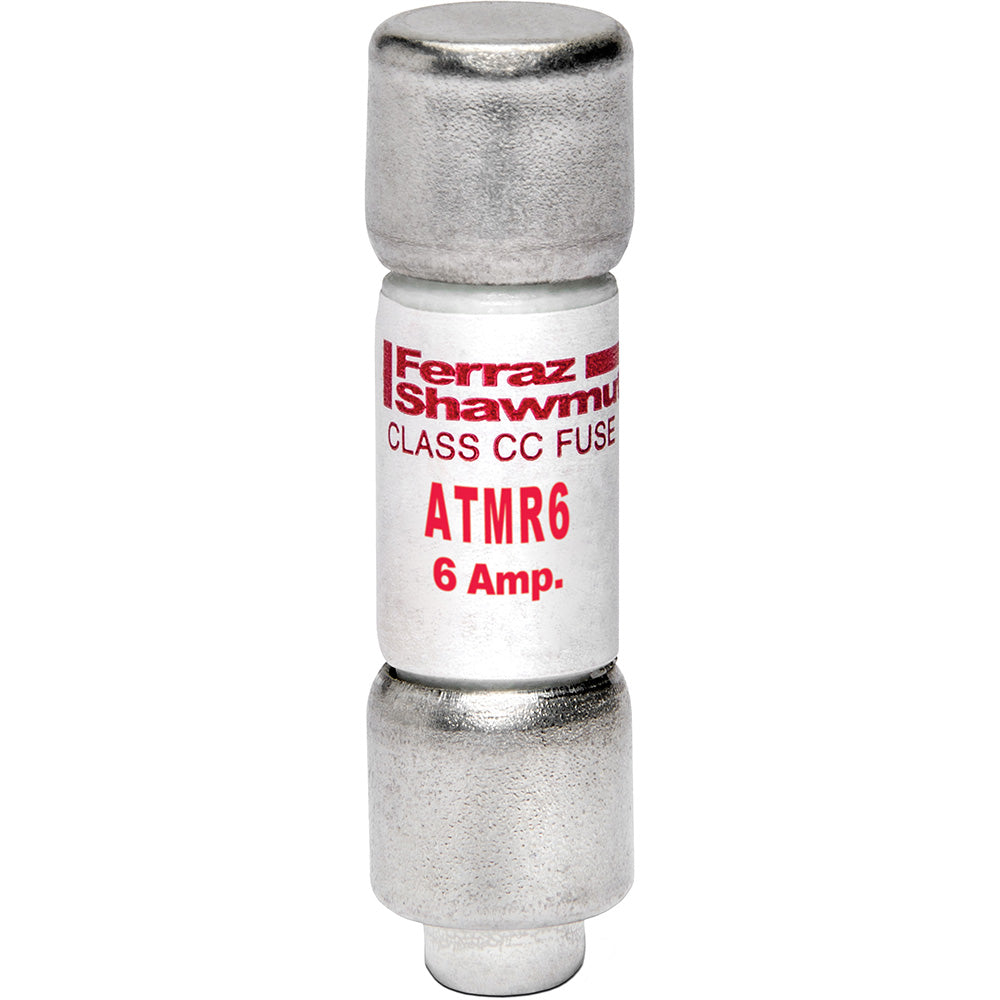

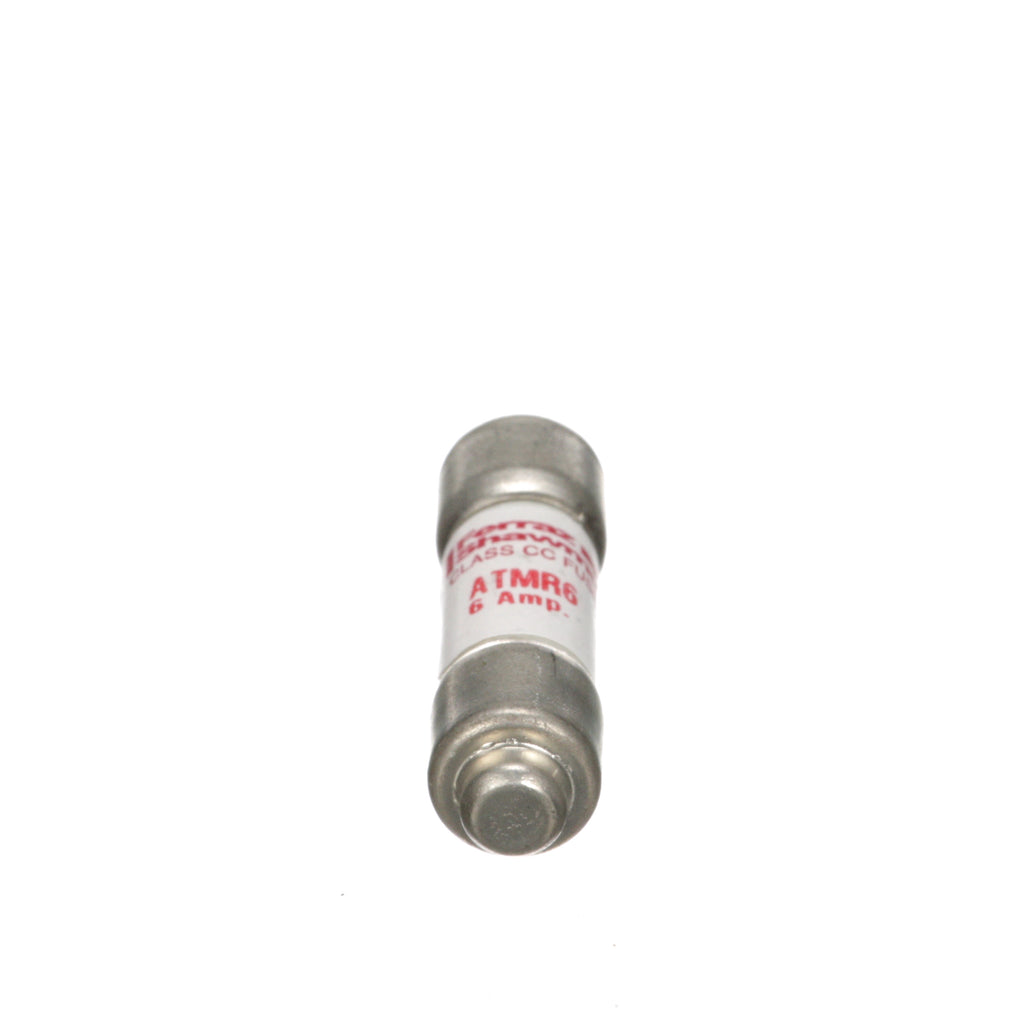

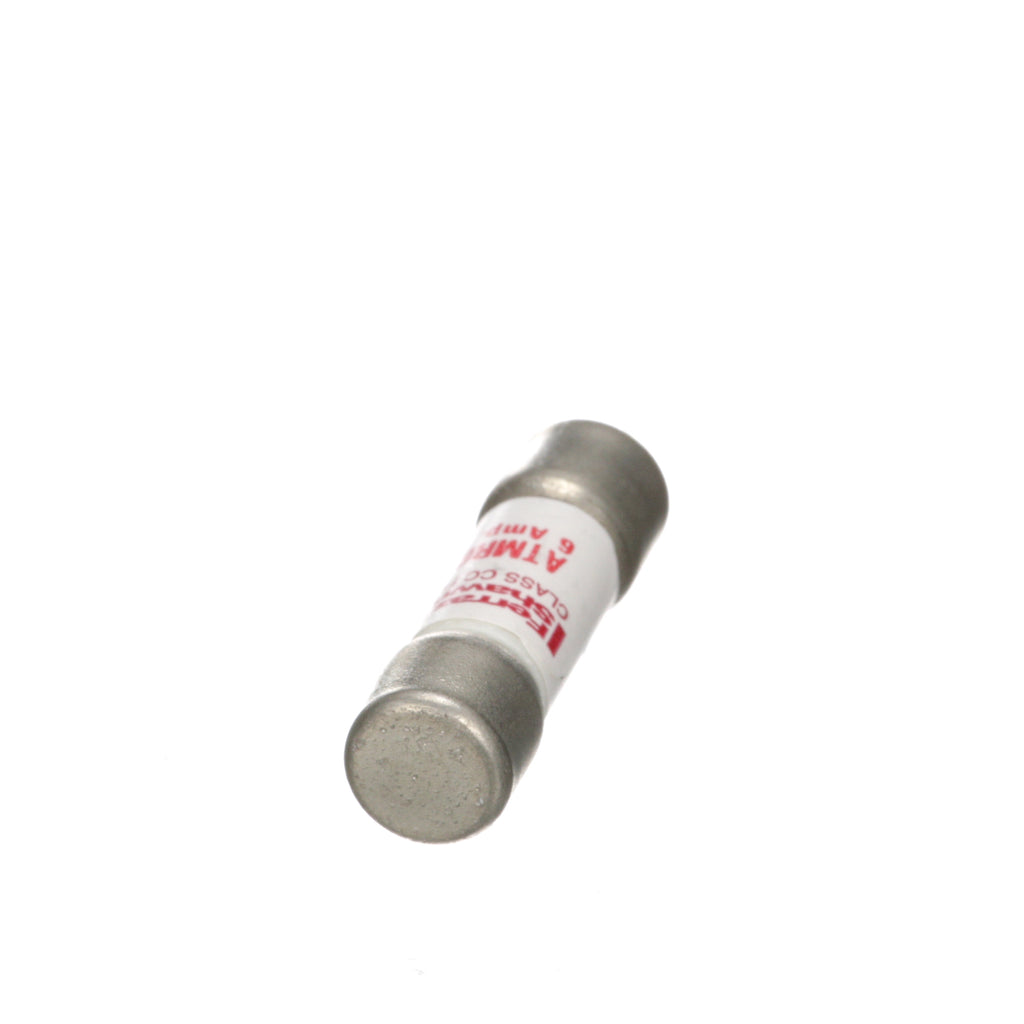

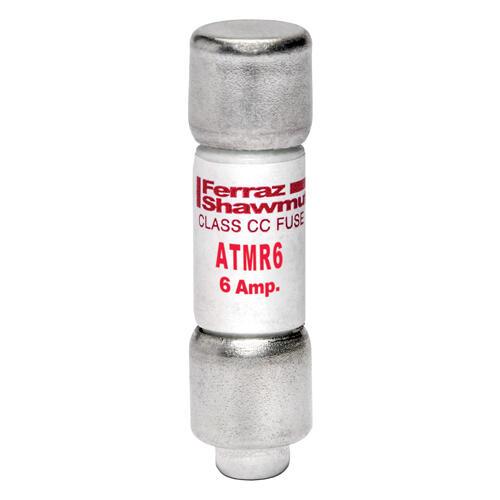

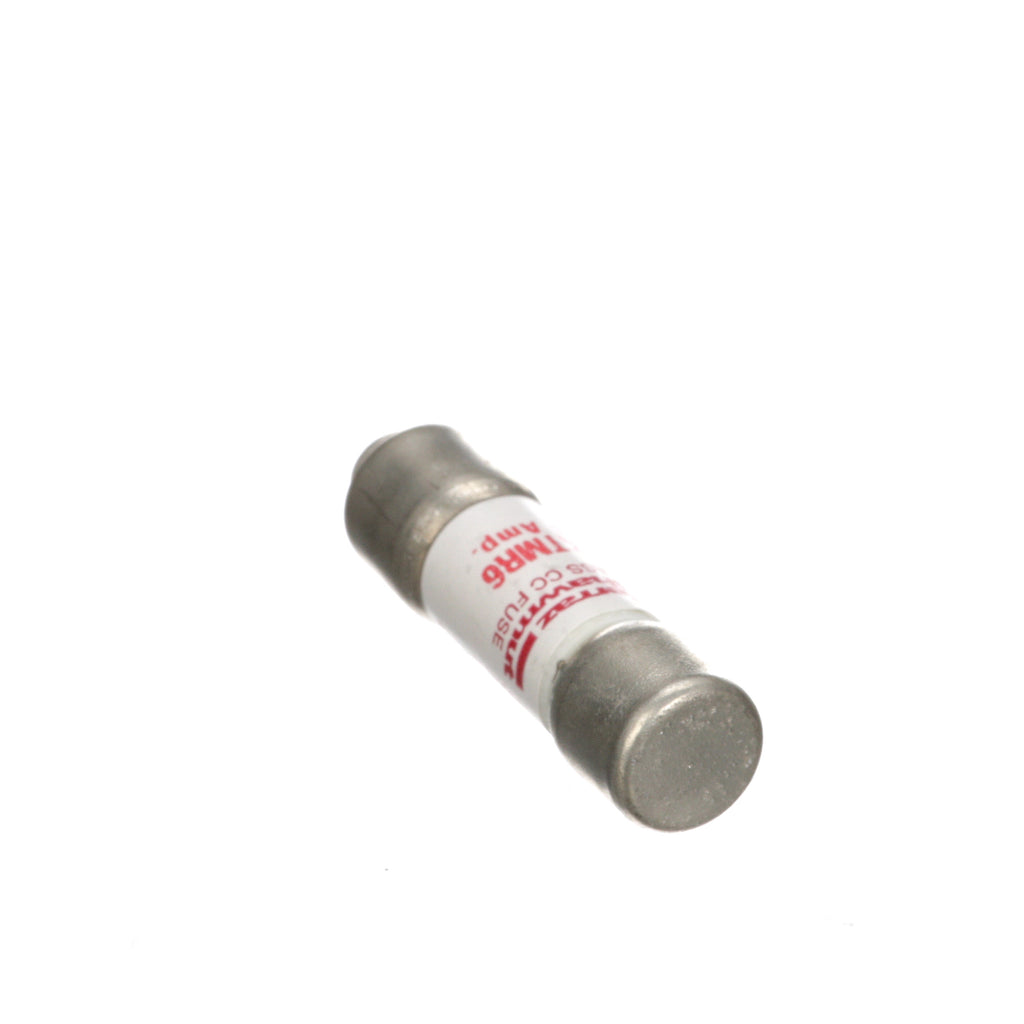

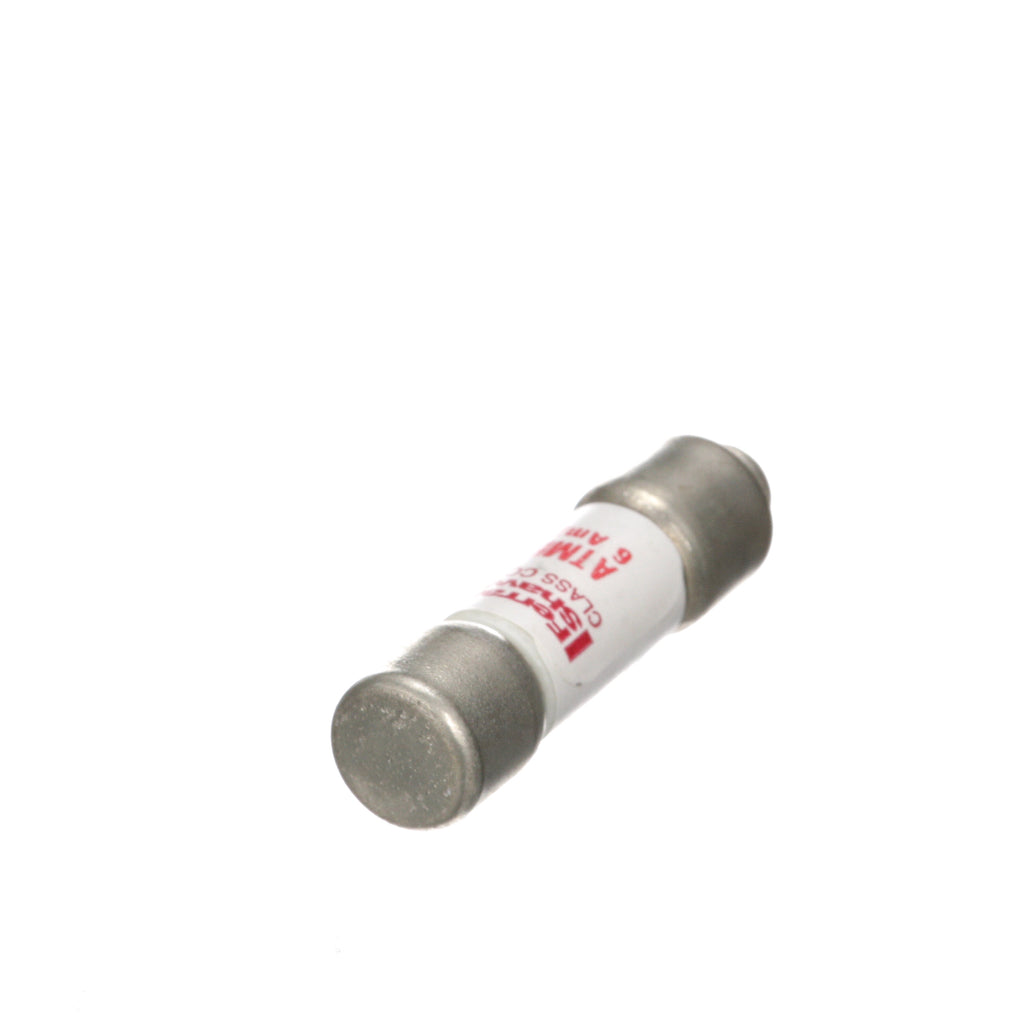

ATMR6 - Mersen 6 Amp 600V Fast-Acting Current Limiting Class CC Fuse, Ferrule Mount, 200kA AC/100kA DC Interrupt Rating, UL Listed, CSA Certified

ATMR6

ATMR6 is a Mersen fast-acting, current-limiting fuse designed for reliable protection of control circuits, lighting, and general loads.

This Class CC fuse features a compact cylindrical ferrule design, tin-plated copper terminals, and is rated for 600V AC/DC applications. It provides current-limiting protection where available short-circuit currents exceed 10,000 amperes, and its rejection dimensions prevent substitution by lesser-rated fuses. The ATMR6 is UL Listed and CSA Certified, ensuring compliance with industry standards for safety and performance.

Key Specifications
• Amperage: 6A
• Voltage: 600V AC/DC
• Poles: Single
• Mounting Type: Ferrule
• Interrupt Rating: 200kA AC, 100kA DC
• Series/Frame: ATMR (Amp-Trap)
• Trip Unit: Fast-acting, current-limiting
• Certifications: UL Listed (Standard 248-4), CSA Certified (C22.2 No. 248.4)
• Terminal Material: Tin-plated copper
• Dimensions: 10mm x 38mm (0.39" x 1.5")
• Application: Control circuits, lighting, general loads, branch circuit protection
• Rejection feature prevents substitution by lower-rated fuses

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ATMR6
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : ATMR
• Voltage : 600
• Amperage : 6
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 782001903909
• GTIN : 00782001903909
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 5
• Certification : UL/CSA
