Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

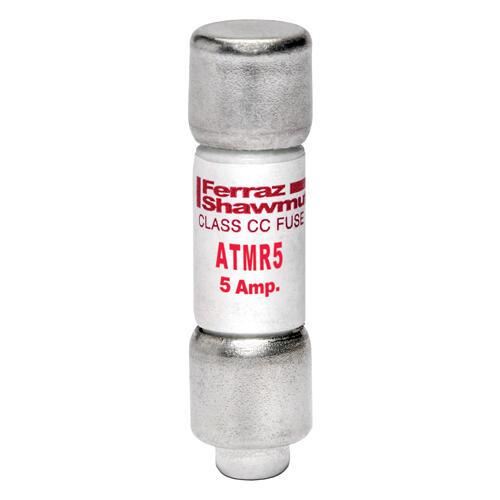

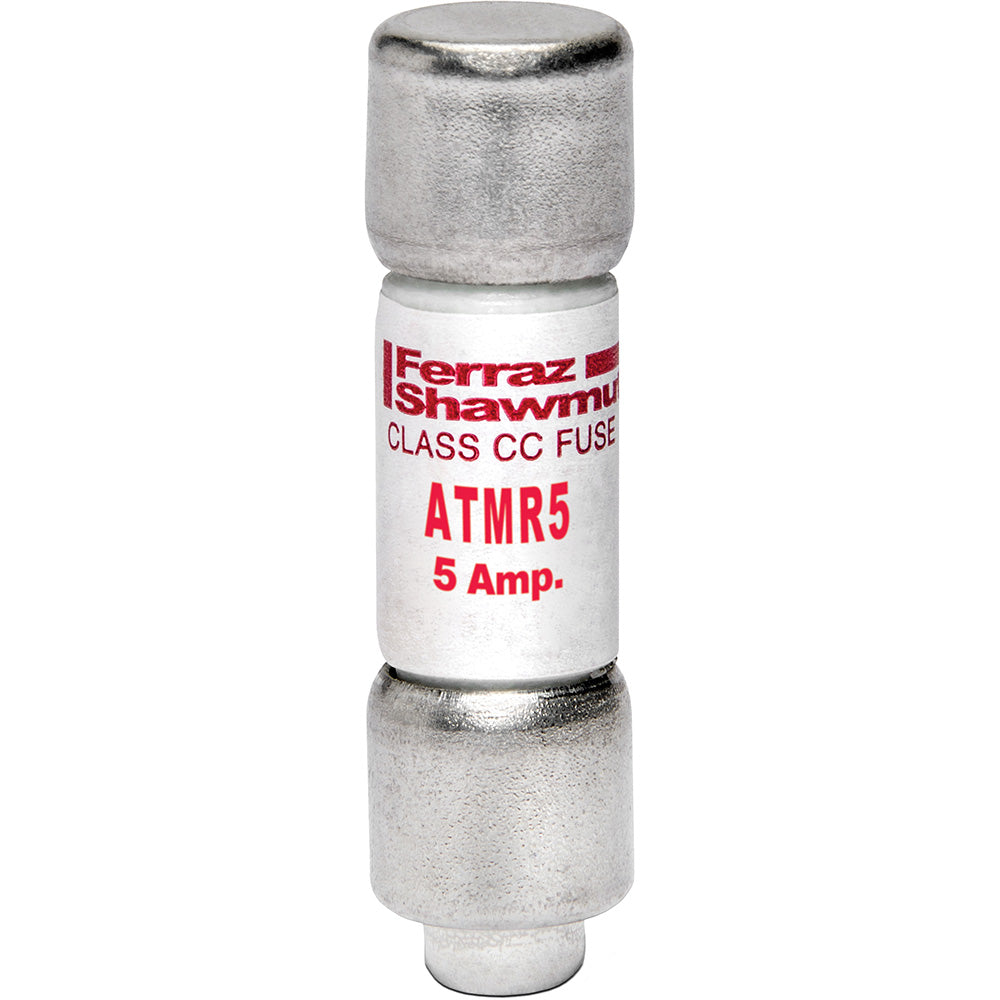

ATMR5
ATMR5 is a Mersen Ferraz Shawmut Class CC fast-acting fuse designed for reliable branch-circuit and control circuit protection.
This fuse features a 5A current rating, 600VAC/600VDC voltage rating, and a high 200kA interrupt capacity. It is constructed with a GMG insulating body, tin-plated copper ferrules, and a rejection-type clip mounting for secure installation. The ATMR5 is part of the Amp-Trap series and is approved to UL 248/248-4 and CSA C22.2 standards, ensuring compliance and safety in demanding electrical environments.
Key Specifications
- Part Number: ATMR5
- Manufacturer: Mersen, Ferraz Shawmut
- Amperage: 5A
- Voltage: 600VAC/600VDC
- Poles: Single
- Mounting Type: Clip (Ferrule)
- Interrupt Rating: 200kA at 600VAC, 100kA at 600VDC
- Series/Frame: Amp-Trap ATMR
- Trip Unit: Fast-acting (Class CC)
- Certifications: UL 248/248-4, CSA C22.2, ROHS Compliant
- Body Material: GMG
- Connection: Tin-plated copper
- Frequency: 50/60 Hz
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: ATMR5
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : ATMR
- Voltage : 600
- Amperage : 5
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001903893
- GTIN : 00782001903893
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL/CSA
