Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
ATMR30

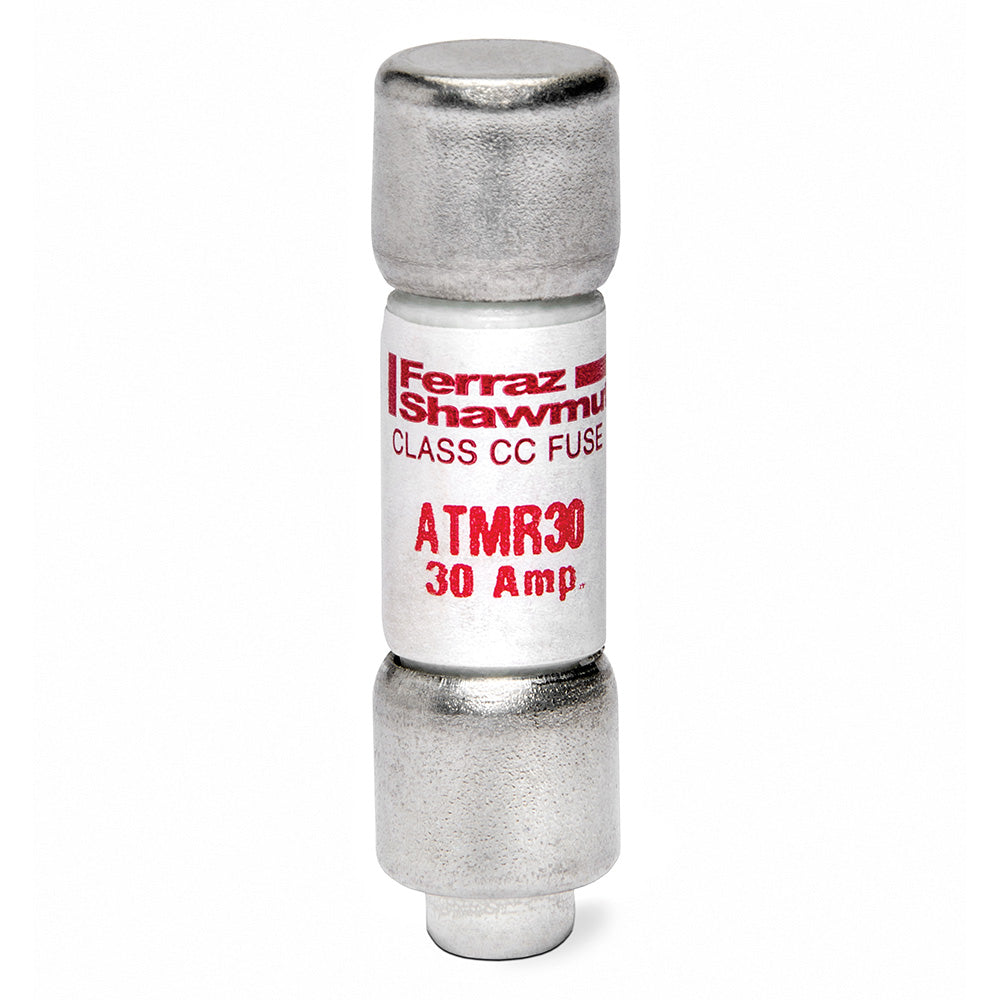

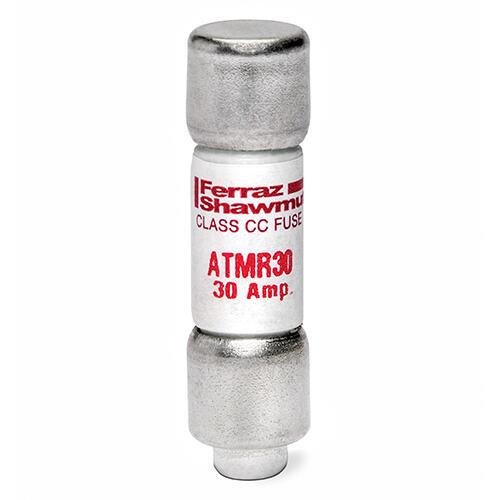

ATMR30 is a Mersen Class CC fast-acting fuse rated for 30 amps and 600 volts AC/DC, designed for branch circuit protection.This fuse features a compact Amp-Trap® HD design with ferrule terminals and tin-plated copper connections, providing reliable current-limiting protection with a 200kA interrupt rating. It is suitable for control circuits and transformers requiring fast-acting protection and meets UL/CSA standards.
- Amperage: 30 A
- Voltage Rating: 600 V AC/DC
- Fuse Class: Class CC
- Speed/Characteristic: Fast-Acting
- Mounting Type: Clip
- Interrupt Rating: 200 kA
- Terminal Type: Ferrule
- Terminal Material: Tin-Plated Copper
- Body Material: GMG
- Frequency: 50/60 Hz
- ROHS Compliant: Yes
- Product Length: 1.5 in
Specifications
- Part Number: ATMR30
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : ATMR
- Voltage : 600
- Amperage : 30
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001904845
- GTIN : 00782001904845
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL/CSA
