Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

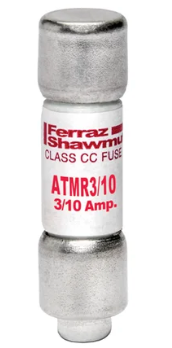

ATMR3/10
ATMR3/10 is a Class CC fast-acting fuse from Ferraz Shawmut Mersen designed for branch circuit protection in control circuits.This fuse features a 0.3 ampere rating with a voltage rating of 600VAC and 600VDC. It has a compact 1.5 inch length and 0.41 inch diameter with a clip mounting type. The fuse is very current-limiting with a high interrupt rating of 200kA AC, suitable for protecting sensitive equipment. It is UL and CSA certified and RoHS compliant, with tin-plated copper ferrule terminals and a fiberglass body for durability.
- Key Specifications
- Amperage: 0.3 A
- Voltage Rating: 600 VAC / 600 VDC
- Fuse Class: Class CC
- Speed: Fast-Acting
- Interrupt Rating: 200 kA AC
- Mounting Type: Clip
- Body Material: Fiberglass
- Terminal Material: Tin-Plated Copper
- Length: 1.5 inches
- Diameter: 0.41 inches
- Certifications: UL 248-4, CSA C22.2
- RoHS Compliant
Specifications
- Part Number: ATMR3/10
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : ATMR
- Voltage : 600
- Amperage : 3
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001903404
- GTIN : 00782001903404
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.02
- Certification : UL/CSA
