Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

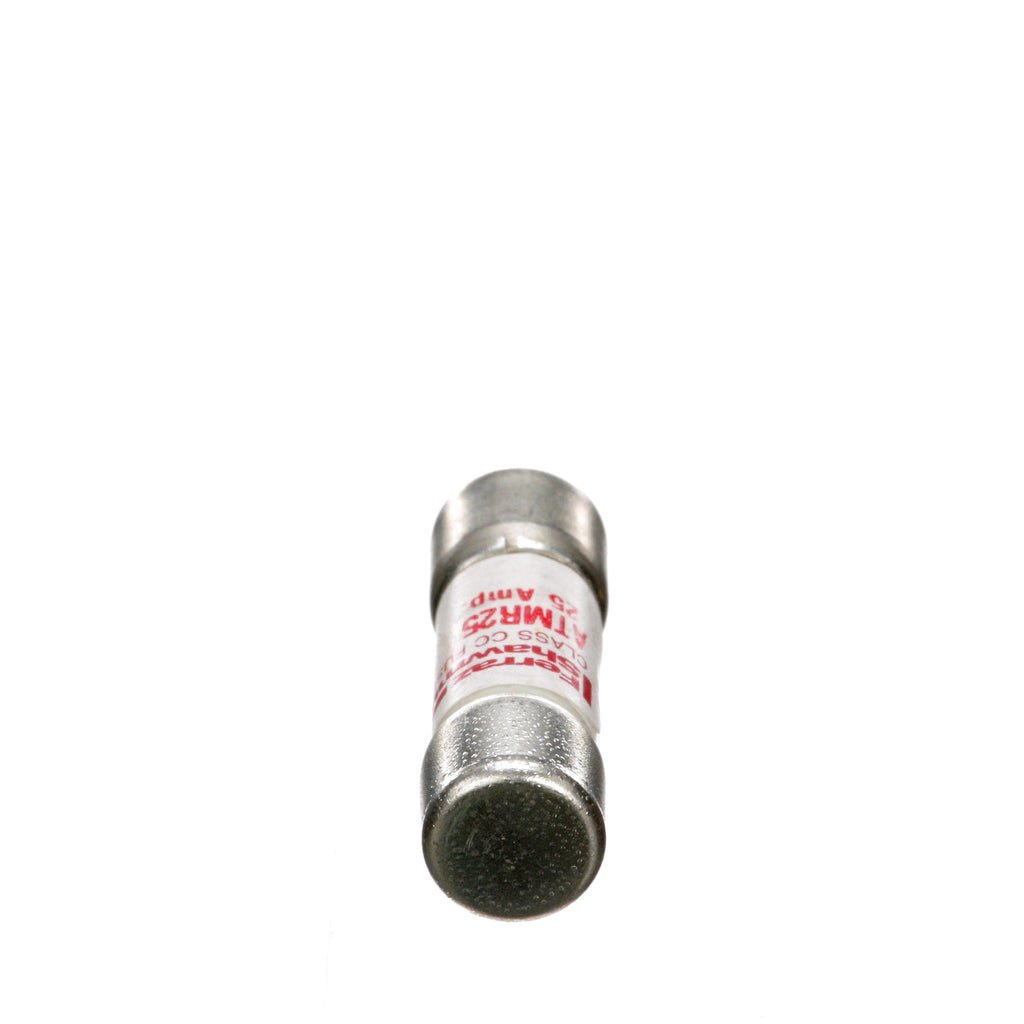

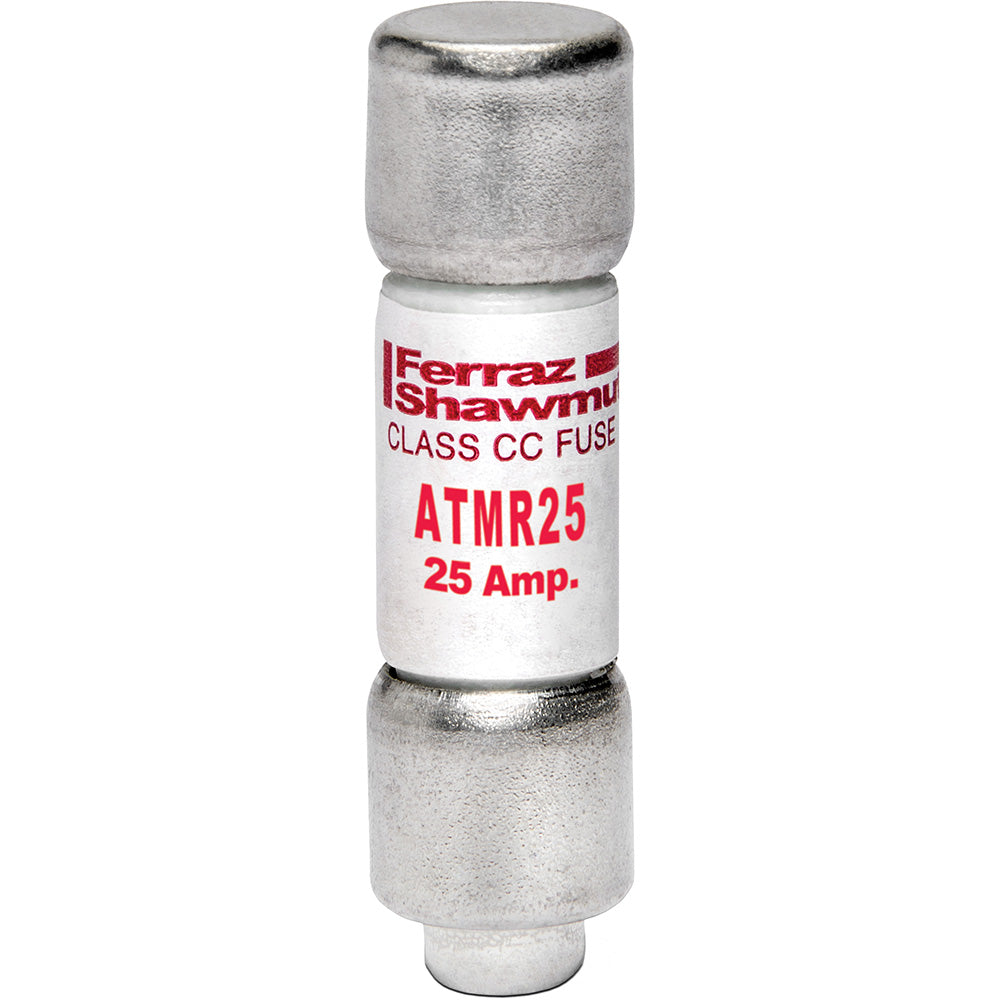

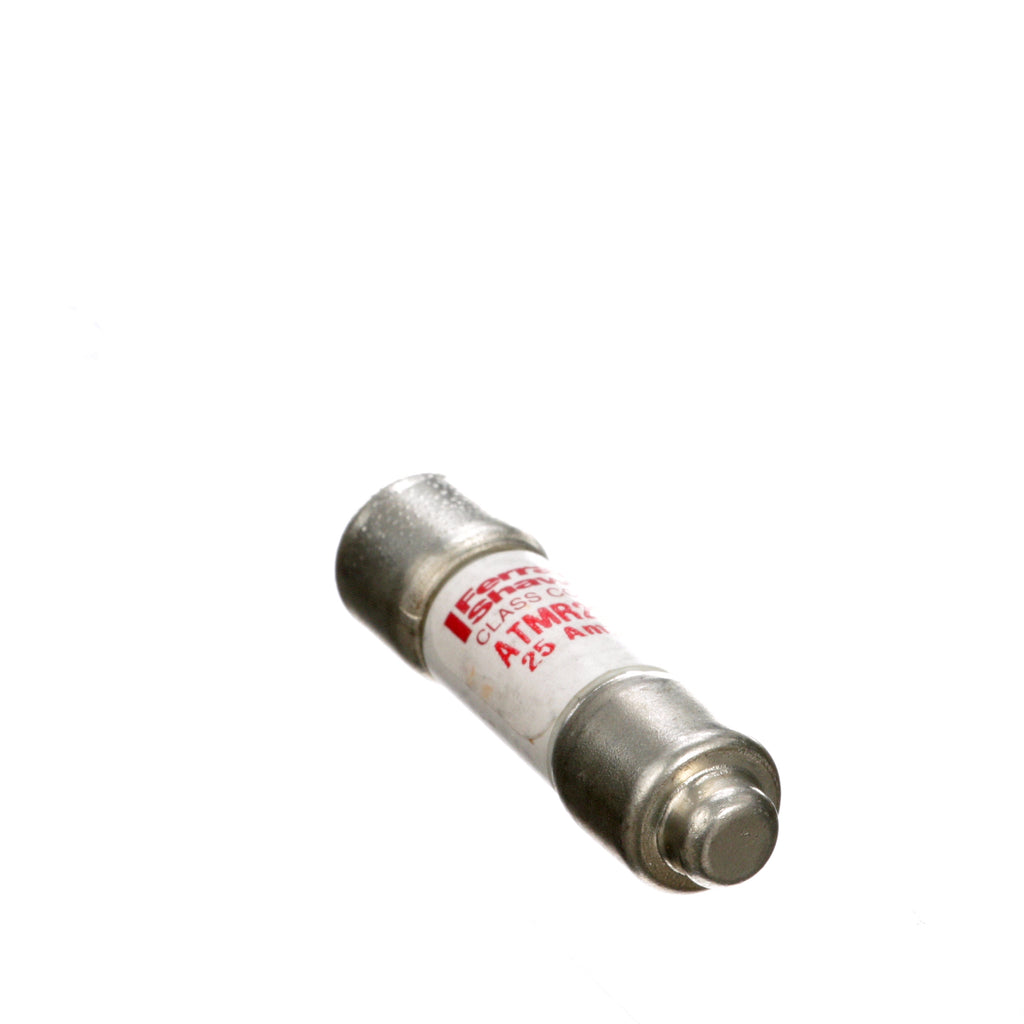

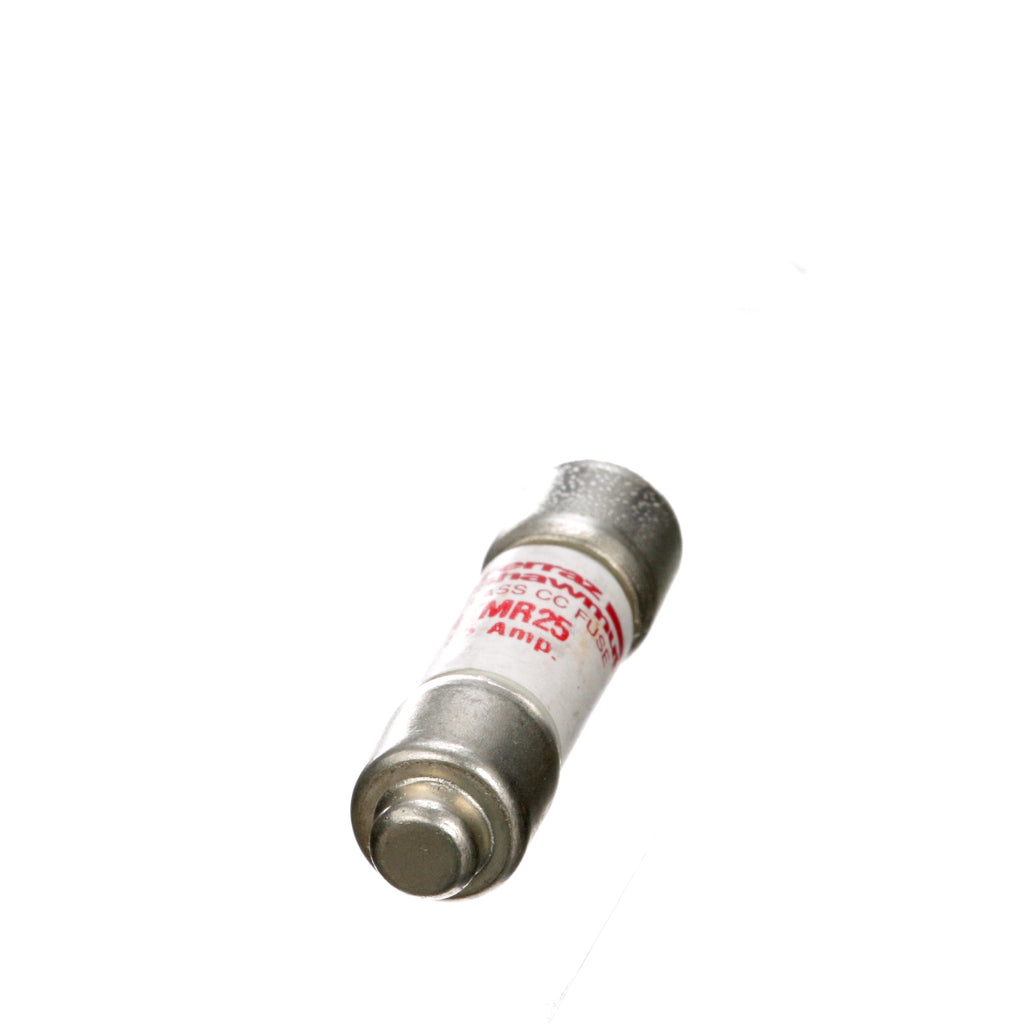

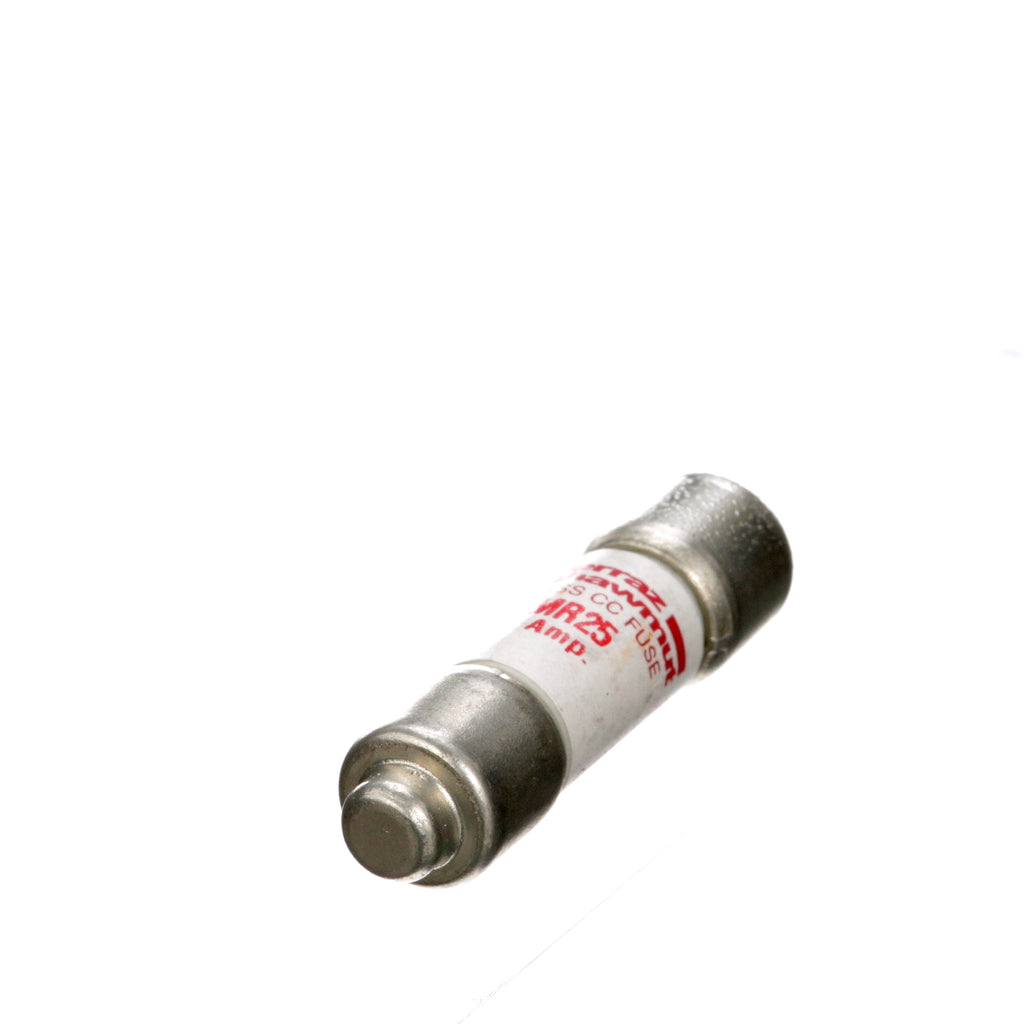

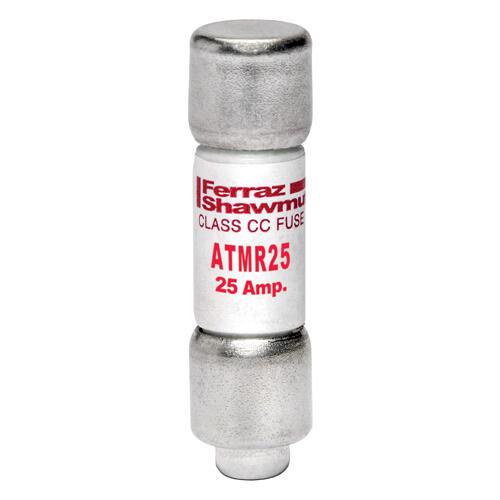

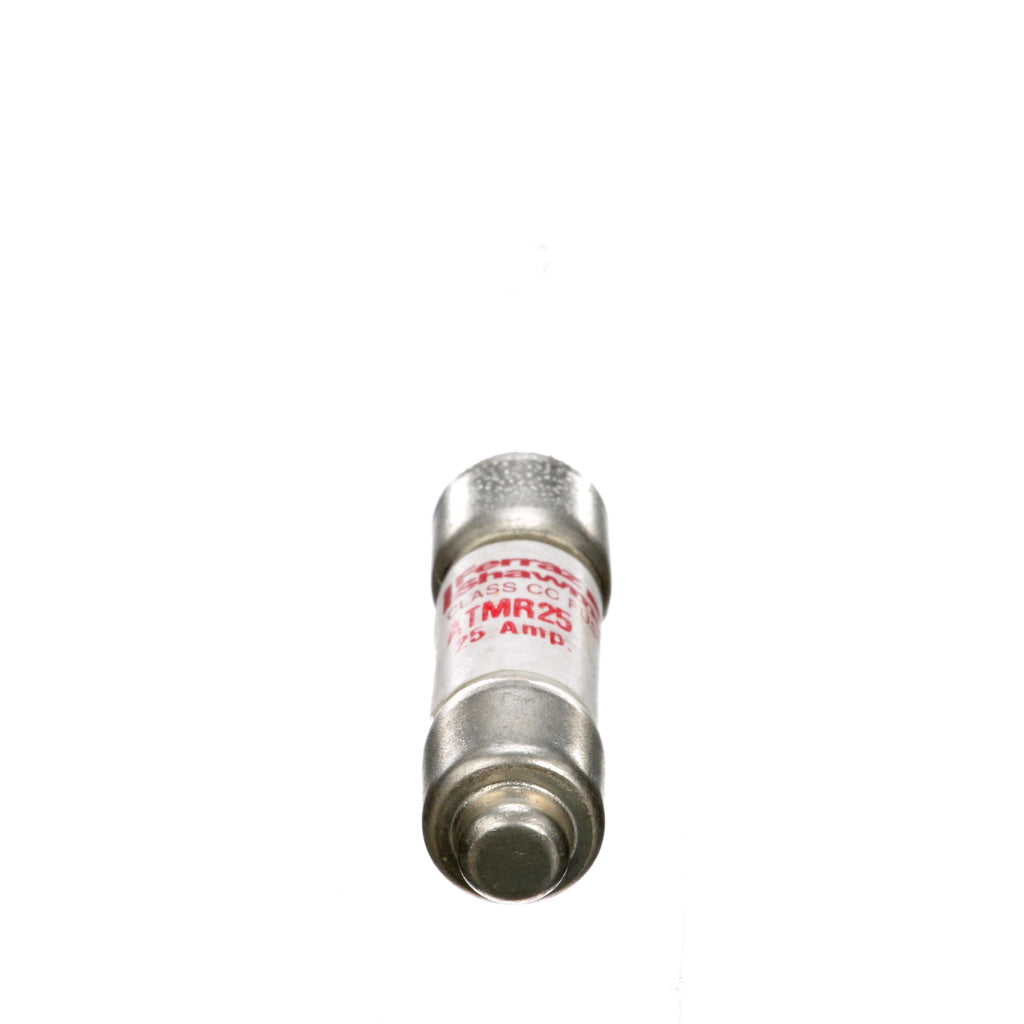

ATMR25
ATMR25 is a fast-acting, current-limiting fuse designed for reliable protection in control circuits, lighting, and general loads. This compact fuse provides robust performance in demanding electrical environments. The ATMR25 offers a 25A current rating and a 600V AC/DC voltage rating, making it suitable for a wide range of applications. Its rejection design prevents substitution with lower-rated fuses, ensuring safety and compliance. The fuse is UL 248/248-4 and CSA C22.2 approved, and features a high interrupt rating for added protection.
- Amperage: 25A
- Voltage: 600V AC/DC
- Fuse Type: Fast-Acting, Current Limiting
- Class: CC
- Interrupt Rating: 200kA AC, 100kA DC
- Physical Size: 0.41" Dia x 1.5" Length
- Mounting Type: Rejection Type
- Series/Frame: ATMR
- Certifications: UL 248/248-4, CSA C22.2
- Applications: Control Circuits, Lighting, General Loads
- Features: Current Limiting, Rejection Design
- Standards: UL, CSA
Specifications
- Part Number: ATMR25
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : ATMR
- Voltage : 600
- Amperage : 25
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001904838
- GTIN : 00782001904838
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL/CSA
