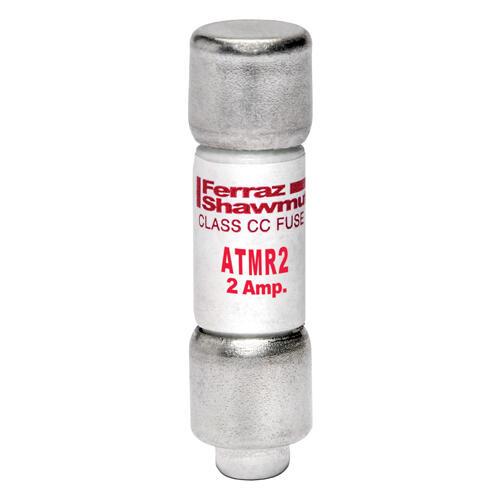

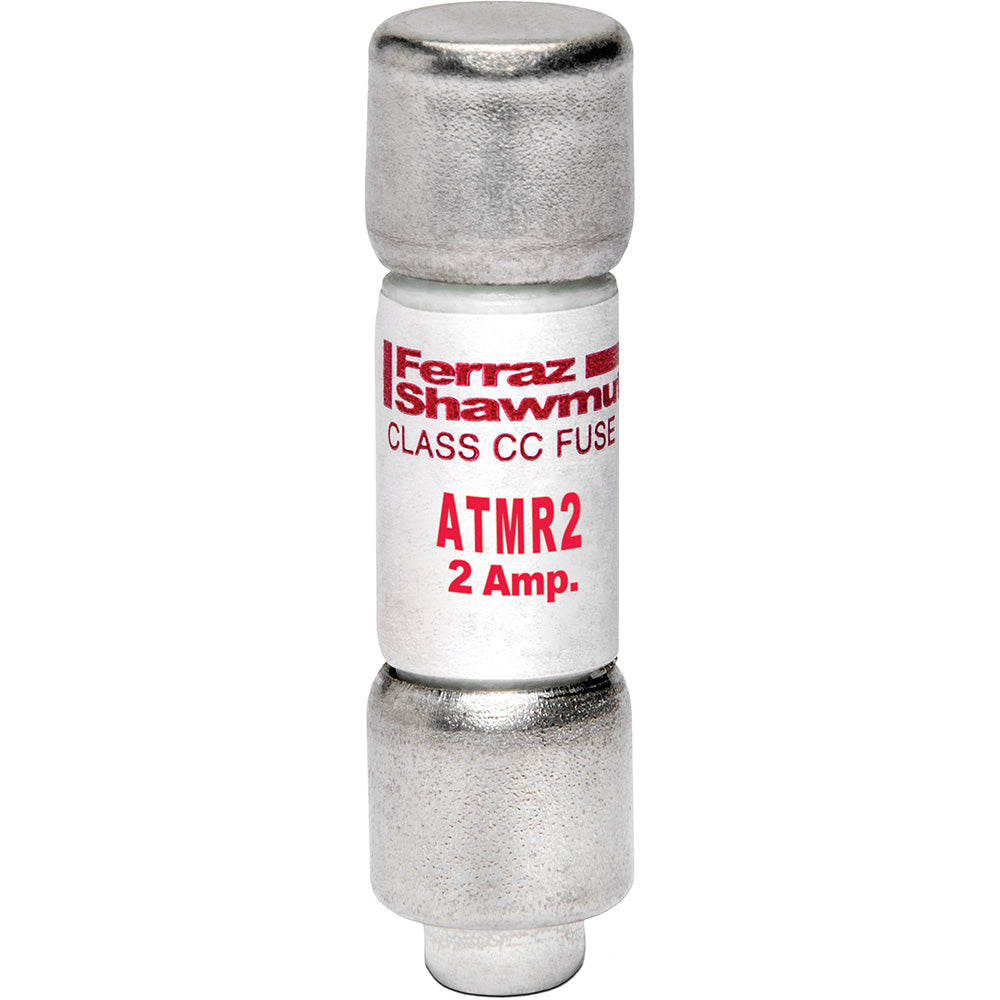

ATMR2 - Mersen Ferraz Shawmut 2A 600V Class CC Fast-Acting Fuse with Ferrule Terminals

ATMR2

ATMR2 is a 2 amp, 600 volt Class CC fast-acting fuse designed for branch-circuit protection in low voltage applications.ATMR2 fuses feature the smallest dimensions for 600V fuses, with a 200kA interrupt rating and ferrule-type tin-plated copper terminals for reliable connection. This fuse is UL listed for both AC and DC use, RoHS compliant, and mounts via clip for easy installation.

Key Specifications
• Amperage: 2 A
• Voltage Rating: 600 VAC / 600 VDC
• Fuse Class: Class CC
• Speed/Characteristic: Fast-Acting
• Interrupt Rating: 200 kA
• Mounting Type: Clip
• Terminal Type: Ferrule
• Terminal Material: Tin-Plated Copper
• Dimensions: 0.41 in diameter x 1.5 in length
• Compliance: UL Listed, RoHS Compliant
• Frequency: 50/60 Hz
• Body Material: GMG

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ATMR2
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : ATMR
• Voltage : 600
• Amperage : 2
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 782001903848
• GTIN : 00782001903848
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 5
• Certification : UL/CSA
