Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
ATMR15

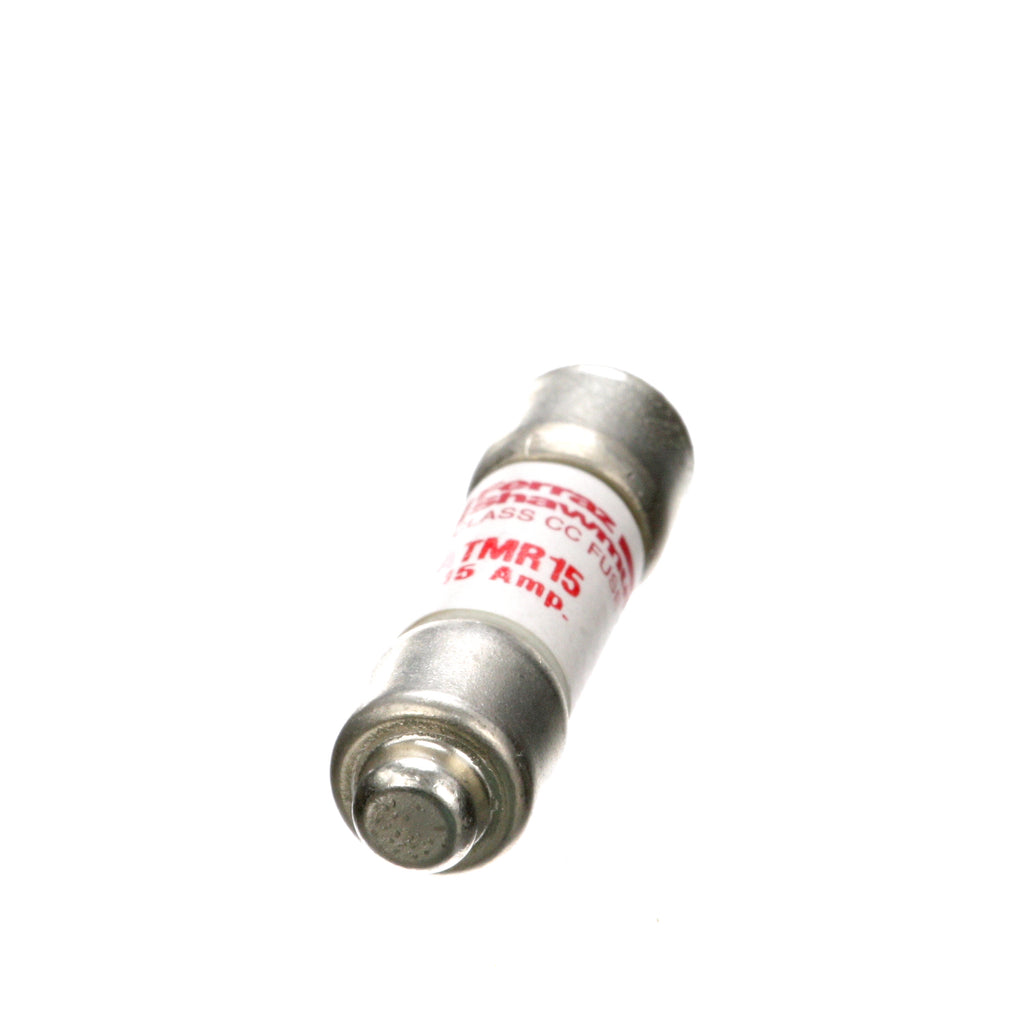

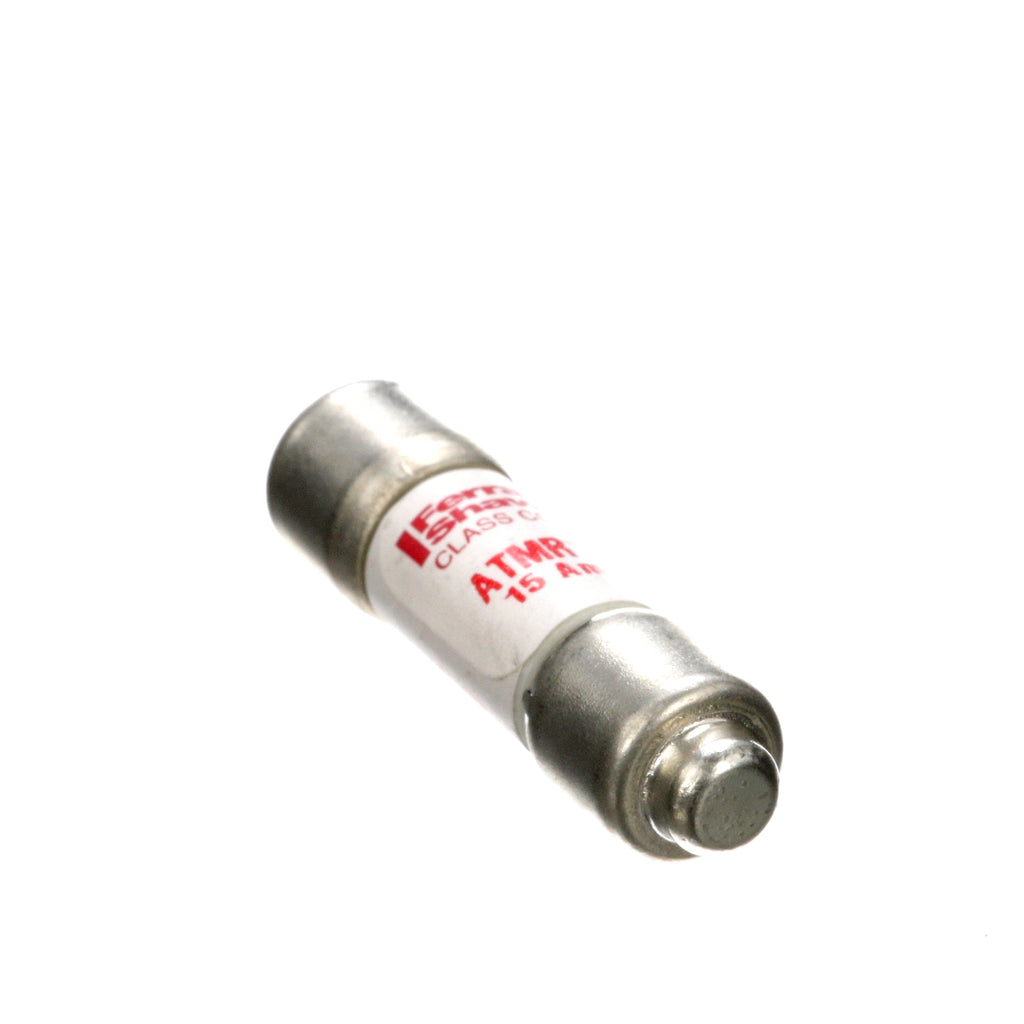

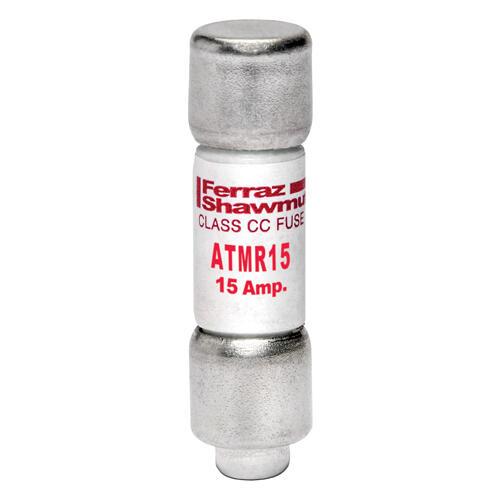

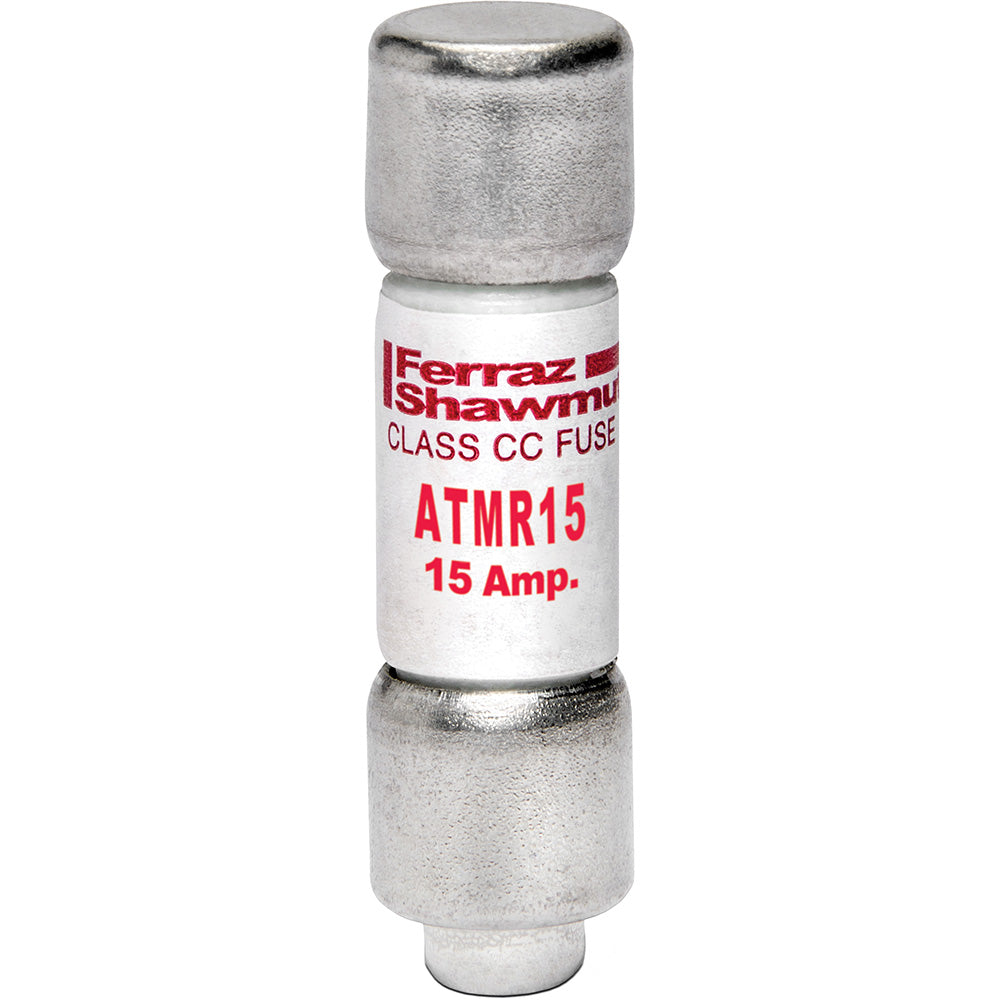

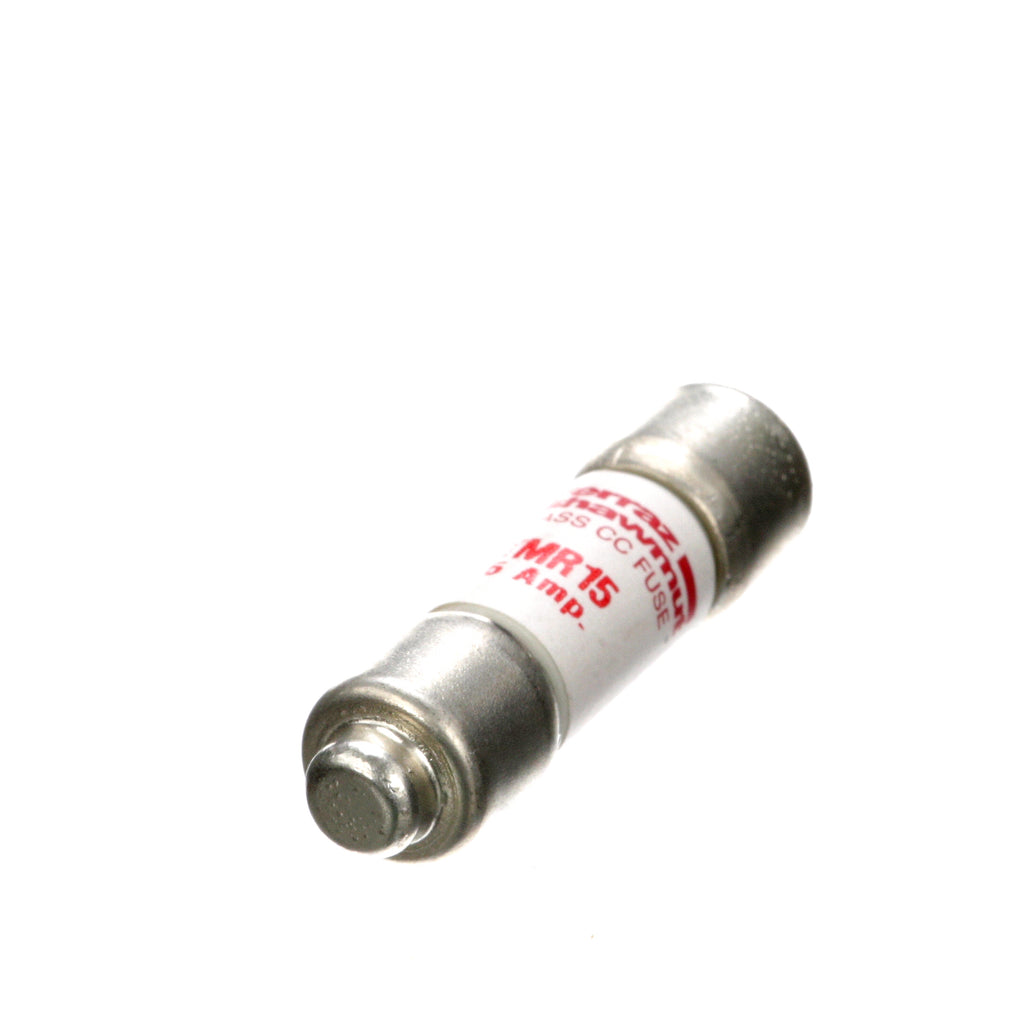

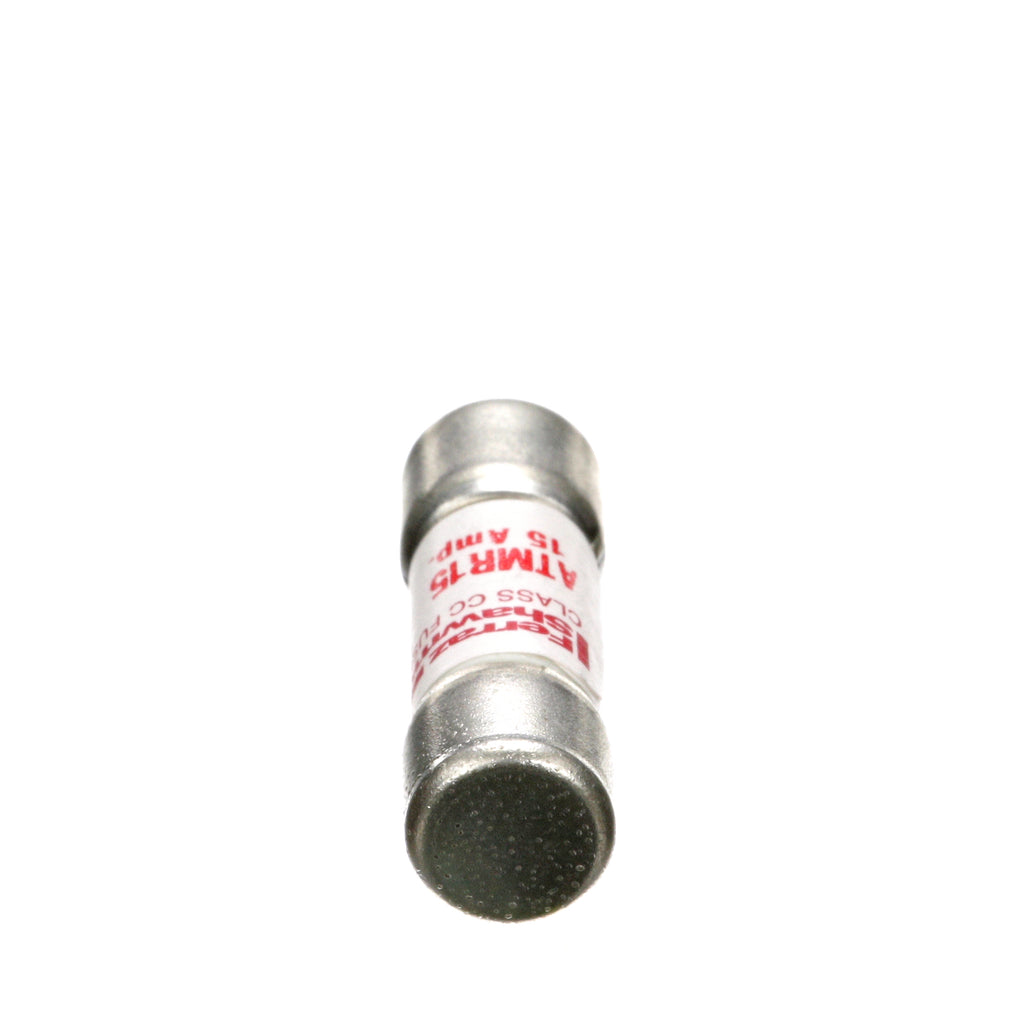

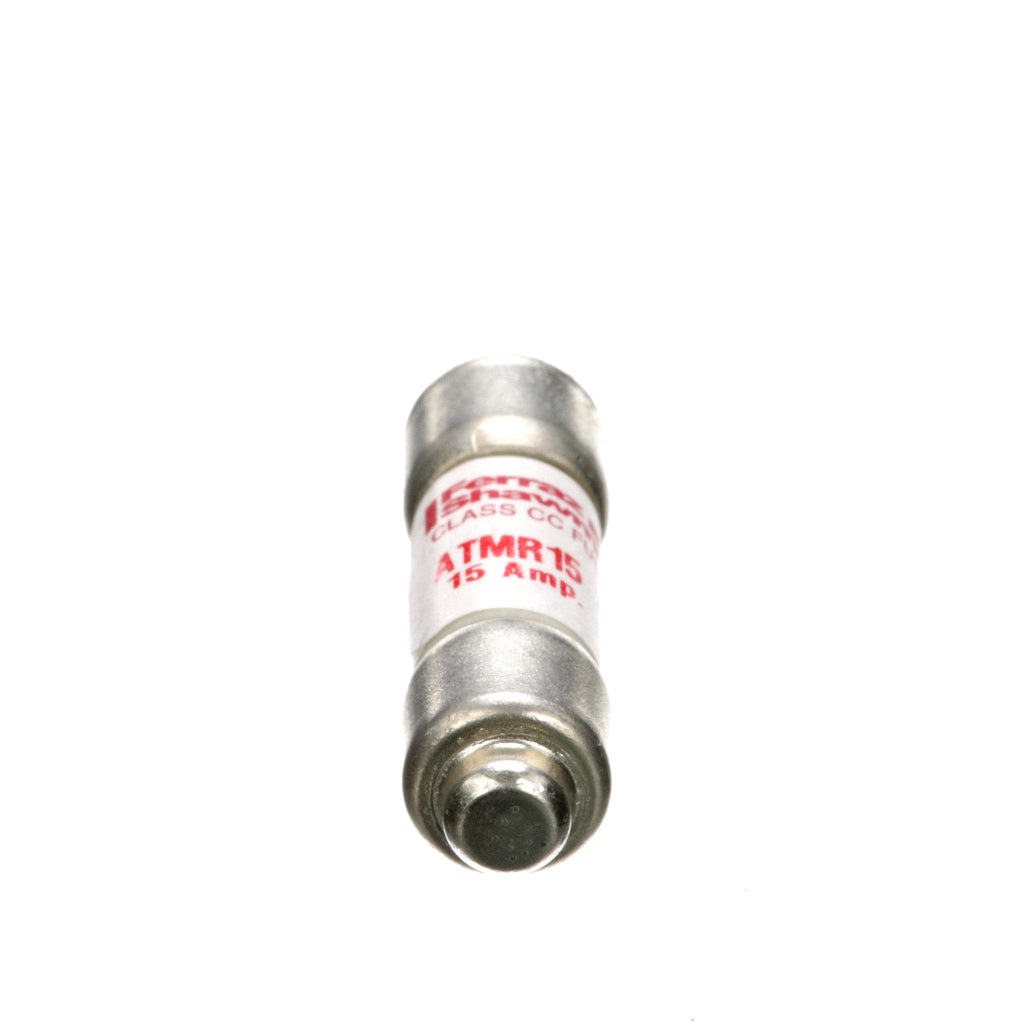

ATMR15 is a Mersen 15 amp, 600 volt Class CC fast-acting Amp-Trap fuse designed for branch circuit and control circuit protection.This fuse features a fast-acting, current-limiting design with a 200kA interrupt rating at 600VAC and 100kA at 600VDC. It has a ferrule connection and rejection-style dimensions to prevent substitution with lower-rated fuses. The compact 1.5 x 0.41 inch size makes it ideal for economical protection of control circuits and transformers where short circuit currents exceed 10,000 amperes.
- Amperage: 15A
- Voltage Rating: 600VAC / 600VDC
- Class: CC
- Fuse Type: Fast-Acting Amp-Trap
- Interrupt Rating: 200kA AC, 100kA DC
- Connection: Ferrule
- Size: 1.5 x 0.41 inches
- Rejection-style design to prevent replacement errors
- Suitable for branch circuit and control circuit protection
- Compact dimensions for space-saving installation
Specifications
- Part Number: ATMR15
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : ATMR
- Voltage : 600
- Amperage : 15
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001904814
- GTIN : 00782001904814
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL/CSA
