2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
ATMR1/2

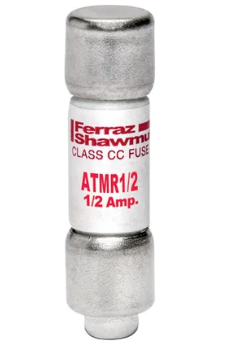

ATMR1/2 is a 1/2 amp, 600 volt AC/DC Class CC fast-acting fuse by Ferraz Shawmut Mersen designed for branch circuit protection.This Amp-Trap ATMR fuse features a compact cylindrical body with rejection style to prevent replacement errors. It provides very current-limiting, fast-acting protection with a 200,000 A interrupt rating for AC and 100,000 A for DC. The fuse is UL listed to Standard 248-4 and CSA certified to C22.2 No. 248.4, suitable for control circuits and transformers.
- Key Specifications
- Amperage: 1/2 Amp
- Voltage Rating: 600 VAC/VDC
- Interrupt Rating: 200kA AC / 100kA DC
- Fuse Class: CC
- Fast-Acting, Current-Limiting
- Physical Size: 13/32" diameter x 1 1/2" length
- Rejection Style for correct replacement
- UL Listed (File E2137)
- CSA Certified (C22.2 No. 248.4)
- Cylindrical Body
Specifications
- Part Number: ATMR1/2
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : ATMR
- Voltage : 600
- Amperage : 1
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 078200190341
- GTIN : 00782001903411
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL/CSA
