Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
ATMR1/10

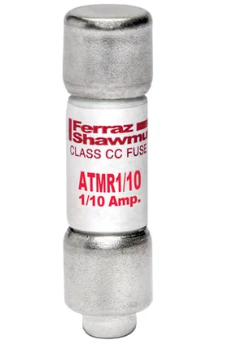

ATMR1/10 is a Class CC, fast-acting fuse designed for economical branch-circuit protection in both AC and DC applications. This compact fuse features a ferrule mounting style and is suitable for use in a wide range of electrical systems. The ATMR1/10 offers reliable protection with a 600VAC/DC rating and a current rating of 0.1A. Its fast-acting characteristic ensures rapid response to overcurrent conditions, helping to safeguard sensitive equipment. The fuse is constructed with a tin-plated copper terminal and a GMG insulating body for durability and performance.
- Part Number: ATMR1/10
- Manufacturer: Mersen
- Fuse Class: Class CC
- Speed/Characteristic: Fast-Acting
- Rated Voltage AC: 600 V
- Rated Voltage DC: 600 V
- Current Rating: 0.1 A
- Interrupt Rating: 200 kA at 600VAC, 100 kA at 600VDC
- Mounting: Ferrule
- Terminal Material: Tin-Plated Copper
- Body Material: GMG
- Standards: UL/CSA
Specifications
- Part Number: ATMR1/10
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : ATMR
- Voltage : 600
- Amperage : 1
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001903367
- GTIN : 00782001903367
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.02
- Certification : UL/CSA
