Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
ATM5

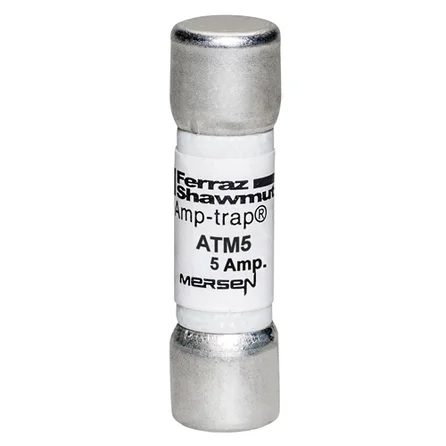

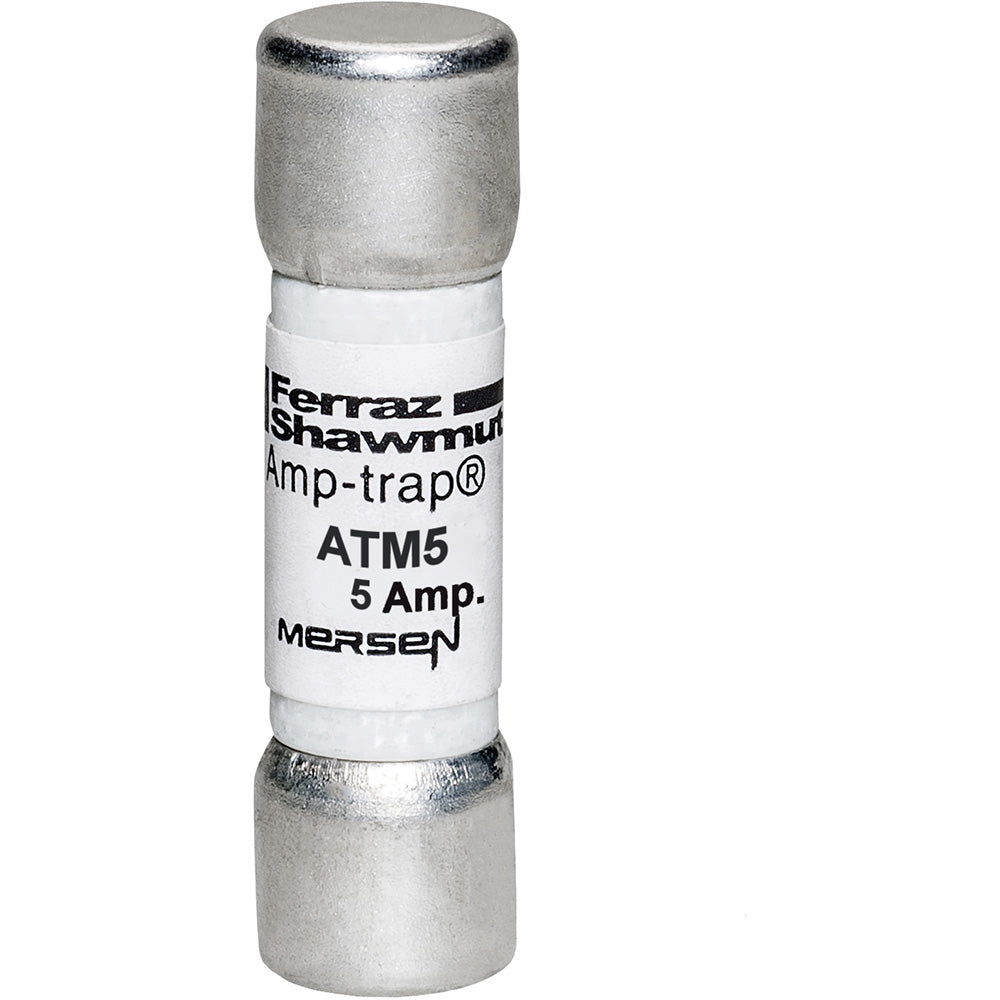

ATM5 is a fast-acting midget fuse from Mersen, designed for reliable circuit protection in a wide range of industrial and commercial applications. This fuse features a 5A ampere rating, 600VAC/DC voltage rating, and a 100kA interrupting rating for robust performance. The ATM5 is commonly used for supplemental protection of small motors, transformers, and circuits with high inrush currents. It features a ferrule terminal and is compatible with standard fuse holders. The ATM5 is part of the Amp-Trap® series, known for its durability and fast-acting response. It is suitable for both AC and DC applications, including photovoltaic and solar systems. The fuse is RoHS compliant and constructed with a GMG insulating material for added safety and reliability.
- Part Number: ATM5
- Manufacturer: Mersen
- Series: Amp-Trap® ATM
- Amperage: 5A
- Voltage: 600VAC / 600VDC
- Interrupt Rating: 100kA
- Mounting Type: Clip/Ferrule
- Fuse Class: Midget
- Speed/Characteristic: Fast-Acting
- Terminal Type: Ferrule
- Body Material: GMG
- RoHS Compliant: Yes
Specifications
- Part Number: ATM5
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : ATM
- Voltage : 600
- Amperage : 5
- AIC rating : 100kA@600V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 078200190075
- GTIN : 00782001900755
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : CSA, UL
