Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
ATM4

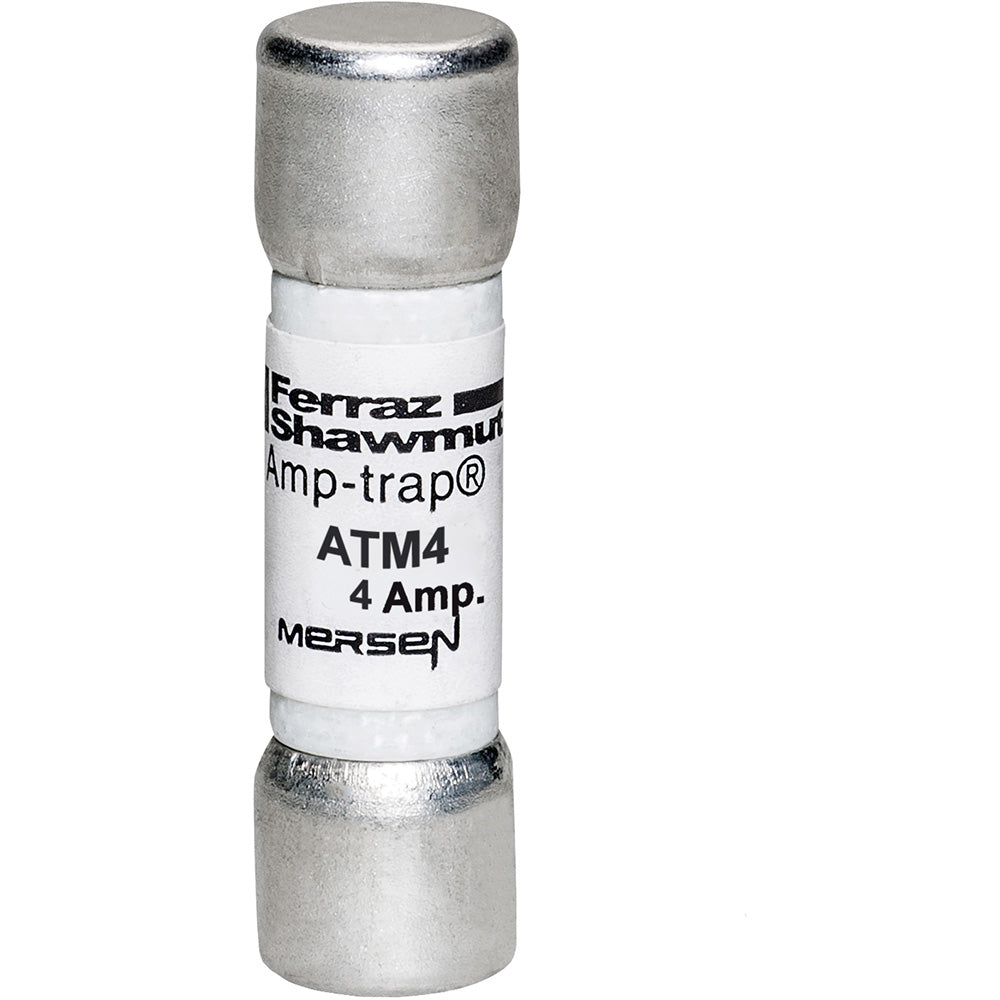

ATM4 is a Mersen 4 Amp fast-acting midget fuse rated for 600 volts AC and DC with a 100kA interrupting rating.ATM4 Amp-Trap® midget fuses provide reliable supplemental protection for small motors, transformers, and circuits with high inrush currents. They feature a ferrule terminal type and clip mounting, are UL and CSA certified, and comply with RoHS standards. The fuse size is 10 mm x 38 mm with a body made of GMG insulating material and tin-plated copper terminals.
- Amperage: 4 A
- Voltage Rating: 600 VAC / 600 VDC
- Interrupt Rating: 100 kA
- Fuse Class: Midget
- Trip Characteristic: Fast-Acting
- Terminal Type: Ferrule
- Mounting Type: Clip
- Certifications: UL Listed, CSA Certified, RoHS Compliant
- Fuse Size: 10 mm x 38 mm
- Material: GMG body, tin-plated copper terminals
- Product Length: 1.5 in
Specifications
- Part Number: ATM4
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : ATM
- Voltage : 600
- Amperage : 4
- AIC rating : 100kA@600V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 078200190074
- GTIN : 00782001900748
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : CSA, UL
