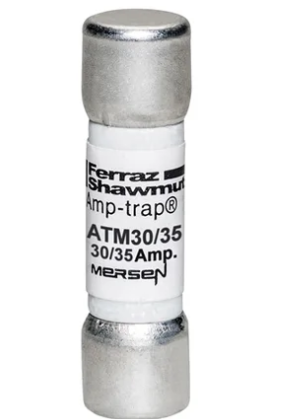

ATM30/35 - Mersen Ferraz Shawmut 35A 600V AC/DC Midget Fast-Acting Fuse ATM Series

ATM30/35

ATM30/35 is a midget fast-acting fuse from Mersen Ferraz Shawmut designed for 35 ampere and 600 volts AC/DC applications.This fuse belongs to the Amp-Trap® ATM series, featuring a fast-acting characteristic suitable for supplemental protection of small motors and transformers. It has a 1-pole configuration with a clip mounting type and a 100kA interrupting rating at 600 volts. The fuse body is 1.5 inches long and 0.41 inches in diameter, with tin-plated copper ferrule terminals. It is UL 248-14 and CSA C22.2 certified, RoHS compliant, and designed for both AC and DC circuits.

Key Specifications
• Amperage: 35 A
• Voltage Rating: 600 V AC/DC
• Fuse Type: Midget Fast-Acting
• Series/Frame: ATM
• Poles: 1
• Mounting Type: Clip
• Interrupting Rating: 100 kA
• Terminal Type: Tin-Plated Copper Ferrule
• Length: 1.5 in
• Diameter: 0.41 in
• Certifications: UL 248-14, CSA C22.2
• RoHS Compliant: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: ATM30/35
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 600
• Amperage : 35
• AIC rating : 100kA@600V
• Diameter : 0.41
• Class Rating : AM
• Barrels : 1



Product Data

• UPC : 782001900595
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 25
• Certification : CSA, UL
