- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
ATM20

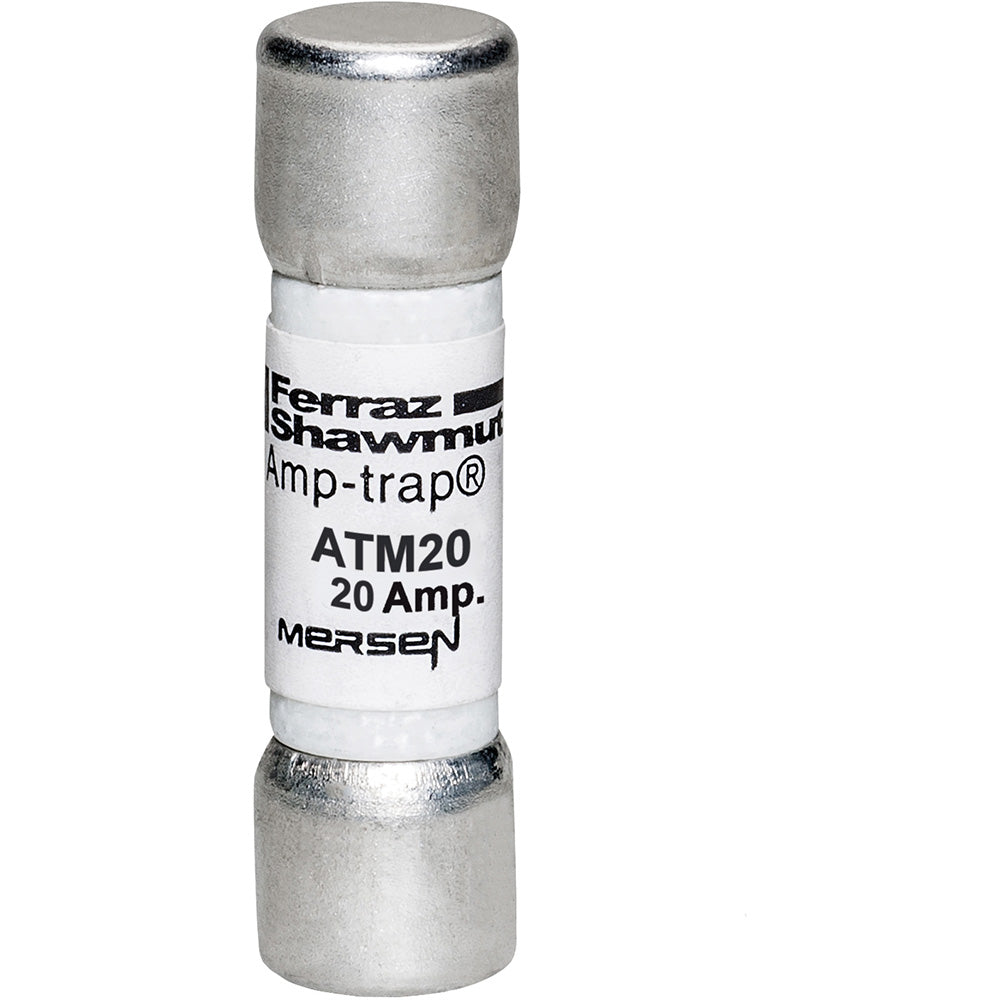

ATM20 is a Mersen 20 amp fast acting midget fuse designed for low voltage applications up to 600 volts AC/DC with a 100 kA interrupt rating.This fuse features a cylindrical body with clip mounting for easy installation, providing extended ratings for special protection of capacitors and circuits with high inrush currents. It is non-indicating, non-rejection type, with a ferrule terminal and fiber material construction. The ATM20 is suitable for supplemental protection of small motors and transformers and is RoHS compliant with UL and CSA certifications.
- Key Specifications
- Amperage: 20 A
- Voltage Rating: 600 VAC/VDC
- Interrupt Rating: 100 kA
- Fuse Type: Fast Acting
- Body Type: Cylindrical Midget
- Mounting Type: Clip Mount
- Terminal Type: Ferrule
- Material: Fiber
- Response Time: 25 seconds
- Indicating: Non-Indicating
- Rejection Type: Non-Rejection
- Certifications: UL E33925, CSA C22.2 No. 248.14, RoHS Compliant
Specifications
- Part Number: ATM20
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : ATM
- Voltage : 600
- Amperage : 20
- AIC rating : 100kA@600V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 782001900700
- GTIN : 00782001900700
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.02 lb
- Certification : CSA, UL
