Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
ATM2

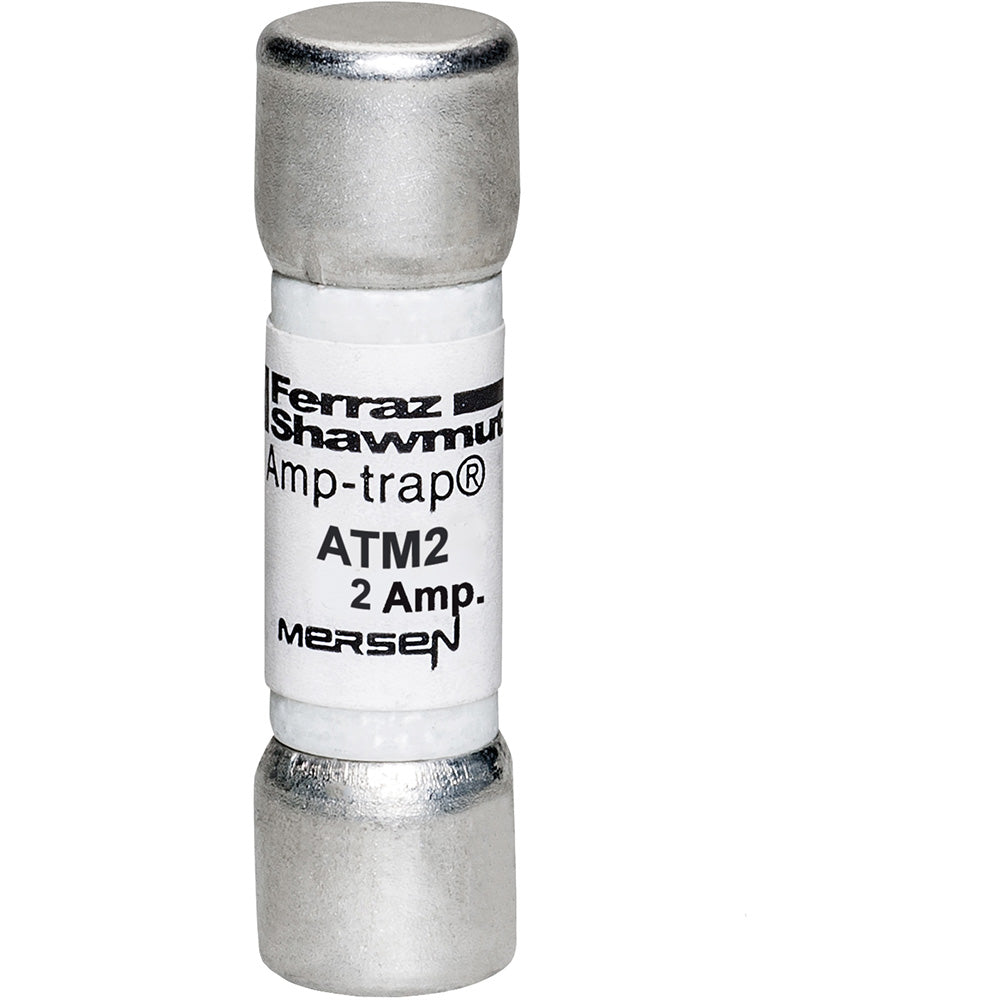

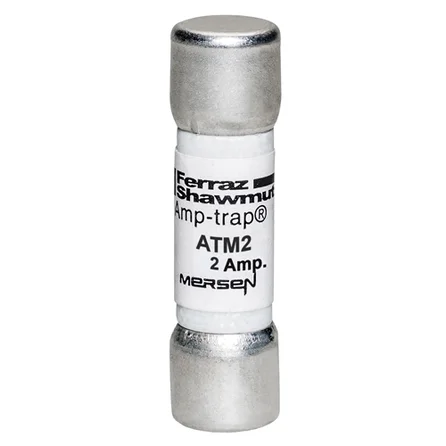

ATM2 is a Mersen fast-acting midget fuse rated for 2 amperes and 600 volts AC/DC with a 100kA interrupting rating.ATM2 features a compact 1.5 inch length and 0.41 inch diameter design with a clip mounting type and tin-plated copper ferrule terminals. It is ideal for protecting circuits with high inrush currents and capacitors, compliant with UL and RoHS standards.
- Key Specifications
- Amperage: 2 A
- Voltage Rating: 600 V AC/DC
- Fuse Type: Fast-Acting Midget
- Interrupt Rating: 100 kA
- Mounting Type: Clip
- Terminal Material: Tin-Plated Copper
- Terminal Type: Ferrule
- Length: 1.5 in
- Diameter: 0.41 in
- Compliance: UL Listed, RoHS Compliant
- Frequency: 50/60 Hz
Specifications
- Part Number: ATM2
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : ATM
- Voltage : 600
- Amperage : 2
- AIC rating : 100kA@600V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 782001900786
- GTIN : 00782001900786
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : CSA, UL
