Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
ATM15

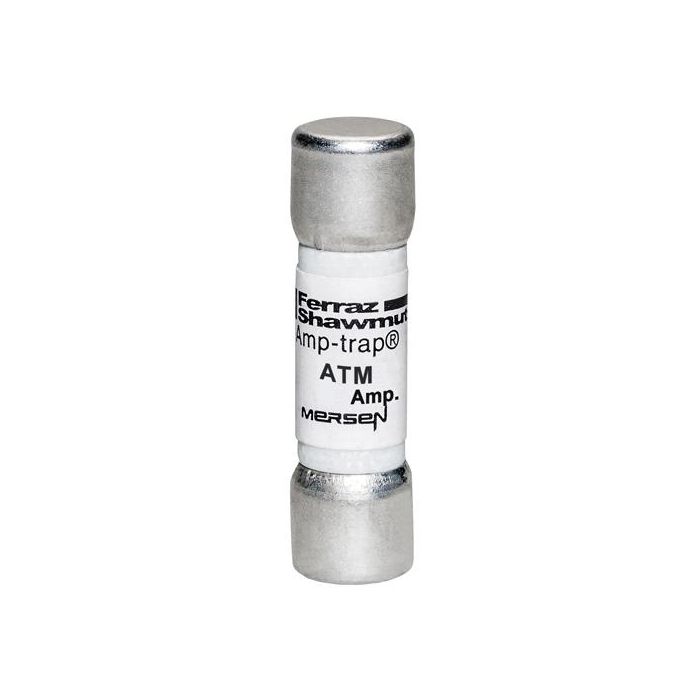

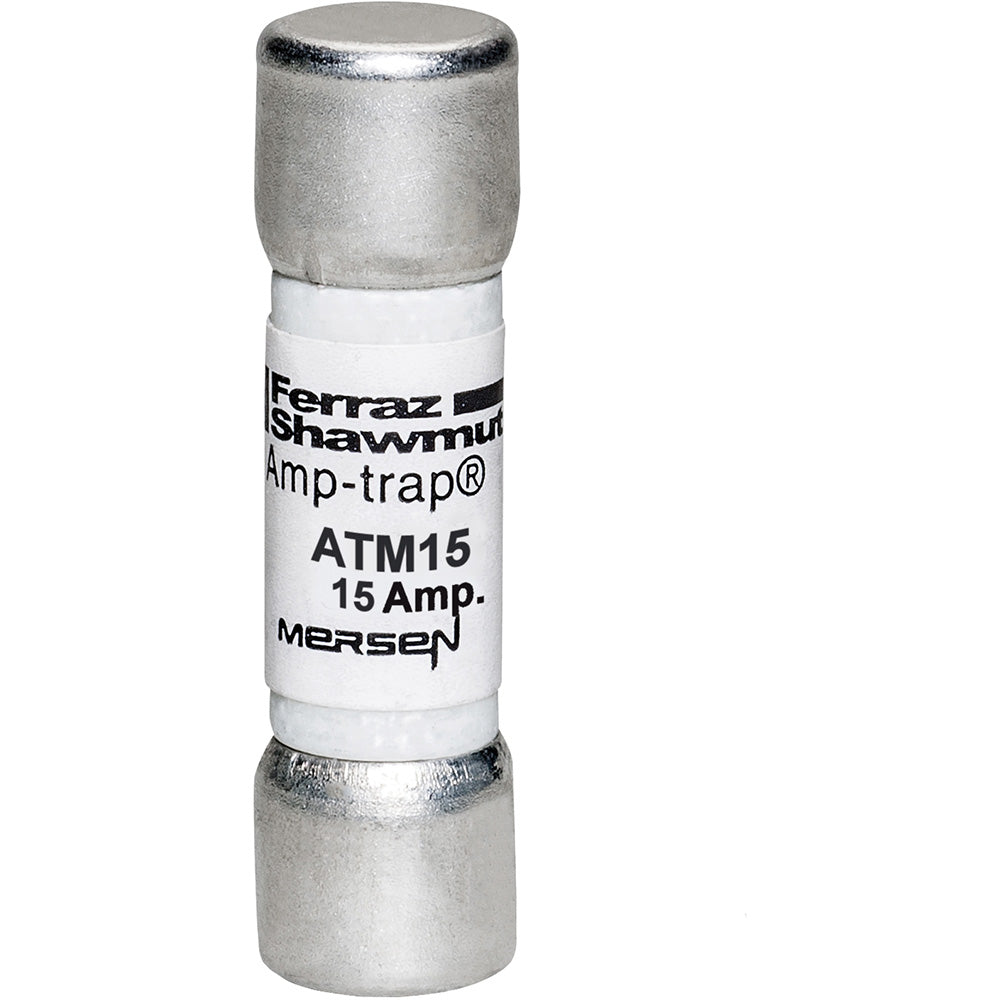

ATM15 is a Mersen Amp-Trap® fast acting midget fuse rated for 15 amperes and 600 volts AC/DC. It provides reliable circuit protection with a high interrupting rating.ATM15 fuses are designed for supplemental protection of small motors, transformers, and circuits with high inrush currents. This fuse features a 100kA interrupting rating and compact midget size, making it suitable for a wide range of low voltage applications.
- Key Specifications
- Amperage: 15 A
- Voltage Rating: 600 V AC/DC
- Fuse Type: Fast Acting Midget
- Interrupting Rating: 100,000 A (100 kA)
- Series: Amp-Trap® ATM
- Physical Size: Approximately 13/32" x 1 1/2"
- Application: Supplemental protection for small motors and transformers
- Mounting Type: Ferrule style
- Certifications: Industry standard UL recognized
Specifications
- Part Number: ATM15
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : ATM
- Voltage : 600
- Amperage : 15
- AIC rating : 100kA@600V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 782001900694
- GTIN : 00782001900694
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : CSA, UL
