Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
ATM-5

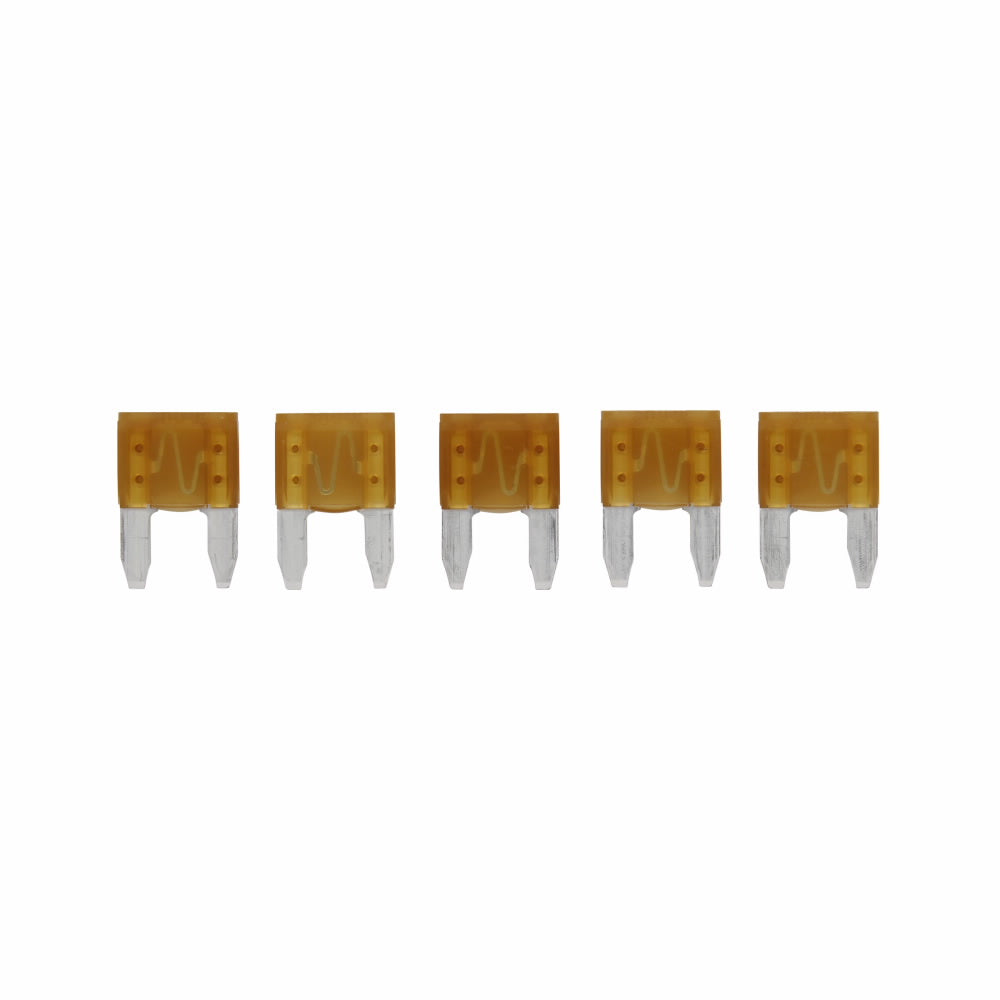

ATM-5 is a 5 Amp, 32 Volt fast-acting blade fuse from Eaton's ATM Series designed for automotive and low-voltage circuit protection.This fuse features a compact blade design with a tan color-coded polyamide housing and silver-plated zinc terminals. It is UL Listed with a 1 kA interrupt rating at 32 VDC, suitable for automotive and low-voltage applications requiring fast-acting protection. The fuse operates reliably within a temperature range of -40°C to +80°C and meets industry standards including ISO 8820-3 and SAE J2077.
- Amperage: 5 A
- Voltage Rating: 32 V AC/DC
- Fuse Type: Fast-Acting Blade Fuse
- Series: ATM
- Interrupt Rating: 1 kA at 32 VDC
- Mounting Style: Holder
- Color Code: Tan
- Material: Silver-plated zinc terminals and element
- Housing: Polyamide, UL 94 HB rated
- Operating Temperature: -40°C to +80°C
- Certifications: UL Listed, ISO 8820-3, SAE J2077
Specifications
- Part Number: ATM-5
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ATM Series
- Type : ATM
- Voltage : 32
- Amperage : 5
- AIC rating : 1kA@32Vdc
Product Data
- UPC : 051712814614
- GTIN : 00051712814614
- Country of Origin : Japan
- Dimensions : 1.38 in x 1.6 in x 0.44 in (Length/Depth x Height x Width)
- Weight : 0.3
- Certification : RoHS, UL Listed
