Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
ATM-20

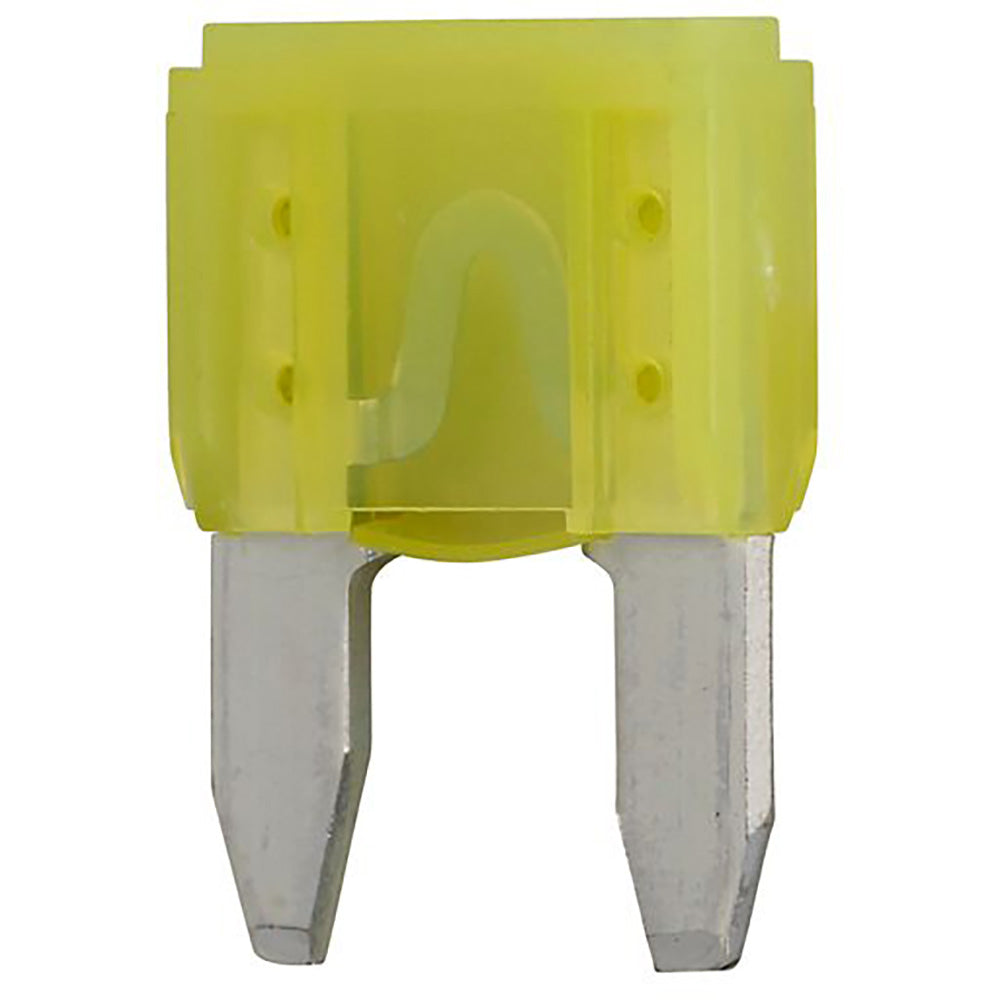

ATM-20 is a fast-acting, non-indicating, low-profile blade fuse from Eaton's Bussmann Series, designed for automotive and low-voltage circuit protection.
This ATM-20 fuse features a yellow plastic housing for easy identification, silver-plated zinc terminals, and a zinc fuse element. It is UL Listed and meets ISO 8820-3, JASO D612, and SAE J2077/J1171 standards for ignition protection. The fuse operates in temperatures from -40°C to +80°C and is suitable for a wide range of automotive applications.
-
Key Specifications
- Amperage: 20A
- Voltage: 32VDC
- Poles: Single
- Mounting Type: Blade (ATM Mini)
- Interrupt Rating: 1 kAIC
- Series/Frame: ATM Series, Low-Profile
- Trip Unit: Fast-acting
- Certifications: UL Listed (Guide FHXT, File AU169), ISO 8820-3, JASO D612, SAE J2077/J1171
- Color: Yellow
- Terminal Material: Silver-plated zinc
- Housing Material: Polyamide (UL 94 HB)
- Operating Temperature: -40°C to +80°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: ATM-20
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ATM Series
- Type : ATM
- Voltage : 32
- Amperage : 20
- AIC rating : 1kA@32Vdc
Product Data
- UPC : 05171281465
- GTIN : 00051712814652
- Country of Origin : Japan
- Dimensions : 1.38 in x 1.6 in x 0.44 in (Length/Depth x Height x Width)
- Weight : 0.3
- Certification : RoHS, UL Listed
