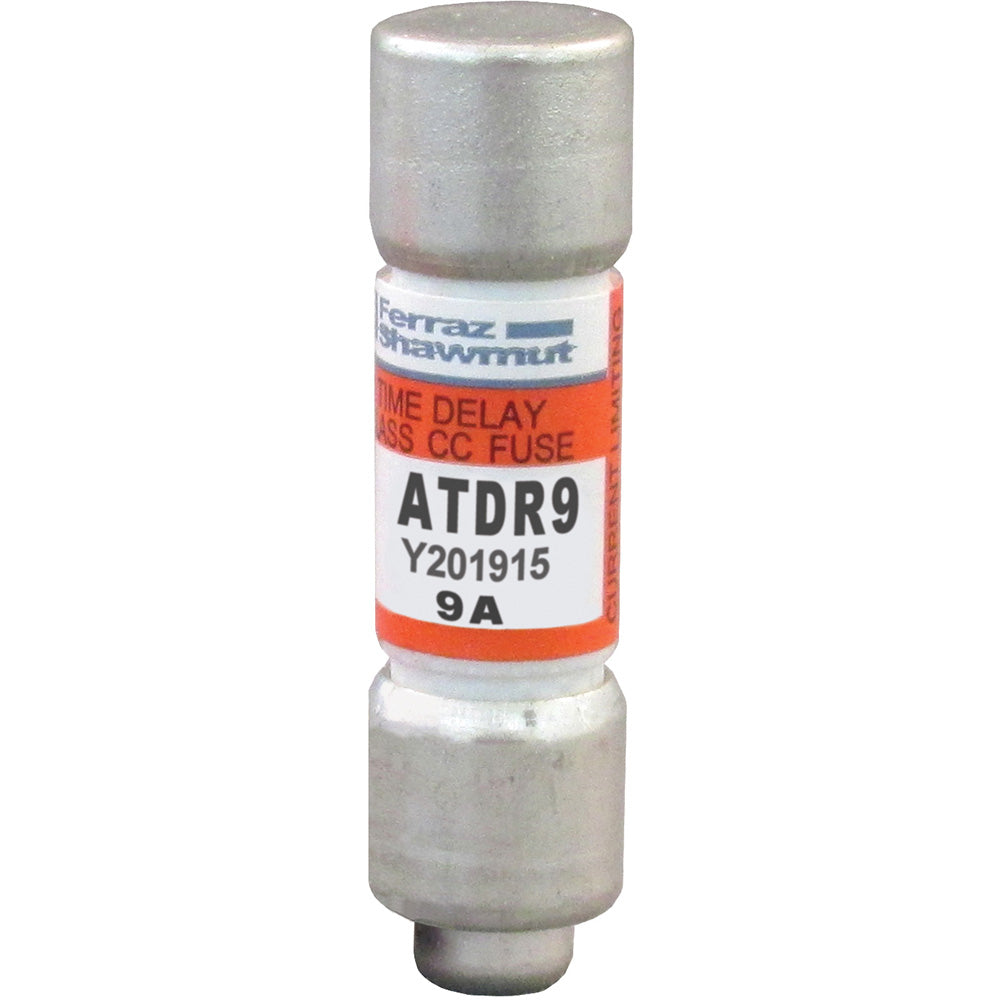

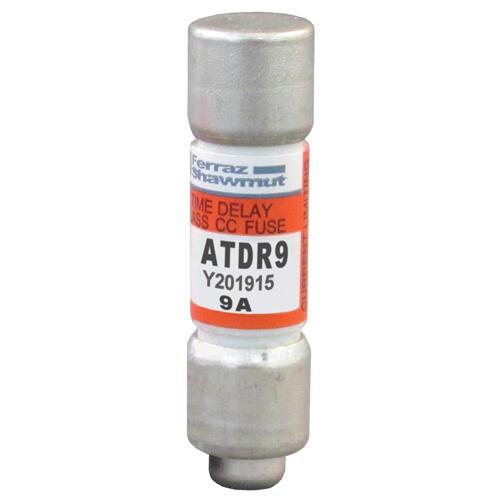

ATDR9 - Mersen 9 Amp 600 Volt Class CC Time Delay Fuse Amp-Trap 2000

ATDR9

This fuse features a time delay for motor starting inrush currents, highly current limiting characteristics for low peak let-through current, and improved cycling ability for frequent motor starts and stops without nuisance fuse opening. It has a fiberglass body for dimensional stability and a tin-plated copper contact for durability. The fuse is UL 248 and CSA C22.2 No. 248.4 certified and includes a rejection style design to prevent replacement errors when used with recommended fuse blocks.

Key Specifications
• Amperage: 9 Amps
• Voltage Rating: 600 Volts AC
• Fuse Class: CC
• Time Delay: Yes, for motor starting inrush currents
• Body Type: Cylindrical fiberglass
• Series: Amp-Trap 2000 (ATDR)
• Contact Material: Tin-plated copper
• Interrupt Rating: High current limiting
• Certifications: UL 248, CSA C22.2 No. 248.4, DC Listed
• Rejection Style Design: Prevents replacement errors
• Label: High visibility orange for easy identification

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: ATDR9
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : ATDR
• Voltage : 600
• Amperage : 9
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1



Product Data

• UPC : 782001908607
• GTIN : 00782001908607
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 0.02
• Certification : UL/CSA
