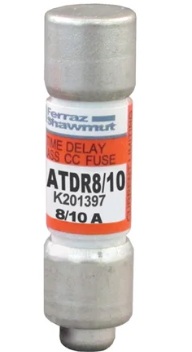

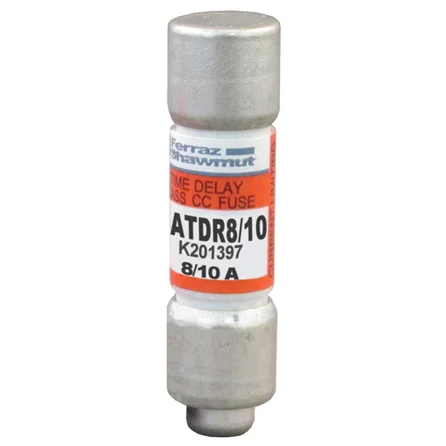

ATDR8/10 - Mersen Ferraz Shawmut 8/10A 600V AC Class CC Time Delay Fuse

ATDR8/10

ATDR8/10 is a Mersen Ferraz Shawmut 8/10 amp, 600 volt AC Class CC time delay fuse designed for motor protection and small dimension fuse applications. This fuse provides reliable time delay performance for motor starting inrush currents and is UL and CSA certified.The ATDR8/10 fuse features a 600 VAC and 300 VDC voltage rating with a high interrupting rating of 200,000 AIC AC and 100,000 AIC DC. It is highly current limiting to reduce peak let-thru current and includes a rejection style to prevent replacement errors. The fuse measures approximately 0.41 inches by 1.5 inches and is UL Listed to Standard 248-8 and CSA Certified to C22.2 No. 248.4.

Key Specifications
• Amperage: 8/10 Amp
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: Class CC
• Fuse Type: Time Delay (Slow Blow)
• Interrupting Rating: 200,000 AIC AC / 100,000 AIC DC
• Dimensions: 0.41" x 1.5"
• Mounting Type: Small Dimension Fuse
• Certifications: UL Listed (File E2137), CSA Certified
• Rejection Style: Prevents replacement errors

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ATDR8/10
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : ATDR
• Voltage : 600
• Amperage : 8
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 782001908478
• GTIN : 00782001908478
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 0.02
• Certification : UL/CSA
