Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

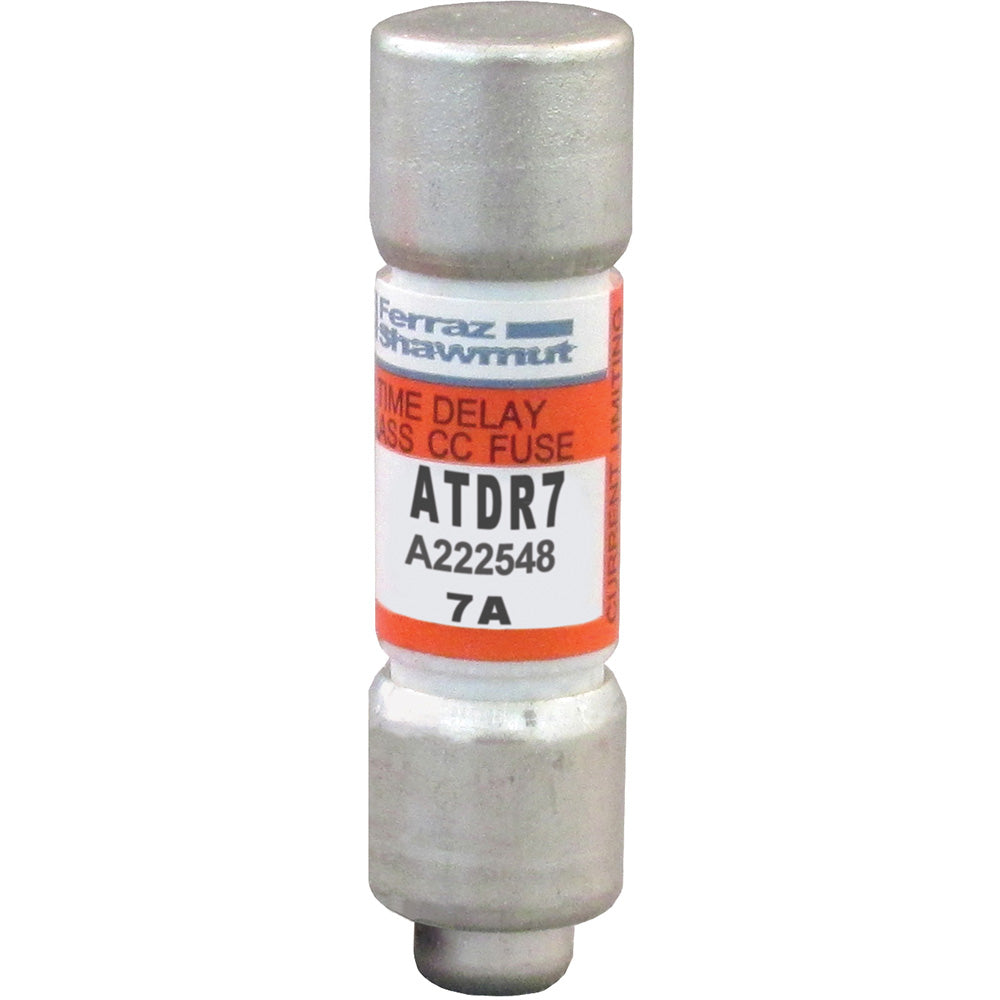

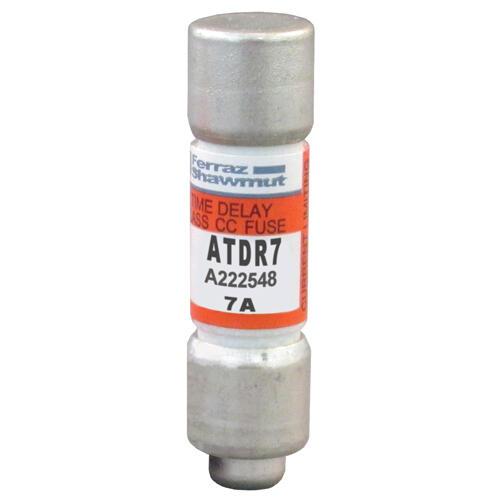

ATDR7
ATDR7 is a Mersen 7 Amp Class CC time delay fuse designed for motor protection and general circuit protection.ATDR7 features a 600 Volt AC rating with a 1 pole configuration and clip mounting type. It offers a high interrupt rating of 200kA AC and 100kA DC, suitable for demanding electrical applications. The fuse is time-delay type, allowing motor starting inrush currents without nuisance openings. It meets UL Class CC standards and is ideal for small motor protection.
- Key Specifications
- Amperage: 7 Amps
- Voltage: 600 Volts AC, 300 Volts DC
- Poles: 1
- Mounting Type: Clip
- Interrupt Rating: 200kA AC, 100kA DC
- Fuse Class: Class CC
- Speed/Characteristic: Time Delay
- Size: 0.41" x 1.5"
- Certifications: UL Listed
Specifications
- Part Number: ATDR7
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATDR
- Voltage : 600
- Amperage : 7
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001901059
- GTIN : 00782001901059
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL/CSA
