Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
ATDR7-1/2

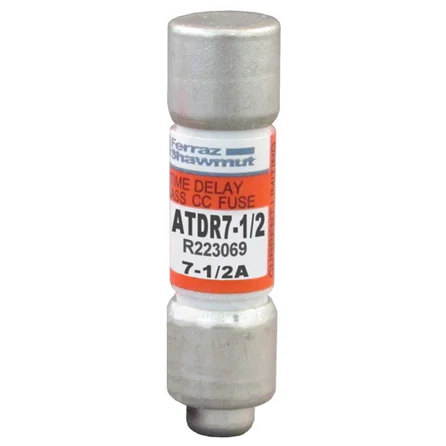

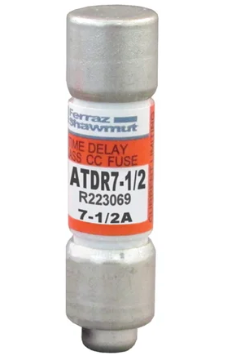

ATDR7-1/2 is a Ferraz Shawmut Mersen 7.5 amp Class CC time delay fuse designed for motor protection and general purpose applications.This fuse features a 600 VAC and 300 VDC voltage rating with a 200kA interrupt rating. It is part of the Amp-Trap 2000® series, providing IEC Type 2 no damage protection with current limiting and time delay characteristics. The fuse is UL and CSA listed and suitable for use in motor circuits requiring up to 400% of motor full load amperes per NEC guidelines.
- Key Specifications
- Amperage: 7.5 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Interrupt Rating: 200,000 A
- Fuse Class: CC
- Time Delay: Yes
- Series: Amp-Trap 2000®
- Mounting Type: Ferrule
- Certifications: UL Listed, CSA Certified
- IEC Type 2 Motor Protection
- Current Limiting Fuse
- Part Number: ATDR7-1/2
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATDR
- Voltage : 600
- Amperage : 7
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
- UPC : 782001908591
- GTIN : 00782001908591
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.02
- Certification : UL/CSA
