Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
ATDR6-1/4

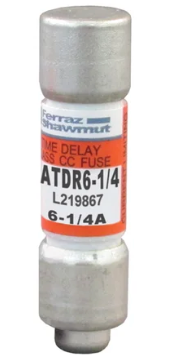

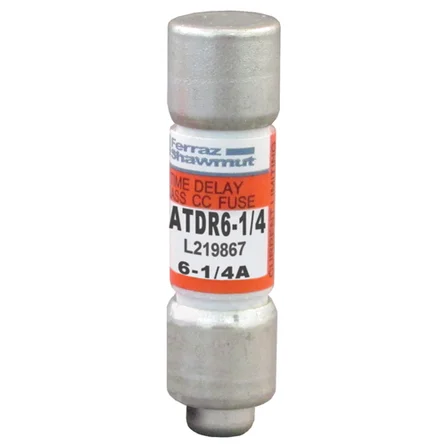

ATDR6-1/4 is a Ferraz Shawmut Mersen Class CC time delay fuse rated for 6.25 amps and 600 volts AC, designed for reliable motor and branch circuit protection.This fuse features a time delay characteristic ideal for motor starting inrush currents, with a 200kA interrupt rating at 600VAC and 100kA at 300VDC. It has a clip mounting type and a fiberglass body for durability in industrial environments. The fuse is UL listed and CSA certified, providing IEC Type 2 no damage protection with excellent cycling ability and high current limiting to minimize fault damage.
- Amperage: 6.25A
- Voltage Rating: 600VAC, 300VDC
- Fuse Class: CC
- Time Delay characteristic
- Mounting Type: Clip
- Interrupt Rating: 200kA AC, 100kA DC
- Body Material: Fiberglass
- Terminal Type: Ferrule, Tin-Plated Copper
- Dimensions: 11mm x 11mm x 39mm
- Certifications: UL Listed, CSA Certified
- High visibility orange label
- Rejection-style design to prevent replacement errors
Specifications
- Part Number: ATDR6-1/4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATDR
- Voltage : 600
- Amperage : 6
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001908584
- GTIN : 00782001908584
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.02
- Certification : UL/CSA
