Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

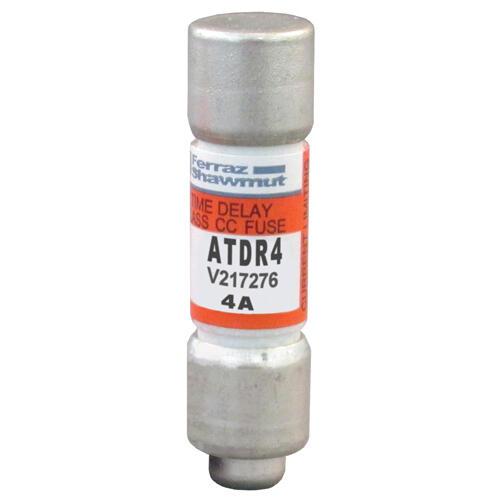

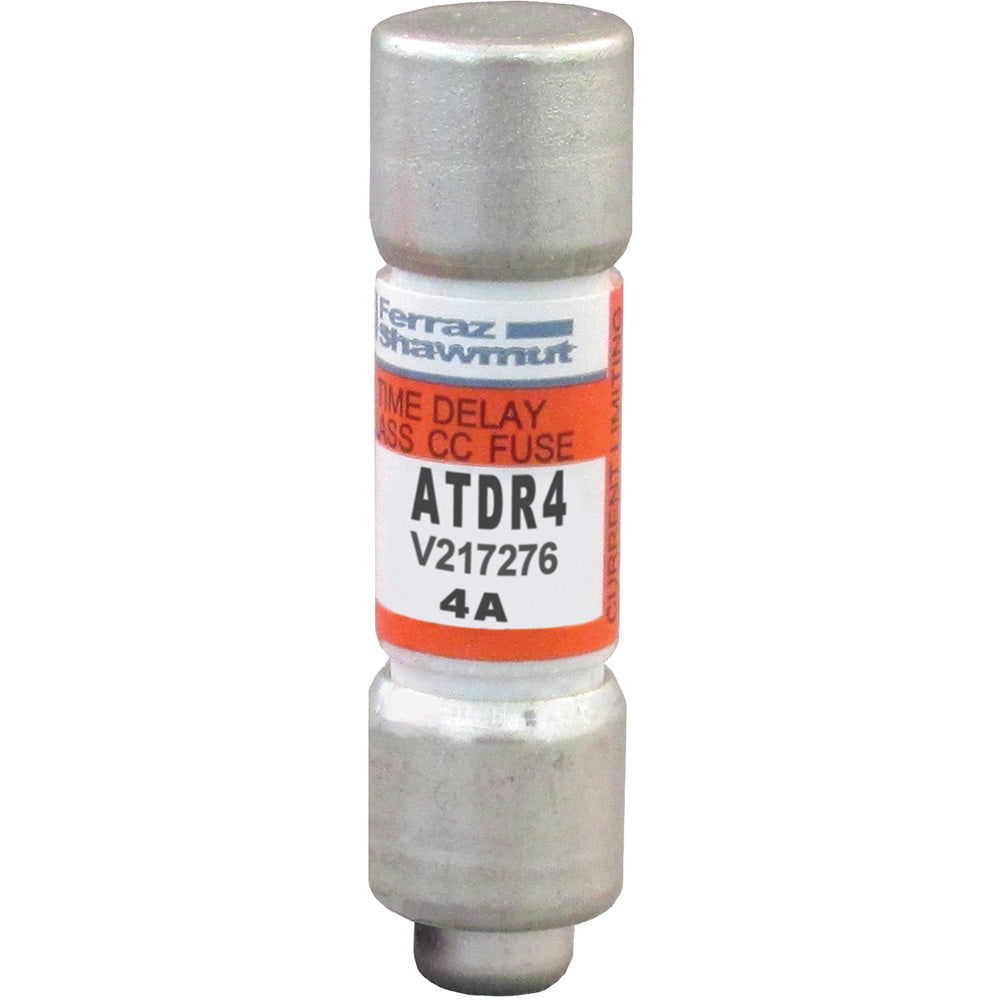

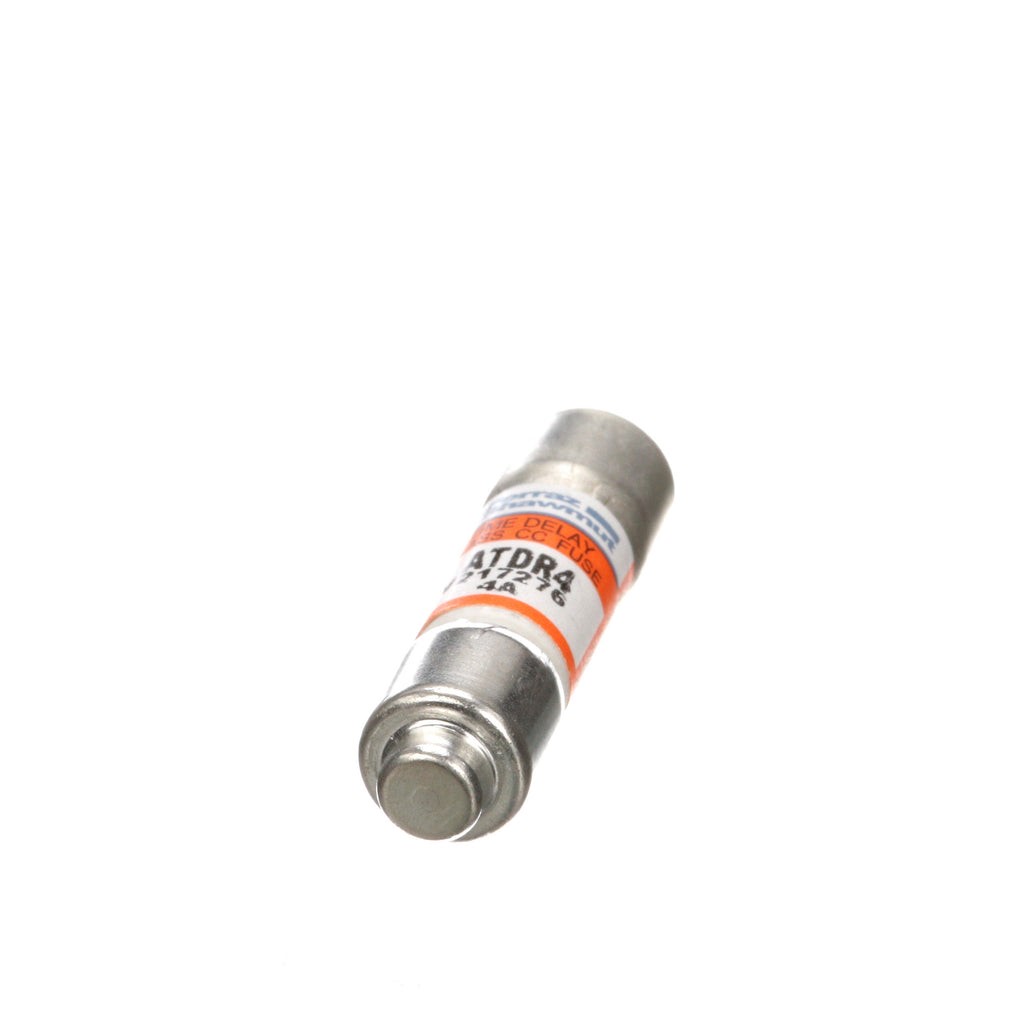

ATDR4
ATDR4 is a Mersen 4 Amp, 600 Volt AC Class CC time-delay current-limiting fuse designed for branch circuit protection and small motor loads.ATDR4 fuses provide IEC Type 2 no damage protection with excellent time-delay characteristics and cycling ability. They are rated for 600V AC and 300V DC with interrupt ratings of 200kA AC and 100kA DC. The fuse measures 13/32 inch diameter by 1-1/2 inch length and is UL listed and CSA certified.
- Key Specifications
- Amperage: 4 Amp
- Voltage Rating: 600 Volt AC, 300 Volt DC
- Interrupt Rating: 200kA AC, 100kA DC
- Class: CC
- Fuse Type: Time-delay, Current limiting
- Dimensions: 13/32 inch diameter x 1-1/2 inch length (10.4 x 38.1 mm)
- Mounting Type: Ferrule terminal
- Certifications: UL Listed (File E2137), CSA Certified (C22.2 No. 248.4)
- Application: Small motors, contactors, branch circuit protection, lighting, heating
Specifications
- Part Number: ATDR4
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATDR
- Voltage : 600
- Amperage : 4
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 078200190097
- GTIN : 00782001900977
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL/CSA
