Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

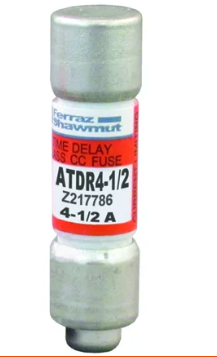

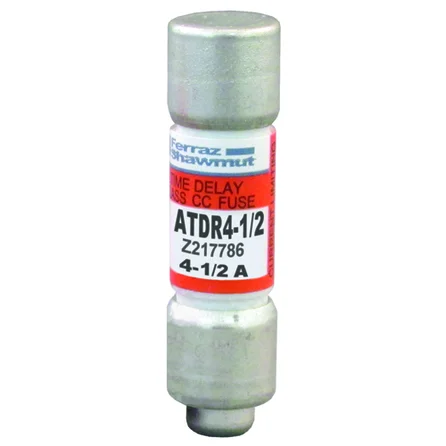

ATDR4-1/2
ATDR4-1/2 is a 4.5 Amp, 600 Volt Class CC time delay fuse from Mersen Ferraz Shawmut designed for reliable circuit protection.This fuse features current-limiting, time-delay characteristics ideal for protecting small motors, contactors, lighting, heating, and general branch circuits. It provides IEC Type 2 no damage protection with a 200kA interrupt rating at 600V AC and 100kA at 300V DC. The fuse is UL listed and CSA certified, with a compact 13/32 diameter by 1-1/2 inch length and clip mounting.
- Key Specifications
- Amperage: 4.5 Amp
- Voltage Rating: 600 Volt AC, 300 Volt DC
- Fuse Class: CC
- Fuse Type: Time-delay, Current limiting
- Interrupt Rating: 200kA AC, 100kA DC
- Mounting Type: Clip
- Dimensions: 13/32 diameter x 1-1/2 length (inches)
- Certifications: UL Listed (File E2137), CSA Certified (C22.2 No. 248.4)
- Application: Small motors, contactors, branch circuit protection
- Part Number: ATDR4-1/2
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATDR
- Voltage : 600
- Amperage : 4
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
- UPC : 782001908560
- GTIN : 00782001908560
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.02
- Certification : UL/CSA
