Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
ATDR3

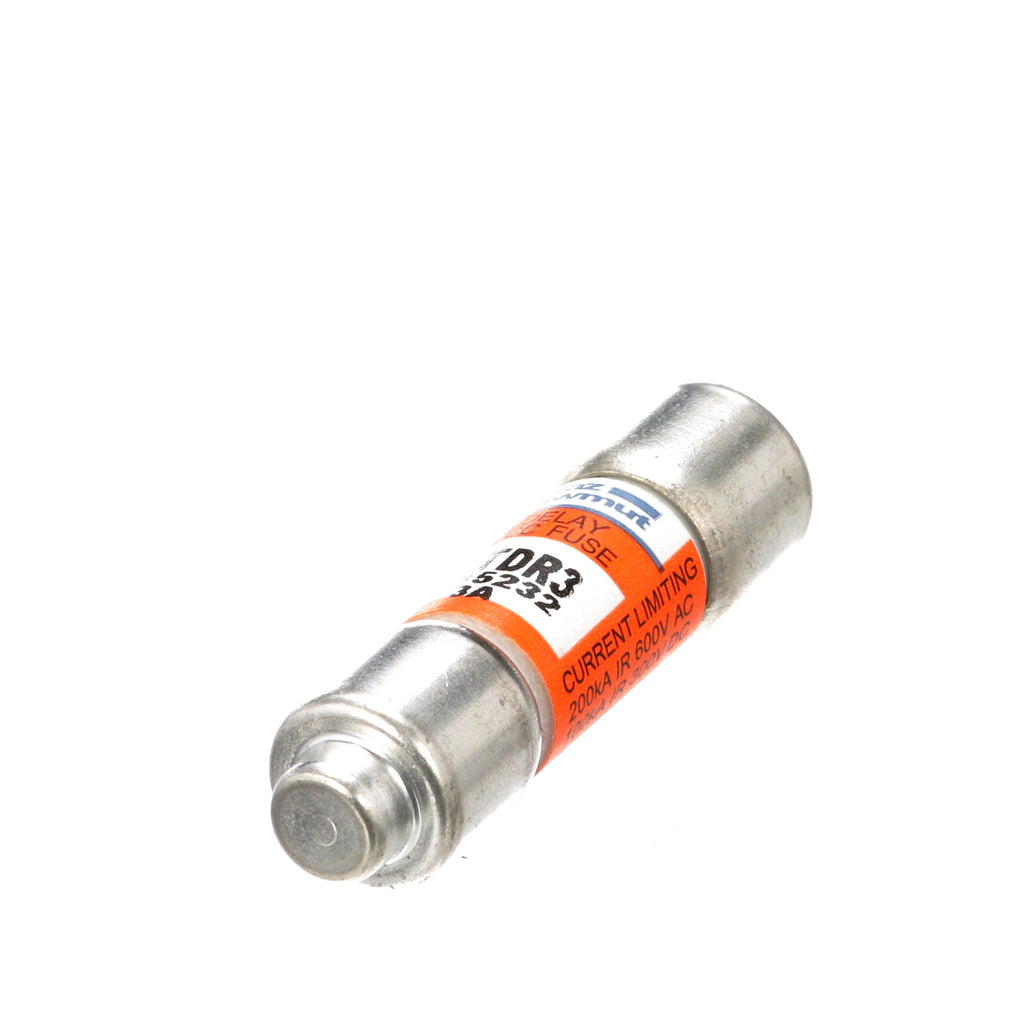

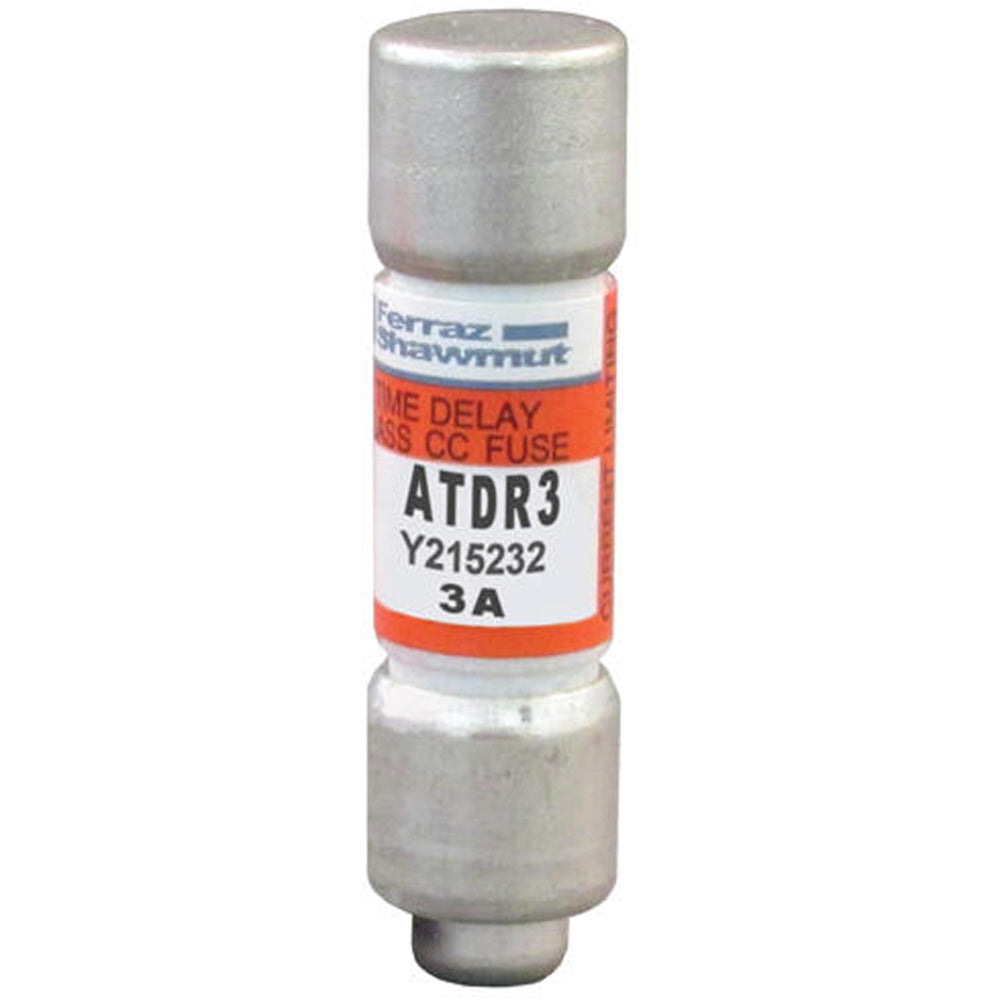

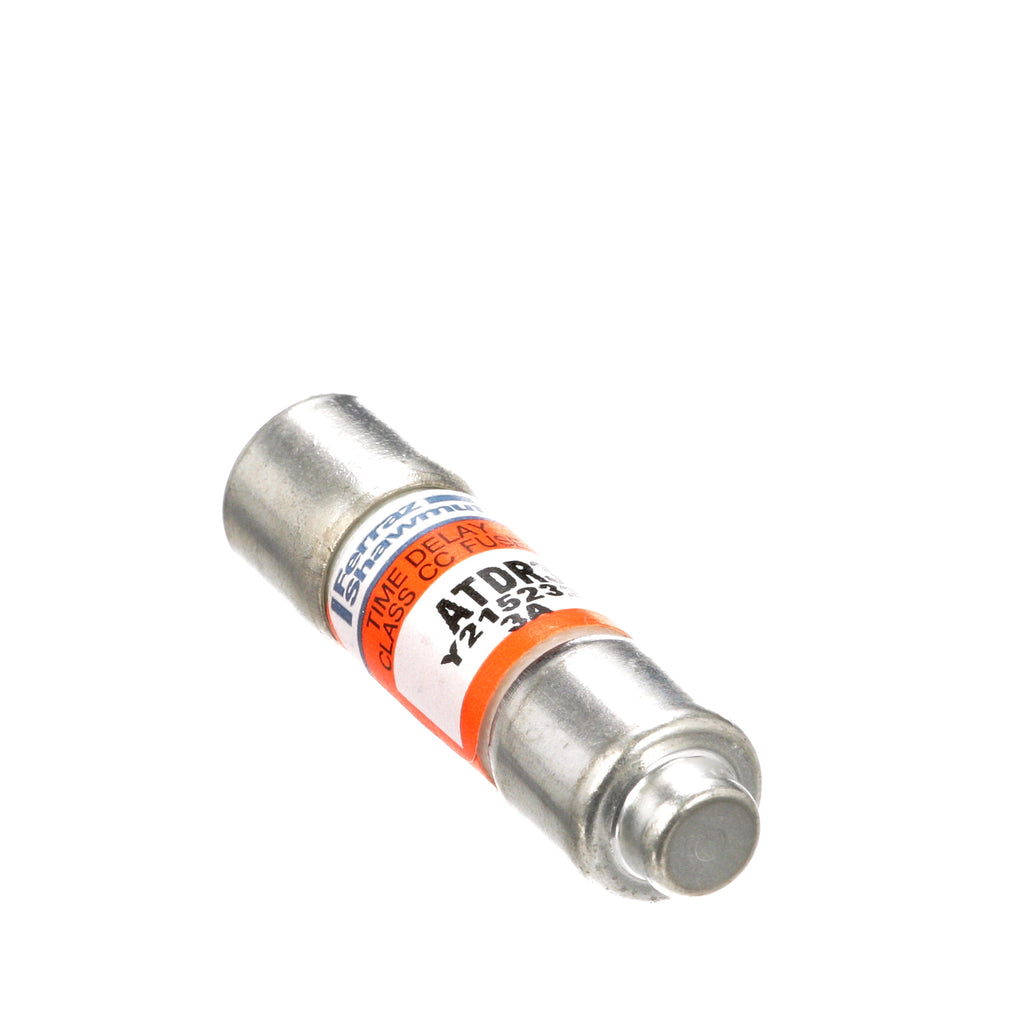

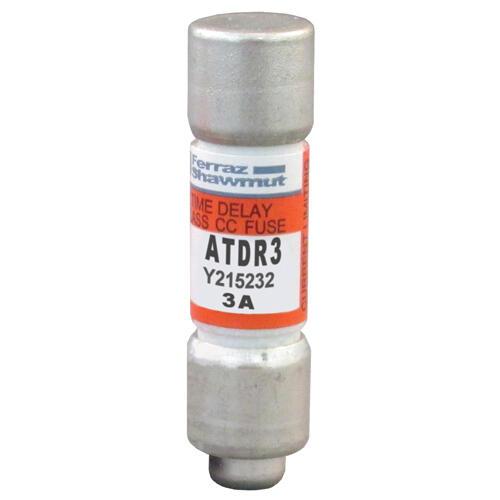

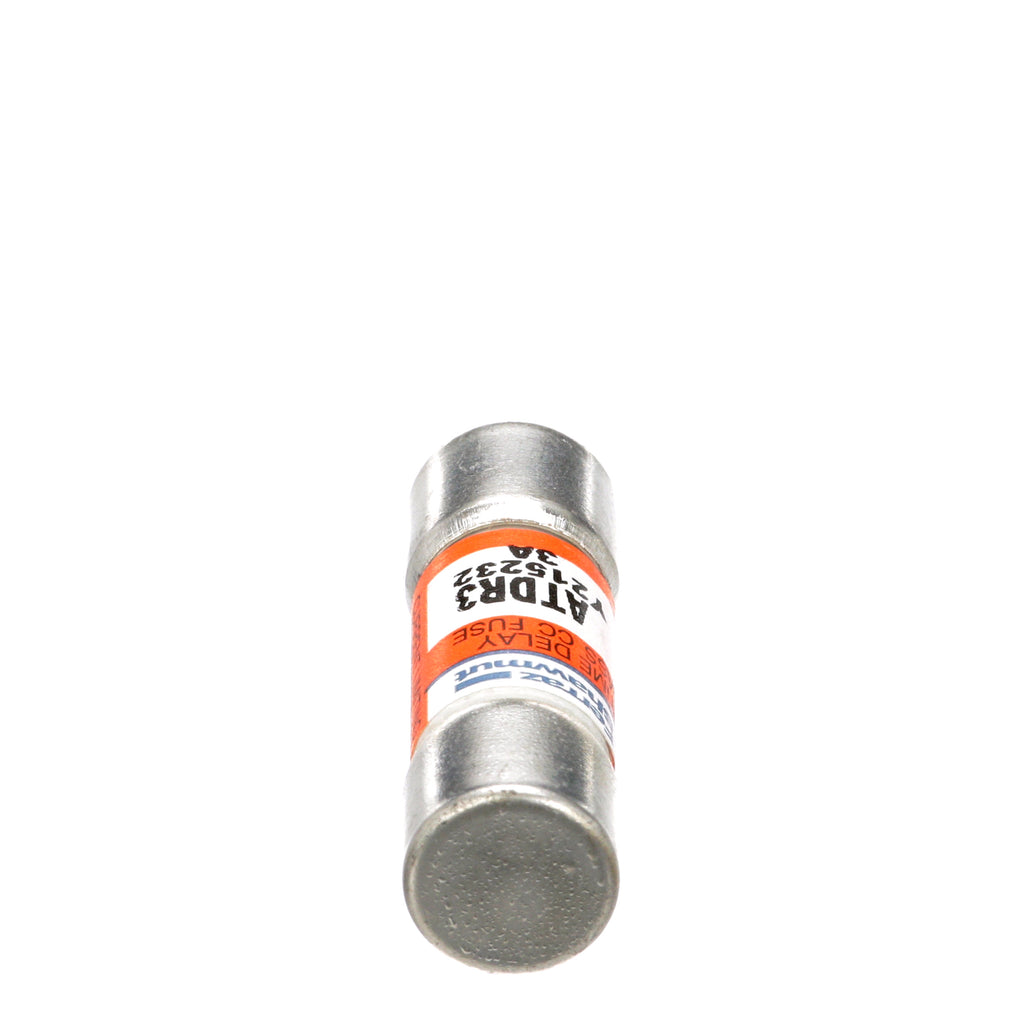

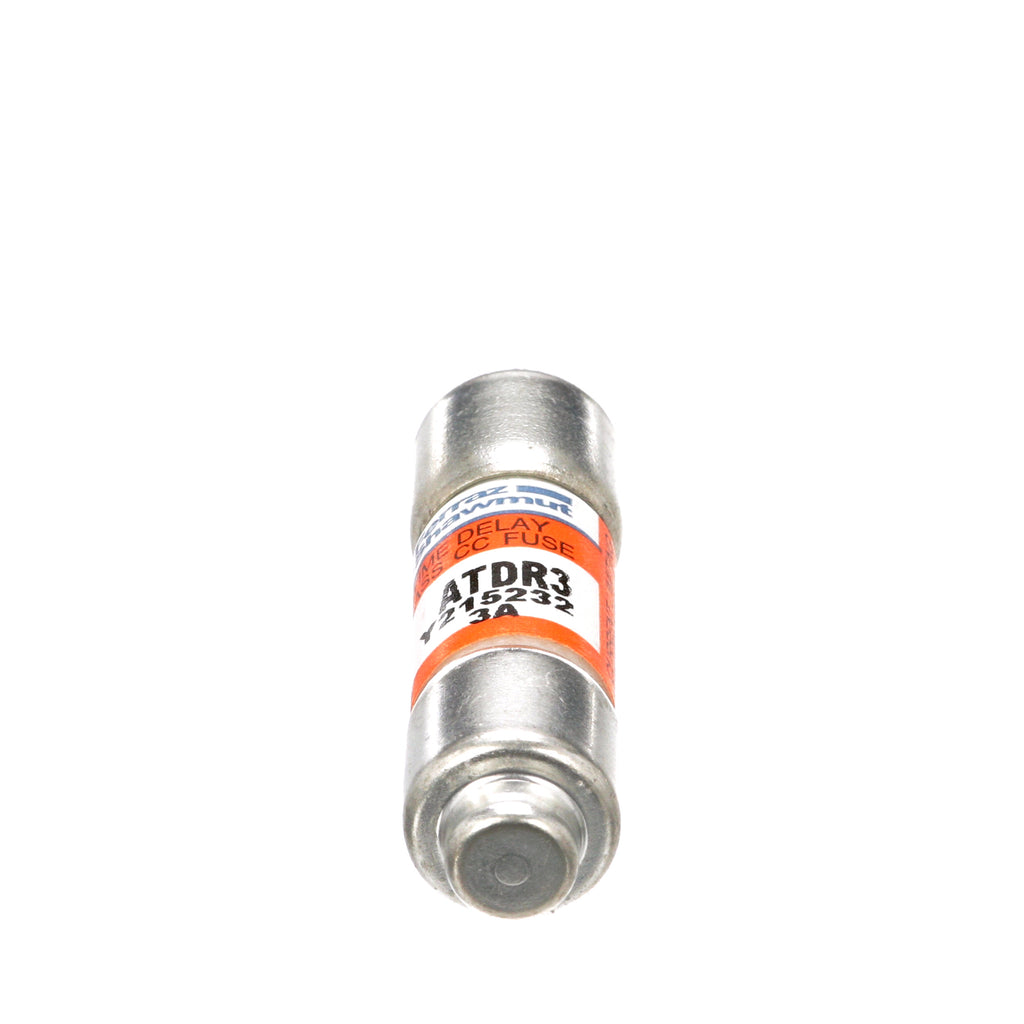

ATDR3 is a Mersen Class CC time delay fuse rated for 3 amps and 600 volts AC, designed for compact and reliable circuit protection.ATDR3 fuse features a fiberglass body for durability and stability in harsh environments, with a rejection-style design to prevent misapplication. It provides an interrupt rating of 200kA AC and 300kA DC, suitable for small motors, branch circuit protection, and lighting applications. This fuse is UL and CSA certified and measures 0.410 inch by 1.500 inch.
- Amperage: 3 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: CC
- Time Delay Characteristic
- Interrupt Rating: 200kA AC / 300kA DC
- Fuse Body Material: Fiberglass
- Dimensions: 0.410 inch x 1.500 inch
- Mounting Type: Small Dimension
- Certifications: UL Listed, CSA Certified
- Rejection Style Design
- Applications: Small motors, branch circuits, lighting
Specifications
- Part Number: ATDR3
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATDR
- Voltage : 600
- Amperage : 3
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001900960
- GTIN : 00782001900960
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL/CSA
