Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

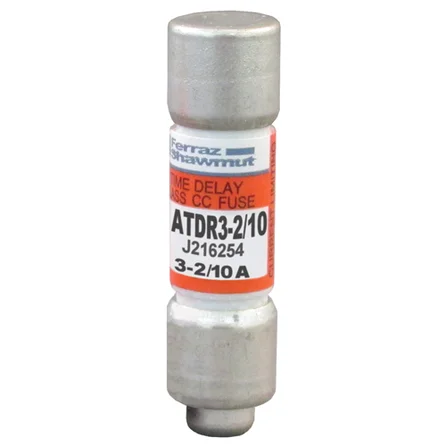

ATDR3-2/10
ATDR3-2/10 is a Ferraz Shawmut Mersen Class CC time delay fuse designed for motor protection and branch circuit applications.This 3.2 amp, 600 VAC / 300 VDC fuse features a time-delay characteristic ideal for small motor loads, providing excellent cycling ability and IEC Type 2 no damage protection. It has a clip mounting type, tin-plated copper ferrule terminals, and a fiberglass body for durability in industrial environments. The fuse is rated for a 200kA interrupt rating and includes a high-visibility orange label for easy identification.
- Amperage: 3.2 A
- Voltage Rating: 600 VAC, 300 VDC
- Fuse Class: CC
- Speed/Characteristic: Time Delay
- Mounting Type: Clip
- Interrupt Rating (SCCR): 200 kA
- Terminal Type: Ferrule, Tin-Plated Copper
- Body Material: Fiberglass
- Dimensions: 11mm x 11mm x 39mm
- Series: Amp-Trap 2000®
- Certifications: UL, CSA Listed
Specifications
- Part Number: ATDR3-2/10
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATDR
- Voltage : 600
- Amperage : 3
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001908546
- GTIN : 00782001908546
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.02
- Certification : UL/CSA
