Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

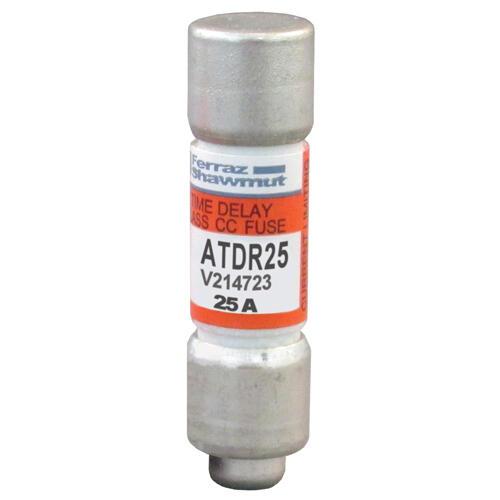

ATDR25
ATDR25 is a Mersen 25A 600V Class CC time-delay, current-limiting fuse designed for reliable protection of sensitive branch circuits and small motors.
This compact fuse offers IEC Type 2 "no damage" protection, excellent cycling ability for motor loads, and high interrupting capacity. It is ideal for applications including small motors, contactors, branch circuit protection, lighting, heating, and general loads. The ATDR series features a ferrule terminal design for easy installation and robust performance.
-
Key Specifications
- Amperage: 25A
- Voltage: 600V AC, 300V DC
- Poles: Not applicable (fuse)
- Mounting Type: Ferrule terminal
- Interrupt Rating: 200kA AC, 100kA DC
- Series/Frame: ATDR
- Trip Unit: Not applicable (fuse)
- Certifications: UL listed (248-4), CSA certified (C22.2 No. 248.4)
- Fuse Type: Time-delay, current-limiting
- Physical Size: 13/32" x 1-1/2" (10.4mm x 38.1mm)
- Application: Small motors, contactors, branch circuits, lighting, heating, general loads
- Terminal Material: Tin-plated copper
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: ATDR25
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATDR
- Voltage : 600
- Amperage : 25
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001908690
- GTIN : 00782001908690
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL/CSA
