2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

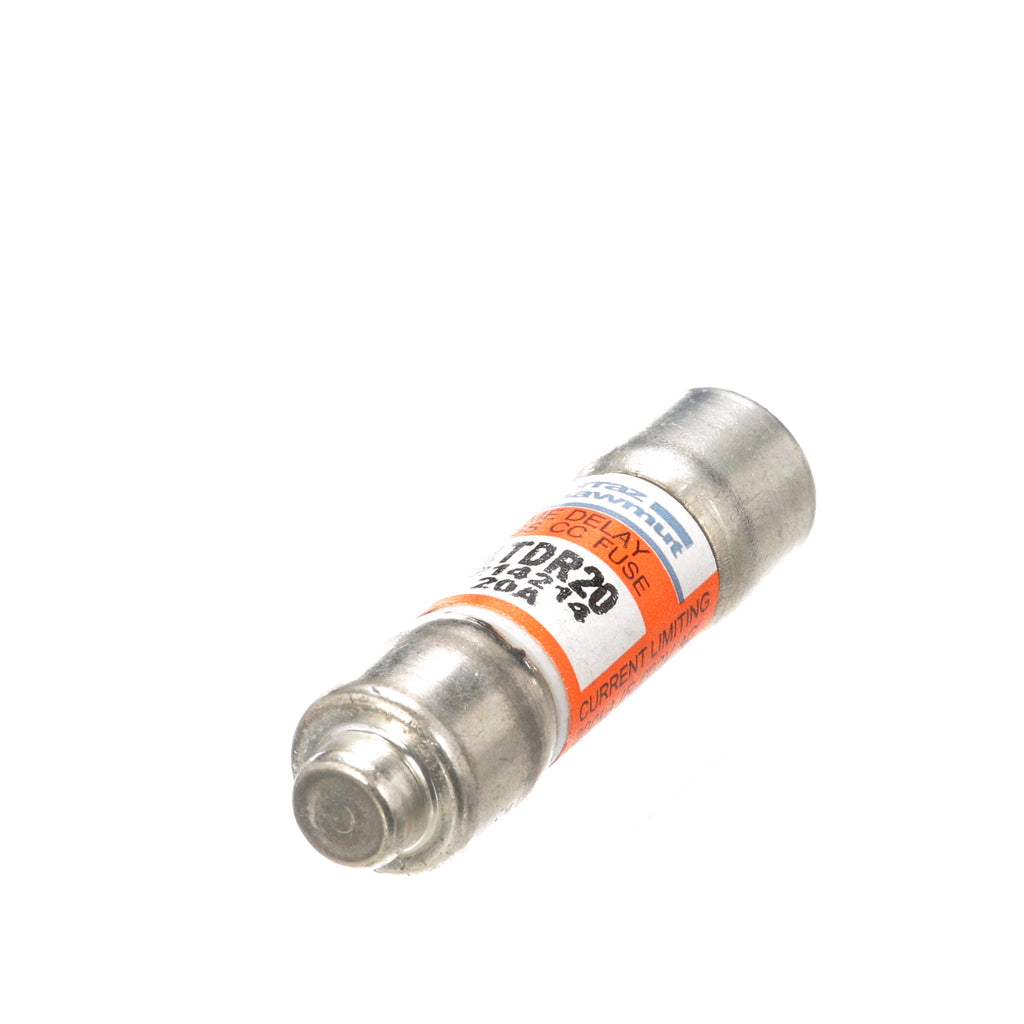

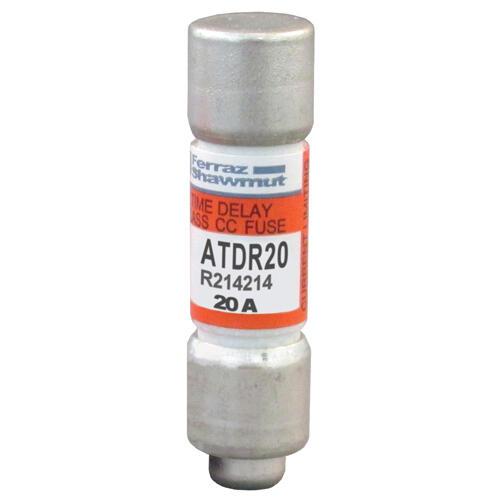

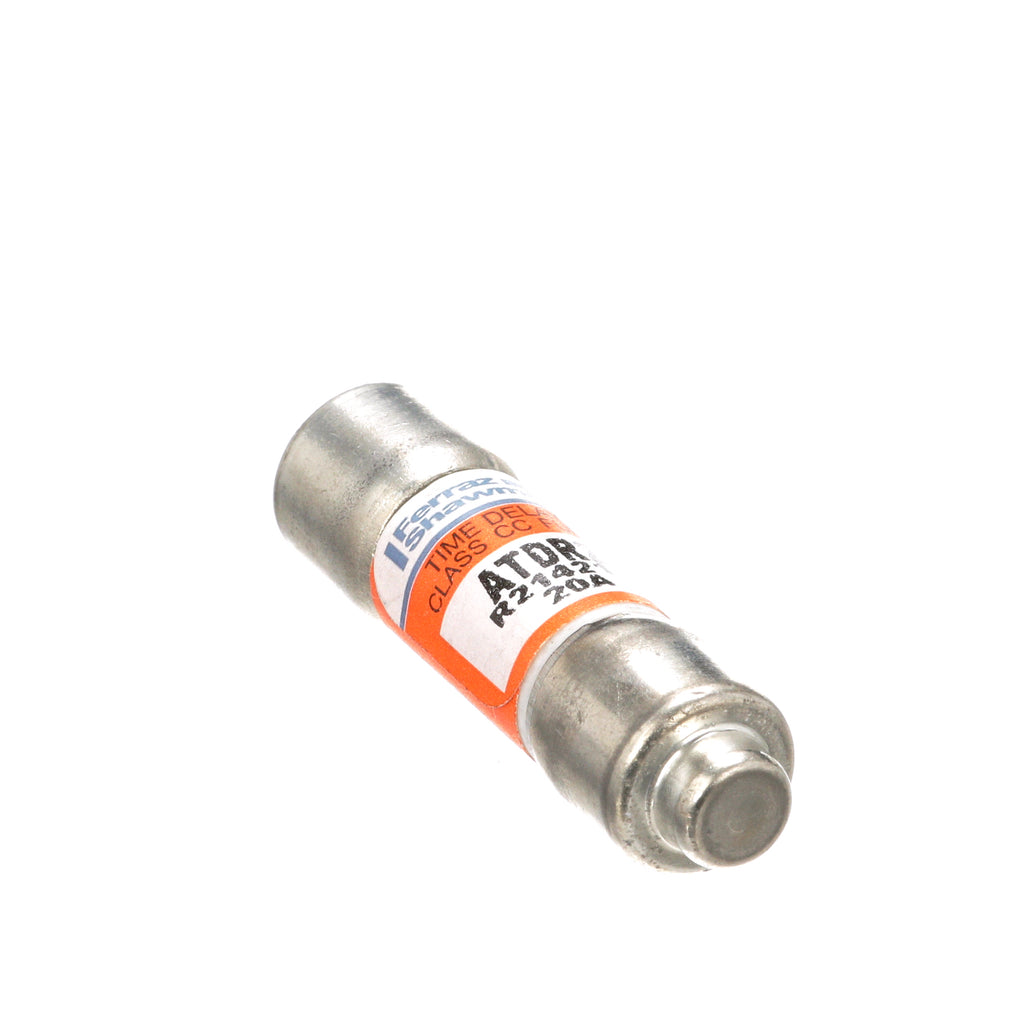

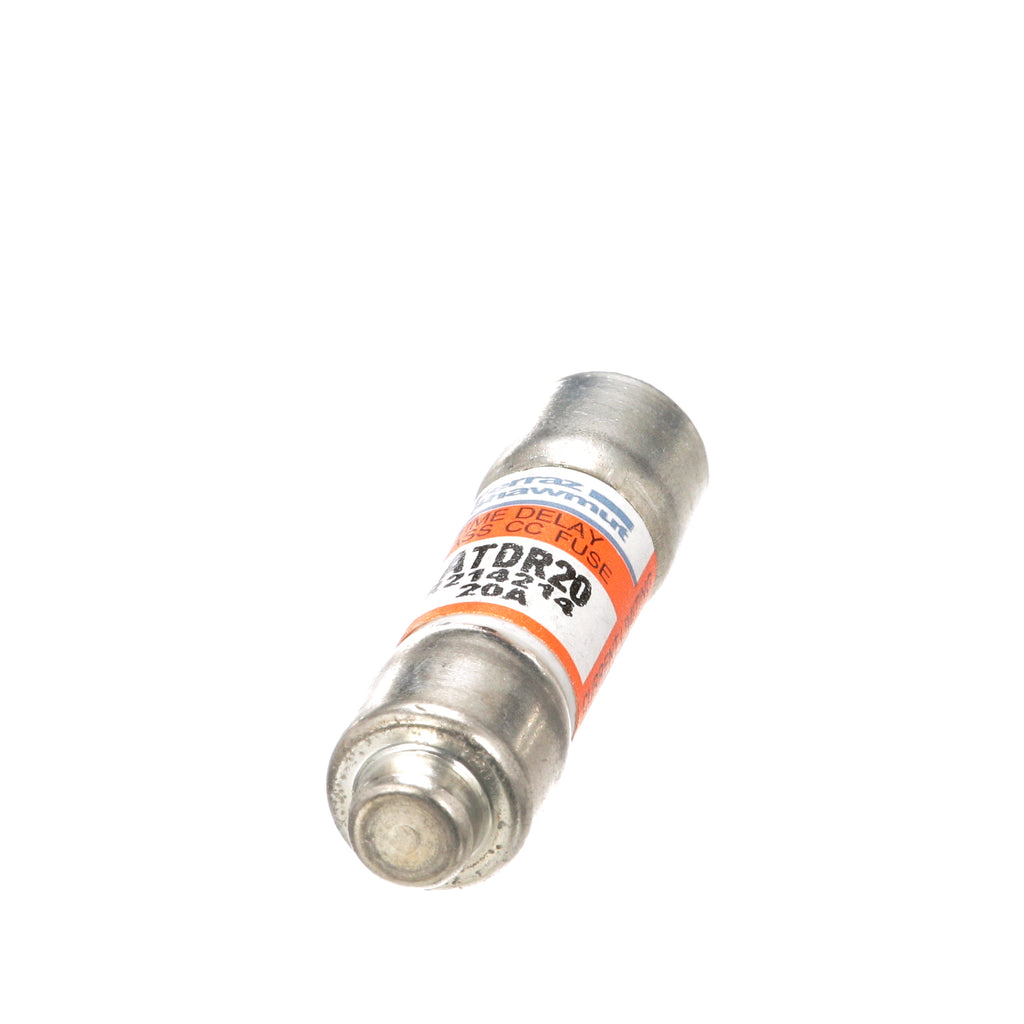

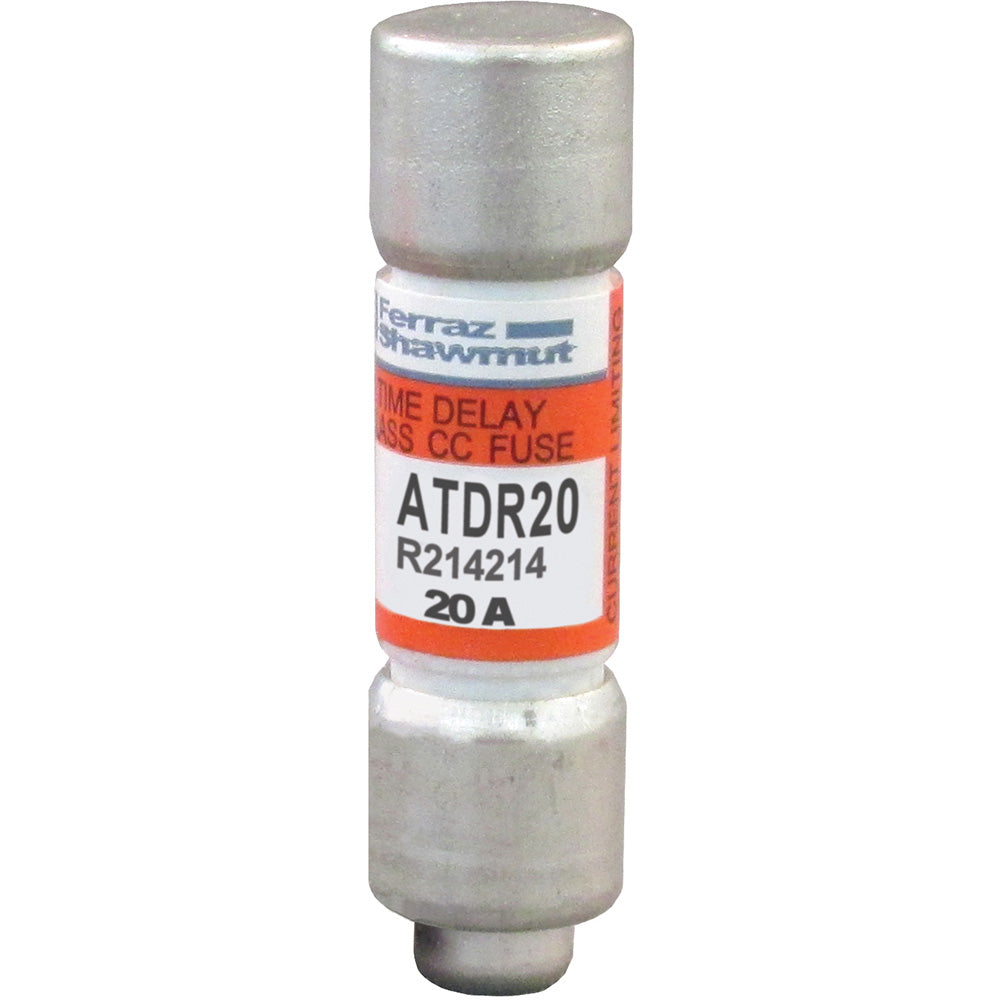

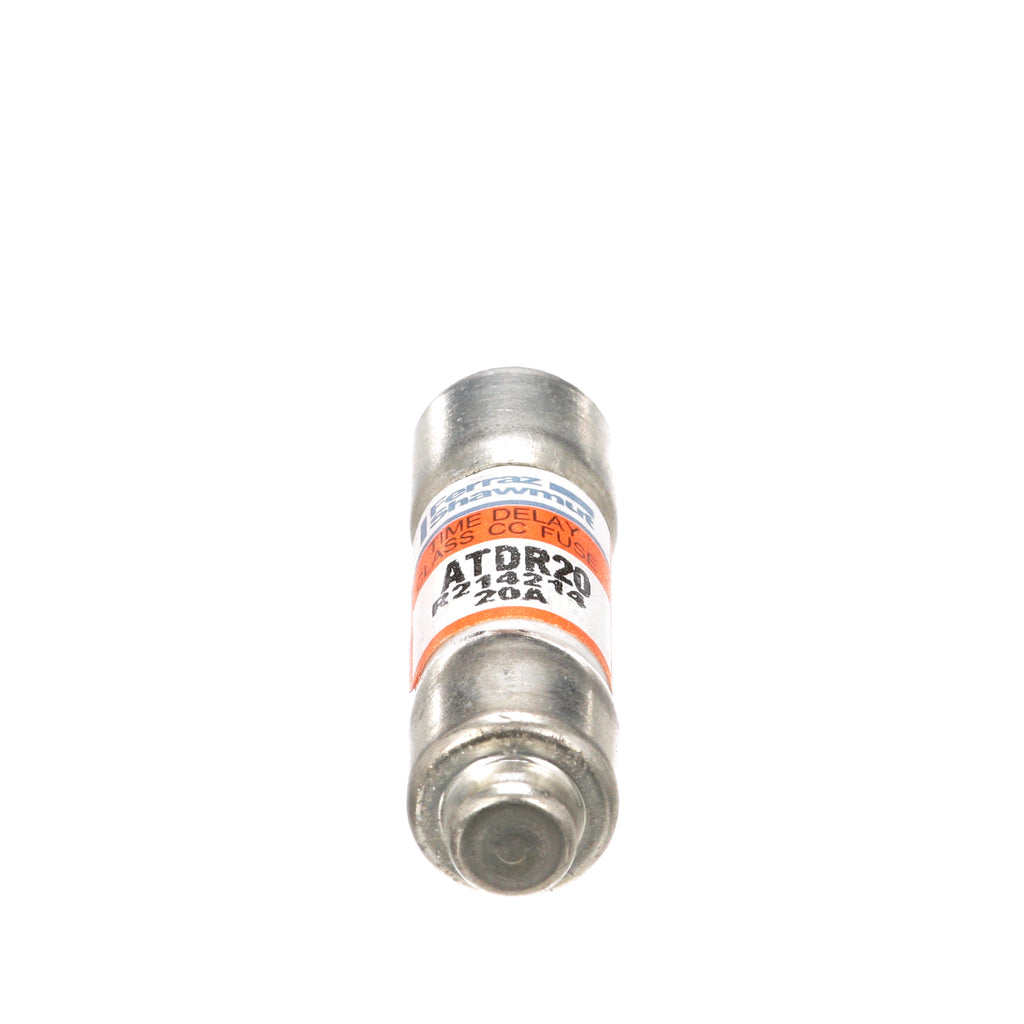

ATDR20
ATDR20 is a 20 amp, 600 volt Class CC time delay fuse from Mersen's Amp-Trap 2000 series designed for motor starting and circuit protection.This compact fuse features a high interrupt rating of 200kA AC and 100kA DC, with a small dimension size of 0.41" x 1.5" for easy installation. It provides reliable time delay characteristics to withstand temporary overloads without nuisance blowing, making it ideal for branch circuit protection and motor circuits. The fuse is UL and CSA listed, ensuring compliance with industry safety standards.
- Amperage: 20 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: Class CC
- Speed/Characteristic: Time Delay
- Interrupt Rating: 200,000 AIC AC / 100,000 AIC DC
- Size: 0.41" x 1.5" (Small Dimension)
- Series: Amp-Trap 2000 ATDR
- Mounting Type: Ferrule terminal
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: ATDR20
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 20
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 078200190868
- GTIN : 00782001908683
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL/CSA
