Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

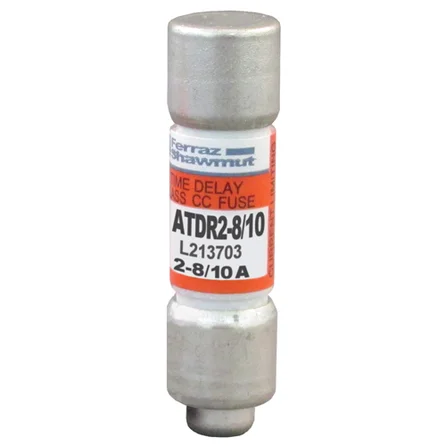

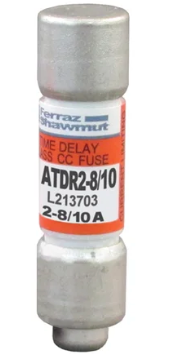

ATDR2-8/10
ATDR2-8/10 is a Ferraz Shawmut Mersen Class CC time delay fuse rated for 2.8 amps and 600 volts AC, designed for motor protection and branch circuit applications.ATDR2-8/10 features current limiting technology with a 200kA interrupt rating at 600VAC and 100kA at 300VDC. It provides IEC Type 2 "no damage" protection with excellent cycling ability for small motor loads, minimizing fault-related damage. The fuse has a rejection-style design to prevent replacement errors and a fiberglass body for durability in industrial environments.
- Key Specifications
- Amperage: 2.8 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupting Rating: 200 kA AC / 100 kA DC
- Class: CC
- Time Delay: Yes
- Fuse Body: Cylindrical fiberglass
- Mounting Type: Ferrule terminal
- Approvals: UL 248-4, CSA C22.2
- Dimensions: 1.5 inch length, 0.41 inch diameter
- Rejection style to prevent misapplication
- IEC Type 2 no damage protection
Specifications
- Part Number: ATDR2-8/10
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATDR
- Voltage : 600
- Amperage : 2
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001908539
- GTIN : 00782001908539
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.02
- Certification : UL/CSA
