Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
ATDR2-1/4

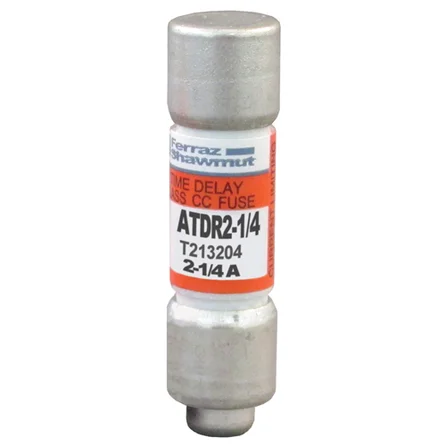

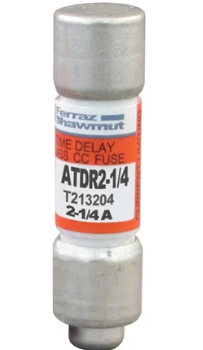

ATDR2-1/4 is a Class CC time delay fuse from Ferraz Shawmut and Mersen, designed for reliable circuit protection in demanding applications.
This cylindrical, ferrule-type fuse offers IEC Type 2 "no damage" protection, making it ideal for small motors and sensitive equipment. It features a time-delay characteristic for inrush tolerance and a high interrupting capacity for enhanced safety.
-
Key Specifications
- Amperage: 2.25 A
- Voltage: 600 VAC, 300 VDC
- Poles: Not applicable (fuse)
- Mounting Type: Ferrule (cylindrical)
- Interrupt Rating: 200 kAIC
- Series/Frame: ATDR (Amp-Trap 2000)
- Trip Unit: Not applicable (fuse)
- Certifications: UL 248-4, CSA C22.2
- Overall Length: 1-1/2 inch (38.1 mm)
- Diameter: 0.41 inch (10.40 mm)
- Material: GMG
- Application: Motor protection, general purpose
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: ATDR2-1/4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATDR
- Voltage : 600
- Amperage : 2
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001908522
- GTIN : 00782001908522
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.02
- Certification : UL/CSA
