Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

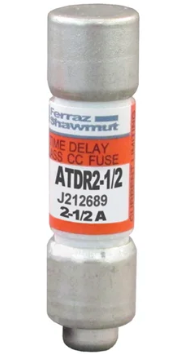

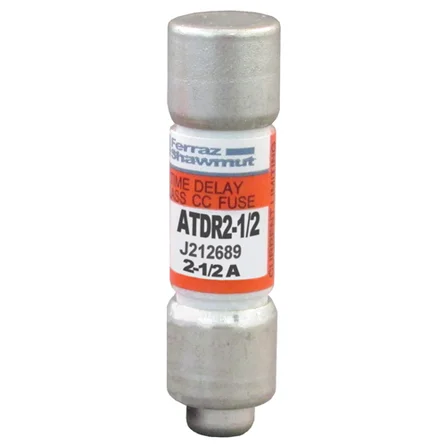

ATDR2-1/2
ATDR2-1/2 is a 2.5 amp, 600 volt Class CC time delay fuse from Mersen Ferraz Shawmut designed for motor and branch circuit protection.This fuse features a time-delay characteristic with current limiting capability, suitable for protecting small motors, lighting, heating, and sensitive branch circuits. It has a 200kA interrupt rating at 600 VAC and 100kA at 300 VDC, complies with UL 248/248-4 and CSA C22.2 standards, and is IEC Type 2 rated for no damage protection.
- Key Specifications
- Amperage: 2.5 A
- Voltage Rating: 600 VAC, 300 VDC
- Fuse Class: Class CC
- Fuse Type: Time Delay / Slow Blow
- Interrupt Rating: 200kA at 600 VAC, 100kA at 300 VDC
- Mounting Type: Cartridge
- Dimensions: 1.5 inch length, 0.41 inch diameter
- Certifications: UL 248/248-4, CSA C22.2
- IEC Type 2 No Damage Protection
- Current Limiting
Specifications
- Part Number: ATDR2-1/2
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATDR
- Voltage : 600
- Amperage : 2
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001900953
- GTIN : 00782001900953
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL/CSA
