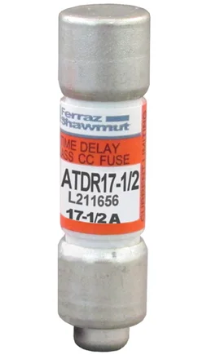

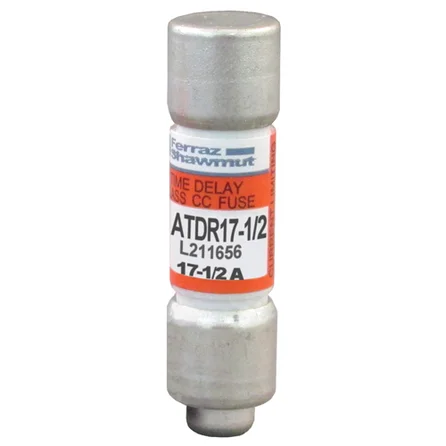

ATDR17-1/2 - Ferraz Shawmut Mersen 17.5A 600V AC Class CC Time Delay Fuse

ATDR17-1/2

ATDR17-1/2 is a 17.5 amp, 600 volt AC Class CC time delay fuse by Ferraz Shawmut Mersen designed for motor and small circuit protection.This fuse features a time delay characteristic ideal for motor starting inrush currents, with a compact size of 0.41 inch diameter by 1.5 inch length. It offers high interrupting ratings of 200,000 AIC at AC and 100,000 AIC at DC, ensuring reliable current limiting and protection. The fuse is UL listed to standard 248-8 and CSA certified, with a rejection style to prevent replacement errors.

Key Specifications
• Amperage: 17.5 A
• Voltage Rating: 600 V AC, 300 V DC
• Fuse Class: CC
• Speed/Characteristic: Time Delay
• Interrupting Rating: 200,000 AIC AC, 100,000 AIC DC
• Physical Size: 0.41" diameter x 1.5" length
• Mounting Type: Class CC rejection style
• Certifications: UL Listed (File E2137), CSA Certified
• Manufacturer: Ferraz Shawmut / Mersen

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ATDR17-1/2
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : ATDR
• Voltage : 600
• Amperage : 17.5
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 782001901981
• GTIN : 00782001901981
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 0.02
• Certification : UL/CSA
