Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
ATDR15

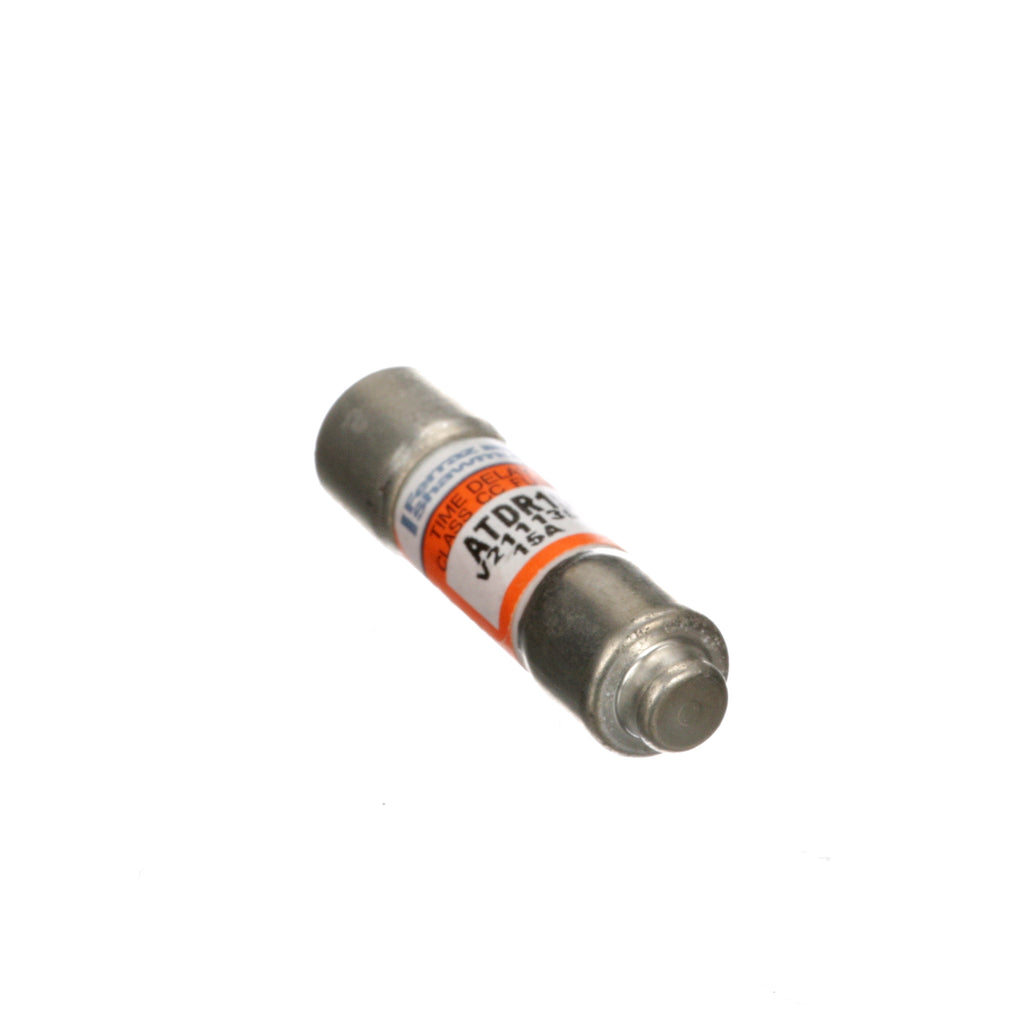

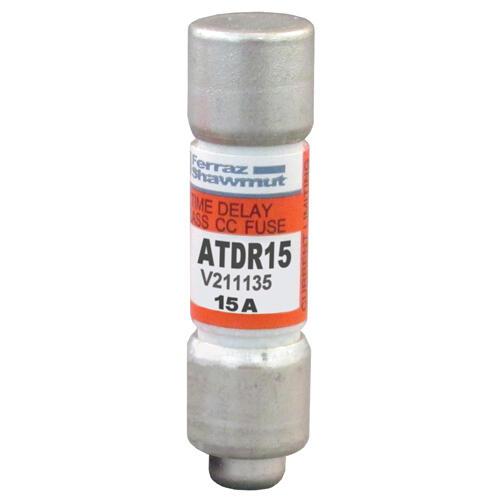

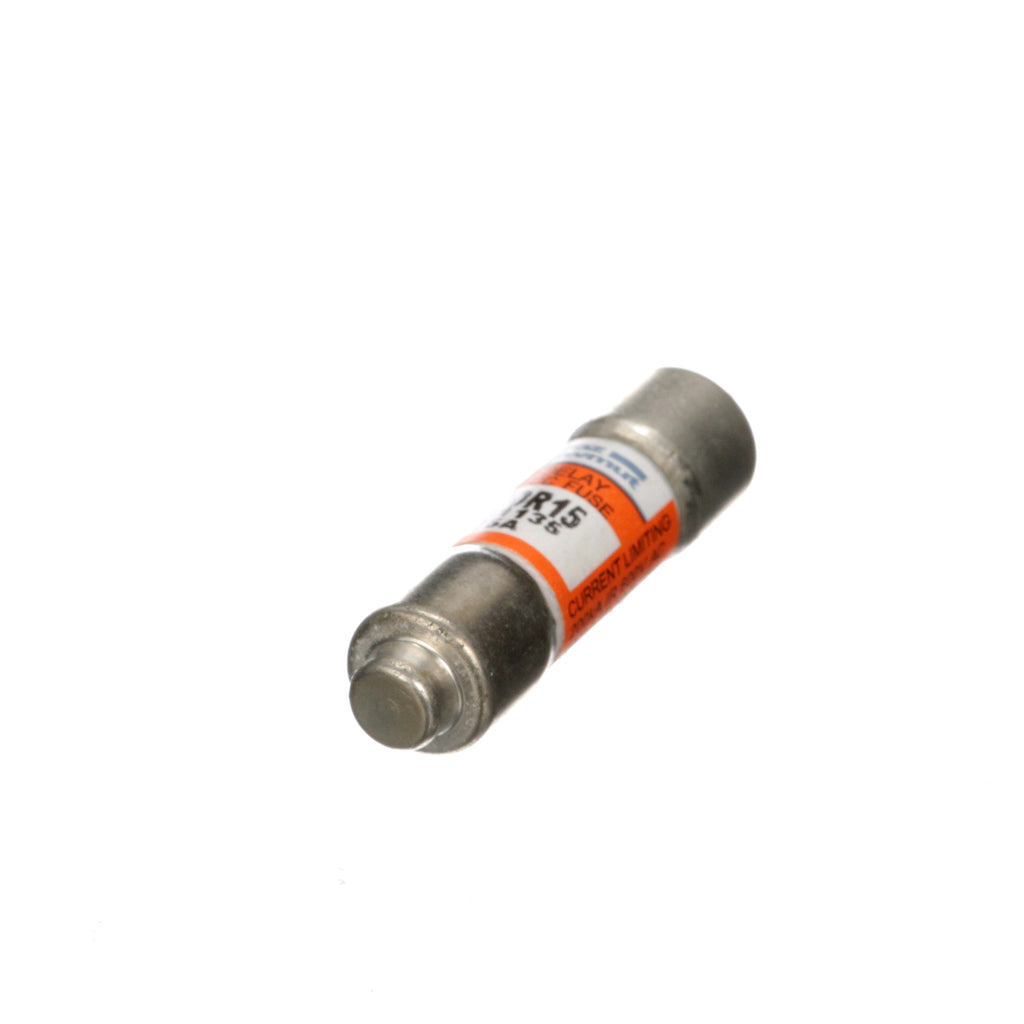

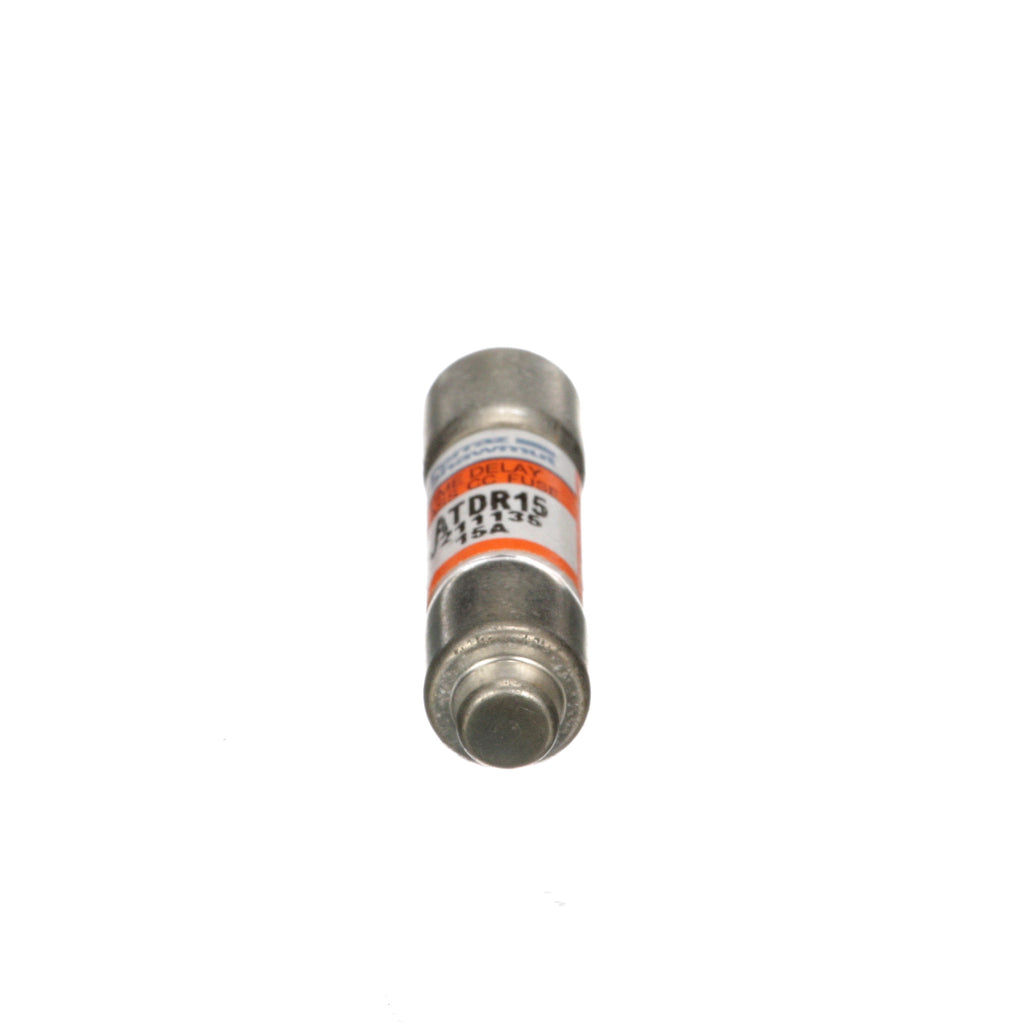

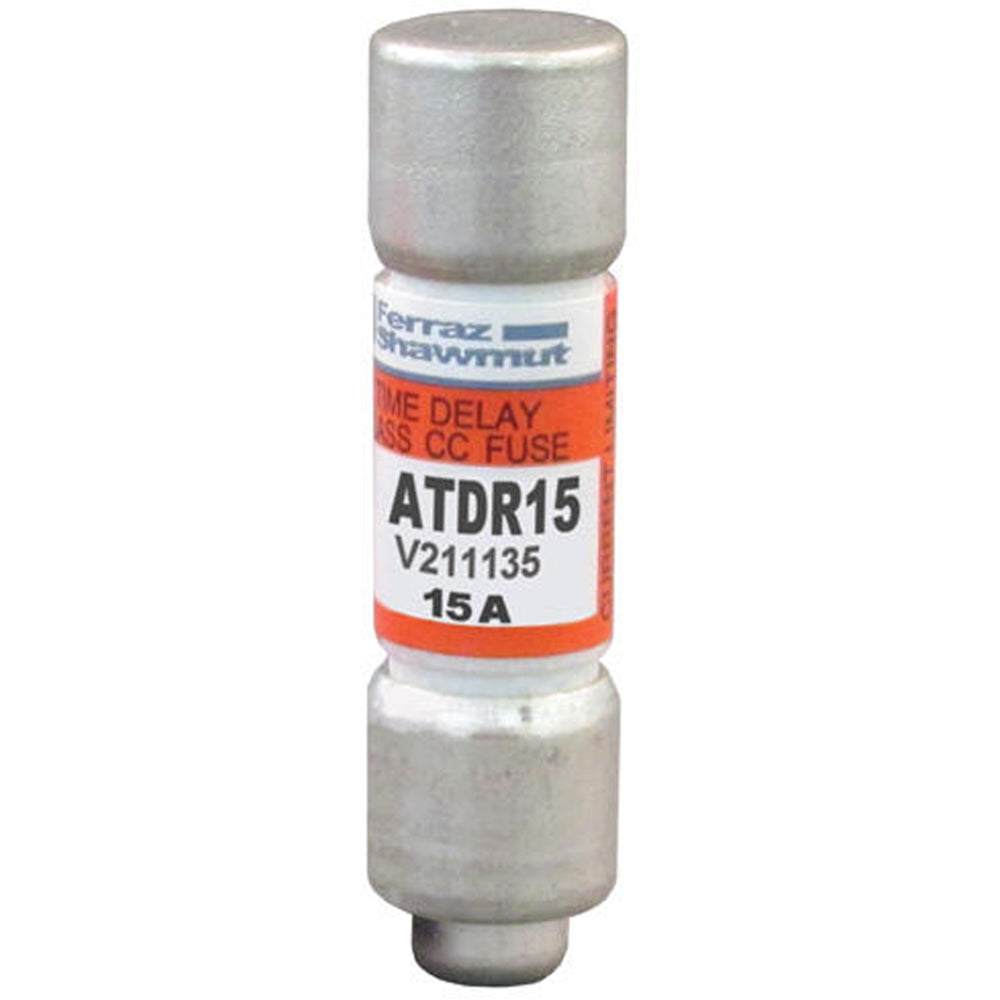

ATDR15 is a Mersen Ferraz Shawmut Class CC time delay fuse designed for small motor and branch circuit protection.This 15 amp fuse operates at 600 volts AC and 300 volts DC with a 200 kiloamp interrupt rating. It features a compact fiberglass body, ferrule termination, and clip mounting for easy installation. The fuse provides excellent time-delay characteristics to handle motor starting inrush currents and is UL and CSA certified.
- Amperage: 15A
- Voltage Rating: 600VAC / 300VDC
- Fuse Class: CC
- Speed/Characteristic: Time Delay
- Interrupt Rating: 200kA
- Mounting Type: Clip Mount
- Terminal Type: Ferrule
- Body Material: Fiberglass
- Certifications: UL Listed, CSA Certified
- Compact Size for Small Motors and Branch Circuits
Specifications
- Part Number: ATDR15
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATDR
- Voltage : 600
- Amperage : 15
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001901103
- GTIN : 00782001901103
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL/CSA
